DJ Booth Lights Setup Compact Kits for Rental Volume
LED wash bars, pixel strips, and effect lights pre-configured for facade mounting and fixed-install booths. Low power draw, tool-free mounting, and container-efficient packing make booth kits your highest-turnover setup SKU.
80–120 complete kits per 40HQ. CE · FCC · RoHS certified · 48-hour burn-in on every unit · OEM branding from 30 kits.
What a DJ Booth Lights Setup Is — And Why It Moves Faster Than Truss Rigs

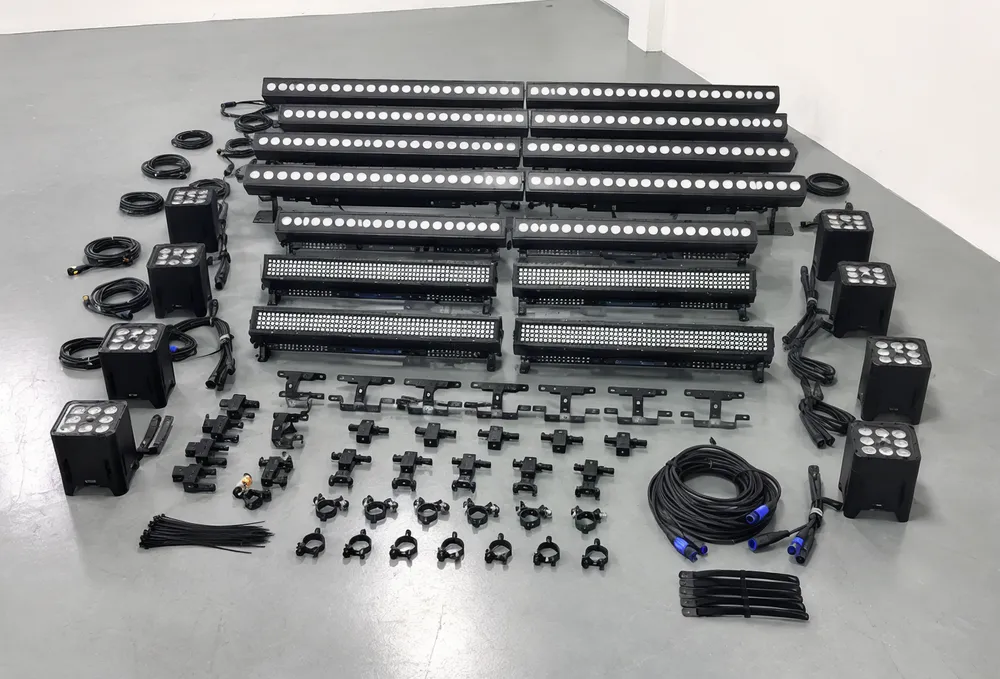

A DJ booth lights setup is a self-contained lighting package designed to mount on or behind a DJ facade — typically combining LED wash bars, compact derby or moonflower effects, pixel-mapped LED strips, and a small-format DMX controller. Total system power stays under 800W. Cable runs are short (under 5m within the booth), mounting is tool-free via clamps or adhesive magnetic channels, and the entire kit fits in a single padded carry bag or shallow flight case.
This matters commercially because booth kits occupy a different purchasing pattern than truss systems. Truss rigs sell in ones and twos to rental companies building fleets. Booth kits sell in batches of 10–50 to event companies outfitting multiple booth stations, nightclubs refitting their DJ positions annually, and online retailers serving the mobile DJ market. Your order frequency and per-shipment volume are both higher.
We ship more booth kits by unit count than any other setup category — roughly 3:1 versus truss rigs across our 2024–2025 export data.
The product addresses a specific end-user need: impressive visual output from a fixture package that one person can transport, mount in 15 minutes, and operate without DMX programming knowledge. But your commercial opportunity is in the volume dynamics — lower per-unit cost, higher reorder frequency, and a broad enough downstream market (mobile DJs, bars, small venues, event planners) that you're never dependent on a single buyer channel.
Batch Orders
Sold in batches of 10–50 units to event companies, nightclubs, and online retailers.
Higher Reorder Rate
Annual nightclub refits and growing mobile DJ market drive repeat purchasing cycles.

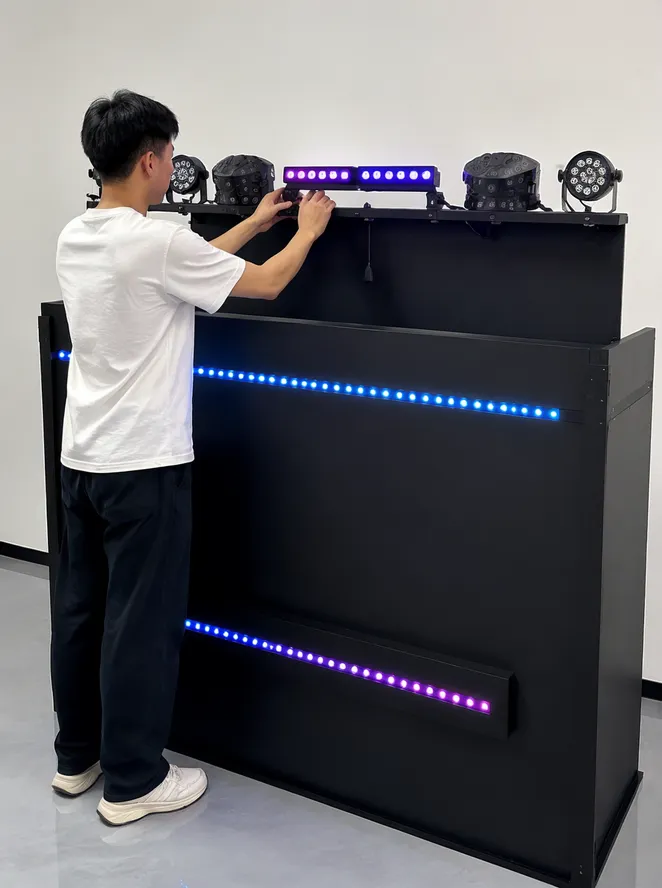

15-Min Setup
Tool-free clamps and magnetic channels — one person, no DMX programming required.
3:1 Volume Ratio
Booth kits outship truss rigs 3-to-1 by unit count in our 2024–2025 export records.
Technical Specifications for This Configuration
Standard values for this product configuration. Exact parameters may vary by kit composition. Contact us for detailed data sheets matching your requirements.
| Parameter | Specification |
|---|---|
| Typical fixture count per kit | 4–8 fixtures (configurable) |
| Fixture types included | LED wash bar, pixel strip, compact derby/moonflower, mini moving head (optional) |
| LED source (wash bars) | 12×3W or 18×3W RGBW LEDs per bar |
| LED source (pixel strips) | SMD5050 RGB, 60 LEDs/m, 1–2m sections |
| LED source (effect lights) | 4×3W or 8×3W RGBW with rotating lens assembly |
| Total system power draw | 350–800W depending on fixture count |
| DMX channels per fixture | 4 ch (basic) / 7–8 ch (extended) selectable |
| Control options | DMX-512, sound-active, master/slave, IR remote |
| Mounting method | Tool-free clamps (25–40mm), magnetic channel, velcro strips |
| Max fixture weight | 1.2–4.5 kg per unit |
| Operating voltage | 100–240V AC, 50/60Hz (universal input) |
| IP rating | IP20 (indoor standard) |
| Certifications | CE FCC RoHS |
| Noise level | Convection-cooled (silent) — no fan on fixtures under 50W |
Silent Operation by Design
Booth kits operate 30cm from the DJ's head, and fan noise at close range is the number-one complaint we hear from DJs. We designed the thermal path through the aluminum housing back panel (6mm thickness, finned exterior) so no fan is needed below 50W continuous. Convection cooling on sub-50W fixtures is deliberate engineering — not a cost-saving shortcut.
Universal Voltage — One SKU Worldwide
The universal voltage input (100–240V AC, 50/60Hz) is standard across all booth kit fixtures. We don't maintain separate 110V and 220V SKUs, which simplifies your inventory if you sell across regions. One part number covers North America, Europe, Asia-Pacific, and the Middle East without re-sourcing.
Manufacturing Process: How Booth Kits Differ on the Production Line
Booth fixtures demand different production priorities than truss-mounted stage lights. The fixtures are smaller, lighter, and operate at closer viewing distances — which means cosmetic finish tolerance is tighter and noise discipline replaces raw output as the primary engineering constraint.

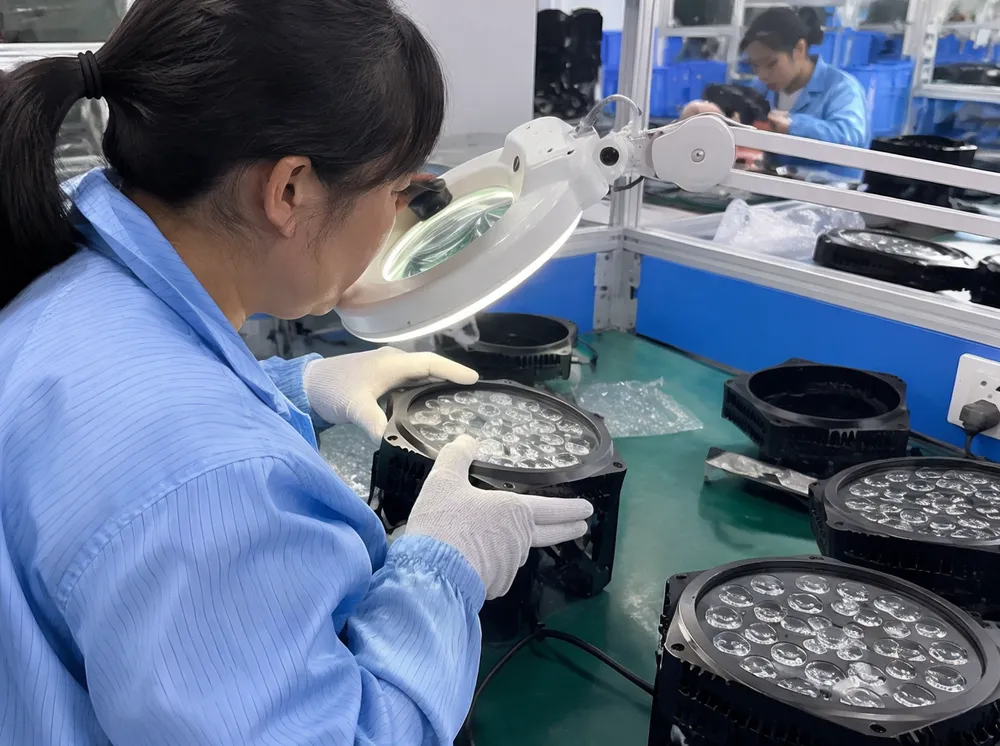

Post-Assembly Cosmetic Inspection
We run booth kit fixtures on our dedicated LED fixture SMT lines with one additional process step that stage lighting skips: post-assembly cosmetic inspection under magnification. At 30cm viewing distance (booth proximity), any housing seam gap above 0.3mm, any uneven powder coat edge, or any visible solder residue on the lens housing becomes a quality complaint.
Stage fixtures mounted at 4m on truss get a different standard. Our QC team applies a tighter cosmetic AQL (0.65 instead of the standard 1.5) on booth kit components specifically because the end user sees these fixtures at arm's length.
LED Wash Bar: CNC-Milled Lens Channel
The LED wash bars use aluminum extrusion housings that we machine in-house — each bar gets a CNC-milled lens channel that holds the optical diffuser at exactly 2mm gap from the LED array. That 2mm spacing determines the color mixing distance.
Why 2mm? Too close and you get visible LED dots instead of smooth wash. Too far and you lose 10–12% intensity. We settled on 2mm after testing seven gap distances across our diffuser materials. The 1mm option was brighter but showed color banding on white.
Pixel Strip: Cut-to-Length & Pre-Terminated
Pixel strips are soldered on a separate SMT line from discrete fixtures. We cut, terminate, and weatherproof each section to the specified length — your 1.2m booth facade doesn't get a 5m reel with a "cut here" marker.
Every strip arrives at the exact length, with pre-soldered JST connectors matched to the controller harness in that kit. This eliminates the single biggest assembly headache for your end users.
Profitable Market Segments for DJ Booth Lights Setup

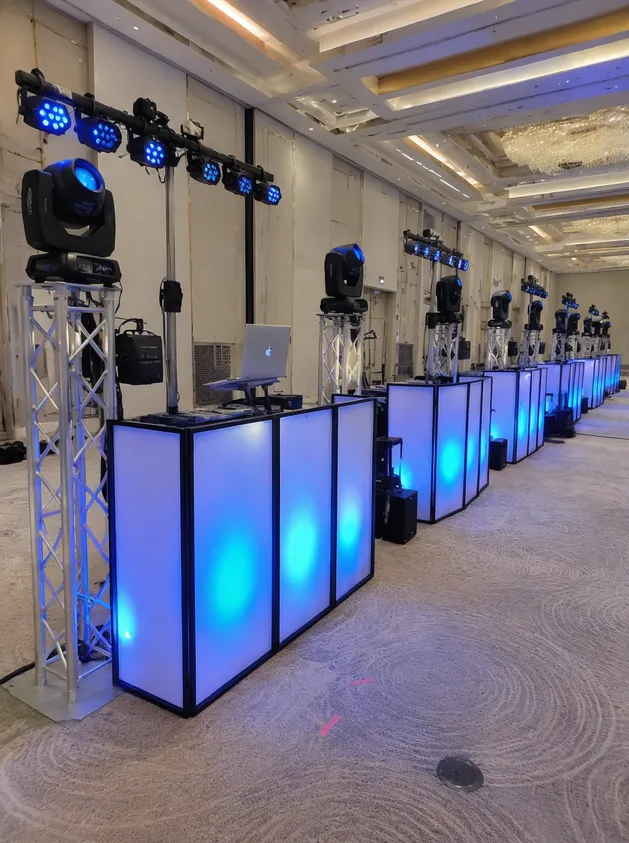

Event Rental Companies Running Parallel Deployments
Companies operating 5–20 DJ booth positions simultaneously on any given weekend. Weddings, corporate parties, milestone events — each booth needs an identical visual standard. They buy in batches of 10–20 kits, refresh annually as LEDs age past their color consistency window (typically 18–24 months at 4–6 hours daily use), and demand exact replacement availability so any kit can sub into any booth position without visual mismatch.
Your Commercial Angle
Standardized kits at volume pricing, with a guaranteed reorder cycle. Offer a standing order arrangement — quarterly shipments of 5–10 replacement kits to maintain fleet consistency. Our production continuity means the kit you order in year two matches year one's color output because we maintain the same LED bin specification.

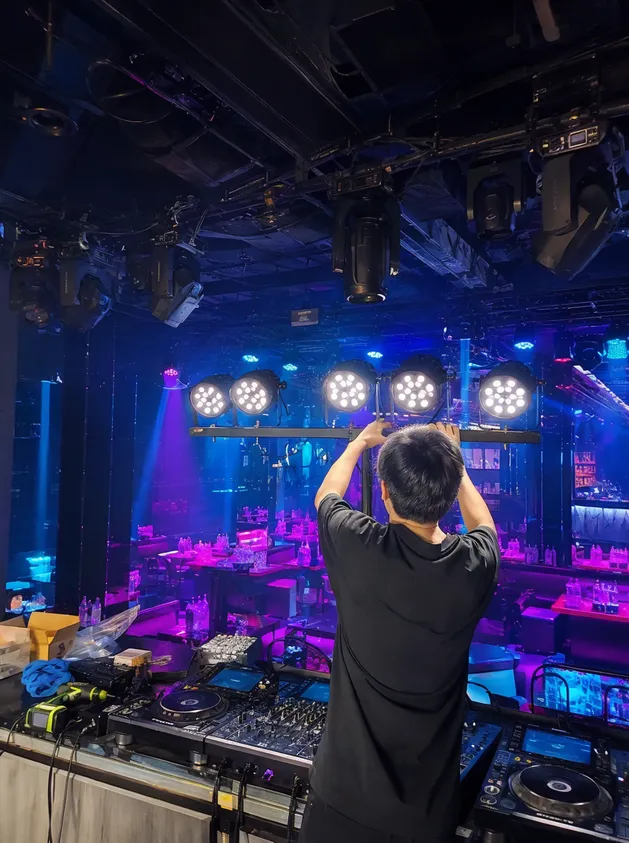

Nightclub and Bar Annual Refits
Venue operators refreshing their DJ position lighting every 12–18 months. Club lighting takes abuse — smoke machine residue, drink spills near the booth, nightly thermal cycling. Owners budget for annual replacement and typically upgrade to current-generation fixtures each cycle. A single venue needs 1–2 kits; a nightclub group operating 5–15 venues needs 10–30 kits on a single PO.
Your Commercial Angle
Position booth kits as a consumable refit line (not a one-time purchase) and build a recurring revenue channel. The annual replacement cycle is predictable budget expenditure for venue operators — align your outreach with their fiscal year refresh cycles.

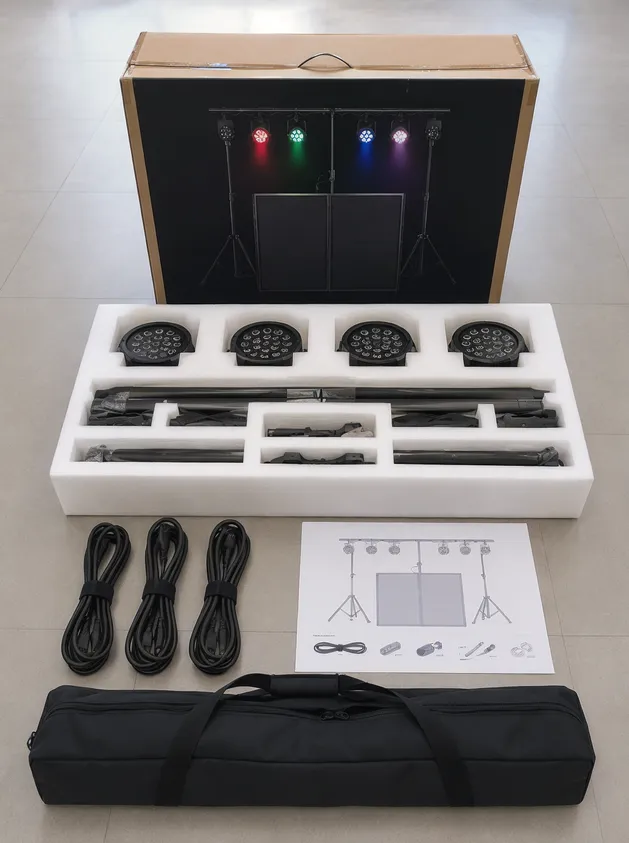

Online Retail and E-Commerce Channels
Mobile DJs buying direct from Amazon, Shopify stores, and marketplace platforms. They purchase single kits, but the aggregate volume is significant. Packaging must be retail-ready — printed cartons with product photography, unboxing-friendly foam inserts, and a quick-start guide that doesn't require a lighting degree to follow. This channel demands your lowest per-unit cost because marketplace fee structures compress margins.
Your Commercial Angle
High volume, low-touch fulfillment. Our retail-ready packaging (or your custom branded packaging on OEM orders) ships directly to FBA warehouses without repackaging. Booth kits at 3.5–7kg gross weight per unit hit favorable dimensional weight thresholds for marketplace fulfillment fees.

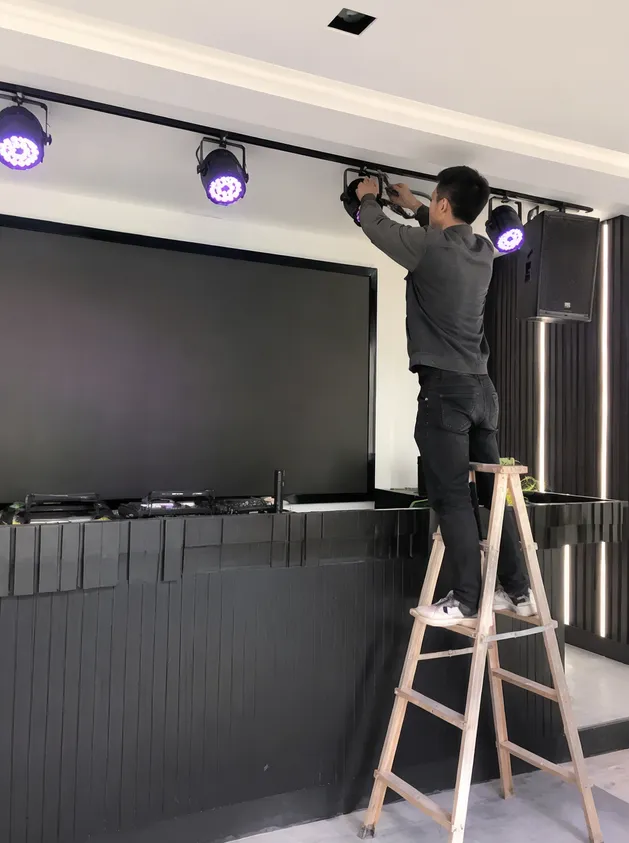

AV Contractors and System Integrators
Fixed installations in restaurants, sports bars, karaoke rooms, and small event spaces. These buyers specify booth lighting as one line item in a larger fit-out project. They need DMX compatibility with architectural lighting controllers (Art-Net bridging available as an add-on module) and clean cable management options (recessed mounting channels, right-angle XLR connectors).
Your Commercial Angle
Higher margin per unit because installation is project-priced, not commodity-priced. The integrator marks up both product and programming labor. Offering pre-programmed DMX scenes specific to their venue type saves their programming hours and justifies your premium over marketplace pricing.
Tell us which segment you're targeting
We'll recommend the right kit composition for your market and volume.
Get Kit RecommendationCustomization Options and Constraints
Booth kits are our most-customized product line because the downstream applications are diverse. Here's what we can and cannot modify.
Fixture Composition
Fully ConfigurableYou choose the mix: 2 wash bars + 2 effects + 2 pixel strips, or 4 wash bars + 4 pixel strips, or any combination from our booth-format fixture catalog. We'll recommend a composition based on your market segment, but the final mix is your call. No MOQ impact from fixture selection changes as long as total kit volume meets the 30-unit minimum.
Color Temperature
Multiple OptionsWash bars available in RGBW (color mixing) or fixed-white variants (3000K / 4000K / 5500K). Fixed-white is popular for upscale venue installs where the booth needs to match architectural lighting color. We can produce mixed kits — RGBW on the effects, fixed-white on the wash bars — within the same production run.
Housing Color
Tiered AvailabilityStandard black (matte powder coat, RAL 9005). White housings (RAL 9003) available at no additional cost on orders above 50 kits. Custom RAL colors available above 100 kits — powder line changeover takes 2 hours, so below 100 units the per-kit cost impact doesn't make sense for either of us.
For anything between 50–100 units wanting custom color, reach out and we'll quote the exact upcharge — it's usually minimal.
Mounting System
Specify at OrderStandard clamp mounts (fits 25–40mm booth frame tubes). Magnetic mounting rails available as an option for metal-facade booths. Velcro-backed mounting for fabric facades. Specify at order time — mounting hardware ships pre-attached to each fixture.
Control Protocol
UpgradeableStandard DMX-512 with included controller. Wireless DMX upgrade (CRMX-compatible transmitter/receiver pair) adds $8–12 per kit depending on quantity. Art-Net bridge module available for permanent installs requiring network control.
Packaging Format
3 OptionsPadded carry bag (standard, retail-friendly), shallow flight case (upgrade, rental-market appropriate), or bulk carton without case (lowest per-unit cost, distributor warehouse repackaging). Custom branded packaging on OEM orders — your artwork on the carry bag, flight case lid, or outer carton.
What We Can't Customize Below 500 Units
LED Chip Brand
We source from our qualified supplier list — Epistar, Cree, or equivalent. Brand-locking a specific chip manufacturer requires a dedicated reel order minimum.
PCB Layout Changes
Firmware features yes, board geometry no — that requires new tooling.
Safety-Critical Components
We won't modify power supply derating, wire gauge, or connector ratings regardless of volume — those are set to pass CE/FCC testing and they stay there.
We'll confirm feasibility and quote within 48 hours

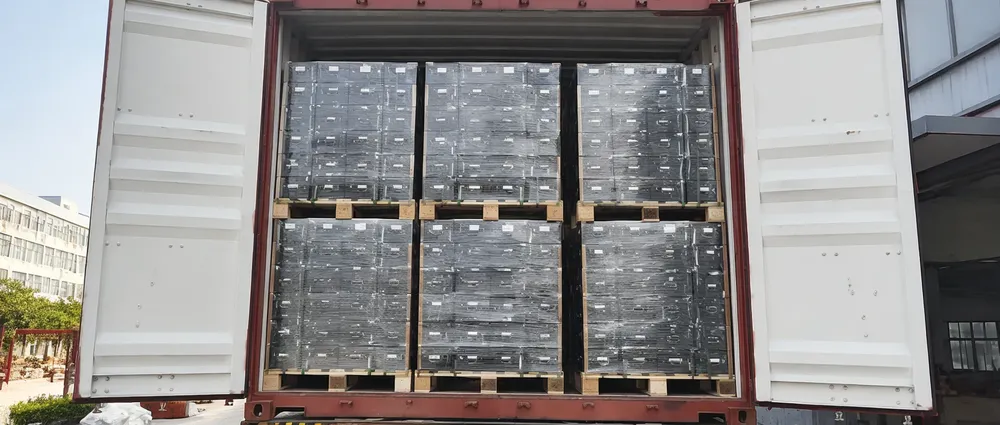

Packing Density and Container Economics
Booth kits are your most container-efficient setup product. The compact fixture sizes and absence of truss sections mean you load significantly more sellable units per container than any other setup category.
Carry-Bag Packaged
4-fixture configuration
110–120
kits per 40HQ
Flight-Case Packaged
4-fixture configuration
80–90
kits per 40HQ
Bulk Carton (No Case)
6-fixture configuration
90–100
kits per 40HQ
Booth Kits vs. Truss Setup Kits
Compare this to 24–36 complete truss setup kits in the same 40HQ. Your per-unit freight cost on booth kits runs roughly 60–70% lower than truss packages, which directly protects your landed cost and margin flexibility.
Palletizing Specifications
- Standard 1200×1000mm Euro pallets
- 4 layers per pallet for carry-bag kits
- 3 layers per pallet for flight cases
- Packing lists include per-pallet gross weights and CBM for your freight forwarder
- Loading plan arrives with your proforma invoice so you can get accurate freight quotes before committing to the order
Logistics Note Worth Knowing
Booth kit carry bags are soft-sided, which means they conform slightly under stacking load. We compensate with rigid corrugated layer boards between pallet levels.
Don't let your freight forwarder stack loose cartons of other product on top of bag-packed booth kits without the layer boards — learned this from a Southeast Asian distributor who got 15 crushed kits on a mixed-load container.
If you're shipping mixed-load containers, let us know at order time and we'll include extra layer boards at no charge.
Quality Verification Specific to Booth Kit Production
The standard 48-hour aging test and 100% inspection runs on every booth kit, same as our truss and integrated setups. But booth fixtures add two QC steps that our other lines don't require:

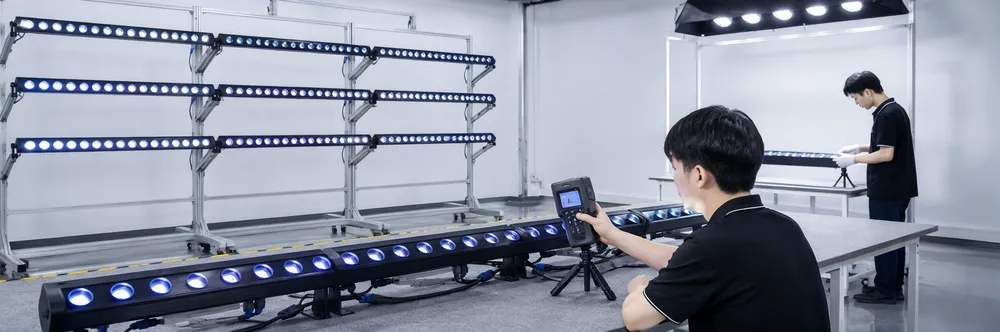

Close-Range Color Uniformity Test
Every wash bar in a kit is powered simultaneously and measured at 1.5m distance (typical booth-to-audience distance) using a handheld spectrometer.
Maximum allowable CCT deviation between bars in the same kit: ±100K
Between kits in the same production batch: ±200K
Tighter than our truss fixture tolerance (±250K) because booth lighting is viewed at shorter distance where color differences are more visible.
Silent Operation Verification
Each convection-cooled fixture is confirmed at zero audible noise at 1m distance after 4 hours of continuous operation at full output.
Any unit showing coil whine from the LED driver (a common defect in compact power supplies) gets pulled and the driver replaced.
Your DJs won't hear a high-pitched buzz through their monitors from a fixture 40cm behind their head.
"Silent operation was the specific reason they switched from their previous supplier." — feedback from two separate buyers
Cosmetic Inspection Under Studio Lighting
Every fixture housing inspected under 5000K diffused light at 30cm viewing distance.
Powder coat imperfections (orange peel, dust inclusion, edge runs) that would pass on a stage fixture are flagged on booth units.
AQL 0.65 on cosmetics versus our standard 1.5 on stage fixtures.
These additional QC steps add roughly half a day to production throughput per batch — worth it because booth kit returns due to cosmetic rejection or noise complaints cost you far more than the production time.
Compliance and Downstream Market Risk Reduction
Your booth kits ship with CE, FCC, and RoHS documentation. Specific compliance considerations for this product type:
Electrical Safety
EN 60598 / UL 1573
Booth fixtures operate at close proximity to people and behind enclosed facades where ventilation is limited. Our thermal design is validated for continuous operation in a 45°C ambient environment (enclosed booth worst-case).
Class II double-insulated construction on all fixtures under 100W eliminates the earth continuity requirement for installations where the booth frame isn't reliably grounded.
EMC Compliance
EN 55015 / FCC Part 15 Class B
DJ booths sit next to audio equipment — conducted and radiated emissions must stay below limits to prevent audible interference through the DJ's mixer.
Our booth fixtures are tested to Class B (residential/commercial) limits, which is stricter than Class A (industrial). Your DJs don't get buzzing through their sound system when the lights are running.
RoHS / REACH
EU Import Ready
Full material declarations available for EU import. All LED phosphors, solder, PCB substrates, and powder coat formulations comply with the current restricted substances list.
We provide a consolidated compliance pack (CE cert, EMC test report, RoHS declaration, REACH SVHC disclosure) per production batch — your import documentation is ready without chasing multiple documents.
Fire Safety Note
Surface Temperature Rating
LED booth fixtures draw low enough wattage (under 50W per unit) that they don't typically trigger fire safety assessment requirements in most jurisdictions.
If your market has specific requirements for lighting equipment near combustible DJ facade materials, our fixtures carry a surface temperature rating below 85°C at any accessible point after 4 hours continuous operation — well within the ignition threshold of standard fabric and acrylic facade materials.
Need compliance documentation for a specific market? Contact us with your destination country and we'll confirm coverage or outline what additional testing may be required.
How This Product Fits Within Our DJ Lights Setup Range
The DJ booth lights setup is one of three configurations under our DJ lights setup product line. Here's how they position against each other — not as better or worse, but as different tools for different buyer channels:
| Dimension | DJ Booth Lights Setup | DJ Lighting Truss Setup | DJ Lights & Speakers Setup |
|---|---|---|---|
| Primary buyer channel | Event rental (volume), nightclub refit, online retail | Rental companies (professional tier), mobile DJ operators | One-operator shows, entry-level DJ market |
| Typical kit complexity | 4–8 compact fixtures, no rigging | 6–12 fixtures on aluminum truss, crank stands | Fixtures + powered speakers + controller |
| Total system power | 350–800W | 900–3,200W | 500–1,500W (combined audio + light) |
| Per-unit landed cost tier | Lowest | Highest | Mid |
| Container density (40HQ) | 80–120 kits | 24–36 kits | 40–60 kits |
| Reorder cycle | Annual (venue refit) / Quarterly (fleet expansion) | Semi-annual | Annual |
| MOQ (OEM) | 30 kits | 30 kits | 30 kits |
DJ Booth Lights Setup
- Buyer channel
- Event rental, nightclub refit, online retail
- Kit complexity
- 4–8 compact fixtures, no rigging
- System power
- 350–800W
- Landed cost tier
- Lowest
- Container density (40HQ)
- 80–120 kits
- Reorder cycle
- Annual / Quarterly
- MOQ (OEM)
- 30 kits
DJ Lighting Truss Setup
- Buyer channel
- Rental companies (pro tier), mobile DJ operators
- Kit complexity
- 6–12 fixtures on truss, crank stands
- System power
- 900–3,200W
- Landed cost tier
- Highest
- Container density (40HQ)
- 24–36 kits
- Reorder cycle
- Semi-annual
- MOQ (OEM)
- 30 kits
DJ Lights & Speakers Setup
- Buyer channel
- One-operator shows, entry-level DJ market
- Kit complexity
- Fixtures + powered speakers + controller
- System power
- 500–1,500W (combined audio + light)
- Landed cost tier
- Mid
- Container density (40HQ)
- 40–60 kits
- Reorder cycle
- Annual
- MOQ (OEM)
- 30 kits
Overhead-mounted fixtures on truss?
Our DJ lighting truss setup package covers professional-tier rigging with TÜV-rated joints and half-coupler clamps.
All-in-one audio-visual package?
Our DJ lights and speakers setup combines powered speakers with sound-reactive lighting in a two-case system.
The gateway product in your lineup
The booth kit sits in the sweet spot of volume and simplicity. It's the gateway product that your downstream buyers purchase first — and once they're operating with your booth kits, they upgrade to truss systems and integrated packages as their event business scales.
Frequently Asked Questions DJ Booth Lights Setup
What LED wattage per fixture works best for a standard 1.5m DJ booth facade?
What LED wattage per fixture works best for a standard 1.5m DJ booth facade?
For a facade 1.5m wide at typical 2–3m throw distance to the dance floor, 12×3W RGBW wash bars deliver sufficient output without overwhelming a small venue. Two bars across the top of the booth plus two compact effect fixtures gives full coverage.
Going above 18×3W per bar creates more output than a 100-person venue can use and pushes power draw past the point where silent convection cooling is feasible — you'd need active fans, which adds noise.
We default to the 12×3W configuration for standard booth kits and reserve 18×3W for larger facade builds (2m+) or outdoor booths where throw distances are longer.
How do I prevent LED pixel strips from failing after 3–6 months in a nightclub environment?
How do I prevent LED pixel strips from failing after 3–6 months in a nightclub environment?
Strip failure in venue installs is almost always caused by two things: inadequate heat dissipation (strips stuck directly onto non-metallic surfaces) and solder joint stress from thermal cycling.
Our booth kit pixel strips come pre-mounted on aluminum channel extrusions with thermal adhesive backing — this moves heat away from the LED junctions and into the channel, extending lifespan from the typical 8,000 hours (bare strip) to 25,000+ hours. The aluminum channel also provides mechanical rigidity, so solder joints don't flex during thermal expansion cycles.
If your buyers are doing permanent installs, specify our channel-mounted strips rather than bare flexible strips — the per-meter cost is 30% higher but the replacement cycle extends 3×.
Can DJ booth lights setup kits run on battery power for outdoor booths without mains access?
Can DJ booth lights setup kits run on battery power for outdoor booths without mains access?
Yes, but with constraints. A 4-fixture booth kit drawing 350W at full output requires a 1kWh battery pack for approximately 2.5 hours of continuous use (accounting for inverter efficiency losses).
We don't manufacture battery packs, but we can configure kits with fixtures optimized for battery operation:
- Lower-wattage wash bars (8×3W instead of 12×3W)
- PWM dimming curves tuned for power efficiency rather than maximum output
- A master dimmer that automatically limits total draw to stay within battery capacity
Specify "battery-compatible configuration" when ordering and we'll adjust the fixture selection accordingly.
What's the MOQ for OEM-branded DJ booth lights setup kits with custom packaging?
What's the MOQ for OEM-branded DJ booth lights setup kits with custom packaging?
30 complete kits is our minimum for OEM orders. That gets you:
- Custom logo on fixture housings (pad printing)
- Your brand on the carry bag or flight case
- Your product photography on the outer carton
Custom foam insert shapes (for different kit compositions) start at 50 kits. Fully custom packaging design (unique carton dieline, custom bag pattern) starts at 100 kits.
Most new buyers test with 30–50 units to validate market response, then scale to 200–500 kits on reorders.
How should I specify color temperature when buying booth kits for the wedding and corporate event market?
How should I specify color temperature when buying booth kits for the wedding and corporate event market?
For wedding and upscale corporate, RGBW fixtures set to warm white (2700–3200K) are your default. But a better approach for that segment: order kits with both RGBW wash bars (for color versatility) and dedicated warm-white pixel strips (3000K fixed).
The wash bars handle the dance floor color moments; the warm-white strips stay on for the cocktail-and-speeches portions. This dual-configuration lets your end users handle both event phases without needing a lighting operator to reprogram mid-event.
We can pre-program the included controller with separate "ceremony warm" and "party color" scene banks — specify at order time.
Next Step: Sample a Booth Kit For Your Market
Most buyers evaluating DJ booth lights setup start with a 1–2 unit sample order. Pick your preferred fixture composition — or describe your target end-user and we'll recommend one — and we'll ship a production-representative sample within 7–10 days.
Sample
Test the build, check cosmetics at close range, run it for a weekend, and confirm it fits your market positioning.
7–10 days
Production Run
When sample approval is done, your first production run ships within 25–30 days.
25–30 days
OEM Branding
OEM variants with your branding add 5–7 days for artwork confirmation and print setup.
+5–7 days
Reach Out With:
We'll come back with a detailed specification, FOB pricing, and a 40HQ loading plan within 48 hours.
Teresa@gdmonkey.com | WhatsApp +86-135 3966 9939
