Mini Moving DJ Lights Lightweight. Low-Cost. High-Volume.
Under 4 kg per fixture, 30W to 100W LED, full DMX control. The price point and shipping economics that make container-load orders profitable.
What Mini Moving DJ Lights Are — and Why They Move in Volume

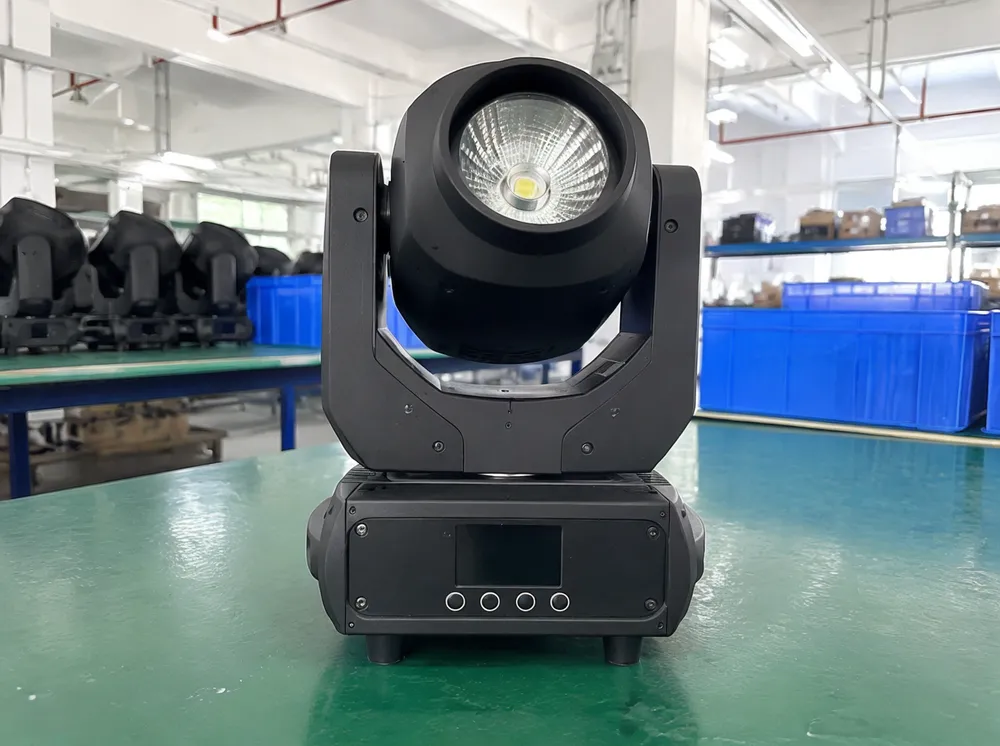

Mini moving DJ lights are compact motorized fixtures — typically under 4 kg body weight with 30W to 100W LED sources — that deliver pan/tilt movement, gobo projection, and color mixing in a form factor small enough for a mobile DJ to carry in one hand. They're the entry point into moving head technology for price-sensitive buyers, and that makes them the highest-volume SKU in most DJ equipment distributors' catalogs.
The commercial logic is straightforward: low unit cost, low shipping weight per fixture (which directly reduces your per-unit freight expense), and a retail price point that doesn't require your downstream customer to agonize over the purchase. Mobile DJs buying their first moving heads, e-commerce resellers building Amazon or Shopify storefronts, entertainment equipment rental startups building initial inventory — these buyers are all shopping on price-per-feature, and small moving DJ lights hit the sweet spot.
We've been manufacturing mini moving heads since 2014 — they were actually one of our earliest product lines, evolving directly from the compact entertainment lighting we started with in 2012. Our motor heritage from electromechanical assemblies meant we already understood how to build reliable pan/tilt mechanisms in small, heat-constrained enclosures. That's not a trivial problem when you're cramming a stepper motor, gear train, LED driver, and 60W heat load into a housing the size of a coffee mug.
Under 4 kg
Low shipping weight per fixture directly reduces per-unit freight expense
Price-Per-Feature Sweet Spot
Retail price point that doesn't require downstream customers to agonize over the purchase
Manufacturing Since 2014
Motor heritage from electromechanical assemblies — reliable pan/tilt in heat-constrained enclosures
Who's Buying at Volume
Mobile DJs
Buying their first moving heads — entry point into motorized fixtures
E-commerce Resellers
Building Amazon or Shopify storefronts around competitive price points
Rental Startups
Building initial inventory for entertainment equipment rental businesses
Technical Specifications — What You're Quoting to Your Buyers
These are spec-sheet values your sales team can hand directly to customers or load into your e-commerce listings. If you need IES photometric data for venue design specifications, we provide those on request.
| Parameter | Typical Specification |
|---|---|
| LED Source | 30W / 60W / 100W high-brightness LED (RGBW or white + color wheel) |
| Beam Angle | 12°–15° (spot mode), adjustable via focus |
| Pan Range | 540° |
| Tilt Range | 230° |
| Pan/Tilt Speed | Full pan in 2.5s, full tilt in 1.8s |
| Color System | 7-color wheel + white, or RGBW mixing (model dependent) |
| Gobo System | 7 fixed gobos + open, indexable on select models |
| Dimming | 0–100% linear, electronic |
| Strobe | 1–20 Hz |
| Control | DMX-512, sound-activated, master/slave, auto-run |
| DMX Channels | 9/14 channel modes |
| Housing Material | ABS engineering plastic (30W–60W) / aluminum alloy (100W) |
| Weight | 2.5 kg (30W) / 3.2 kg (60W) / 3.8 kg (100W) |
| Dimensions (typical) | 180 × 160 × 280 mm (varies by model) |
| Power Input | AC 100–240V, 50/60Hz |
| Operating Temperature | -20°C to +40°C |
Specifications shown are standard configurations across our mini moving head range. Exact parameters vary by model. Contact us for detailed product data sheets and photometric files.
Need Detailed Data Sheets?
We provide full product data sheets and IES photometric files for venue design specifications on request.
Request Detailed Spec SheetsContainer Loading & Freight
Shipping Economics — Where Mini Moving Heads Protect Your Margin
Here's where mini moving DJ lights differ fundamentally from full-size beam or wash heads as a business proposition: the freight math.

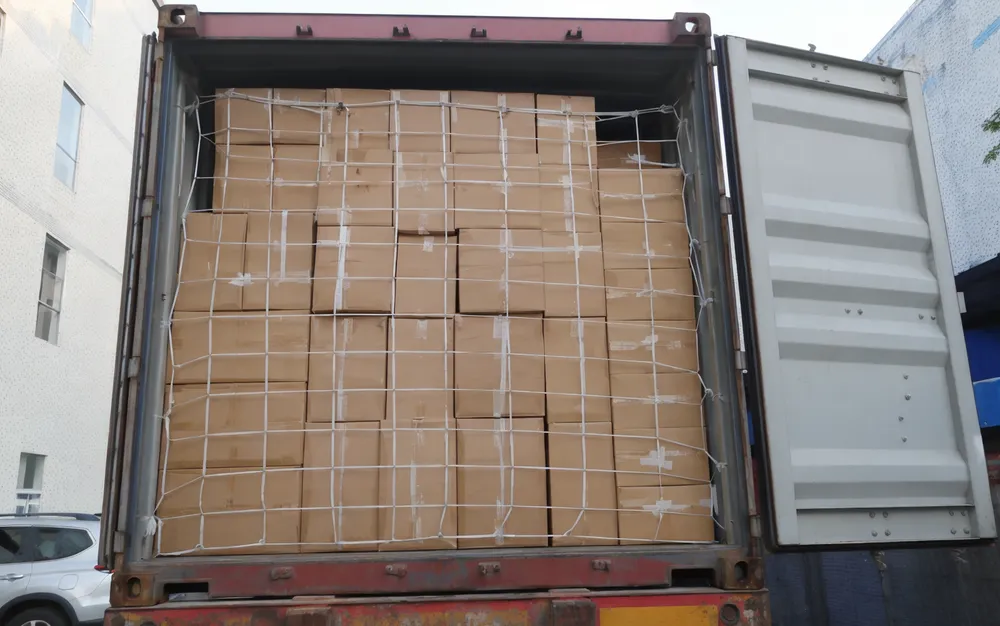

20GP Container Unit Density
A standard 20GP container holds approximately 320 mini moving head units — compared to 150–220 units for standard beam fixtures or 80–120 for full-size wash heads. That's nearly double the unit density of mid-range fixtures in the same container volume.
Your per-unit shipping cost drops accordingly, which means more of the retail margin stays in your pocket rather than going to the freight forwarder.
Air Freight Viability
At 2.5–3.8 kg per fixture, you're well under volumetric weight thresholds for air freight on urgent restock orders.
We've had e-commerce distributors air-ship 50-unit restocks for Amazon FBA when a listing sells faster than expected — the air freight cost on a 3 kg fixture is manageable. Try that with a 15 kg beam head.

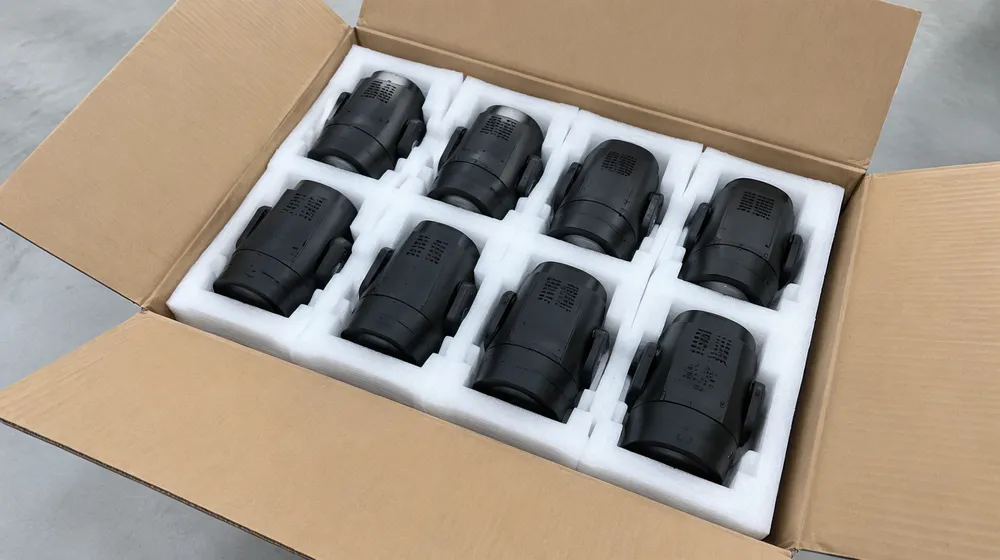

Master Carton Packing
We pack 8 mini moving heads per master carton in individual molded foam cradles. Master carton dimensions are optimized for standard pallet stacking — no wasted cubic space, no overhang that prevents double-stacking.
Warehouse Receiving
Your warehouse receiving team gets uniform cartons that stack cleanly on racking. No irregular shapes, no special handling — straightforward pallet-in, pallet-out operation.
Mixed-Model Loading
For mixed-model container orders, mini heads fill the upper tier of the loading plan — light units on top of heavier beam and wash heads — maximizing your total container utilization across the range.
Engineering Deep-Dive
The Miniaturization Problem We Solved — Pan/Tilt in a Thermal Box
Building a reliable moving head at under 4 kg creates an engineering conflict: the motor mechanism needs rigidity and heat tolerance, but the housing needs to stay small and light.
The Industry Shortcut
Most factories resolve this by using undersized motors and plastic gear sets — the fixture weighs less, but the mechanism wears out in 6–12 months of regular use. We took a different path.
Hybrid Gear Train Design
Our mini moving head pan/tilt uses a steel worm gear on the pan axis and reinforced nylon composite gears on the tilt — materials selected for specific load profiles rather than universal cost-cutting.
The pan axis carries the full head weight during rotation and needs metal-on-metal contact for durability under continuous load.
The tilt axis carries lower static load and benefits from the nylon composite's self-lubricating properties and vibration dampening.
We tested all-metal gear trains in the mini format early on and rejected them — the added weight pushed body mass past 4.5 kg, which killed the freight advantage, and the metal-on-metal noise was audible in quiet venue environments. The hybrid approach gives us the durability numbers without the weight or acoustic penalty.
Motor Thermal Management
Motor thermal management in a compact housing is the other half of this problem. Our stepper motors are rated for continuous duty at 65°C ambient — above that, torque derates.
The Thermal Challenge
In a small enclosed housing with an LED source generating heat nearby, ambient temperature around the motor can reach 55–60°C during sustained operation.
Our Solution

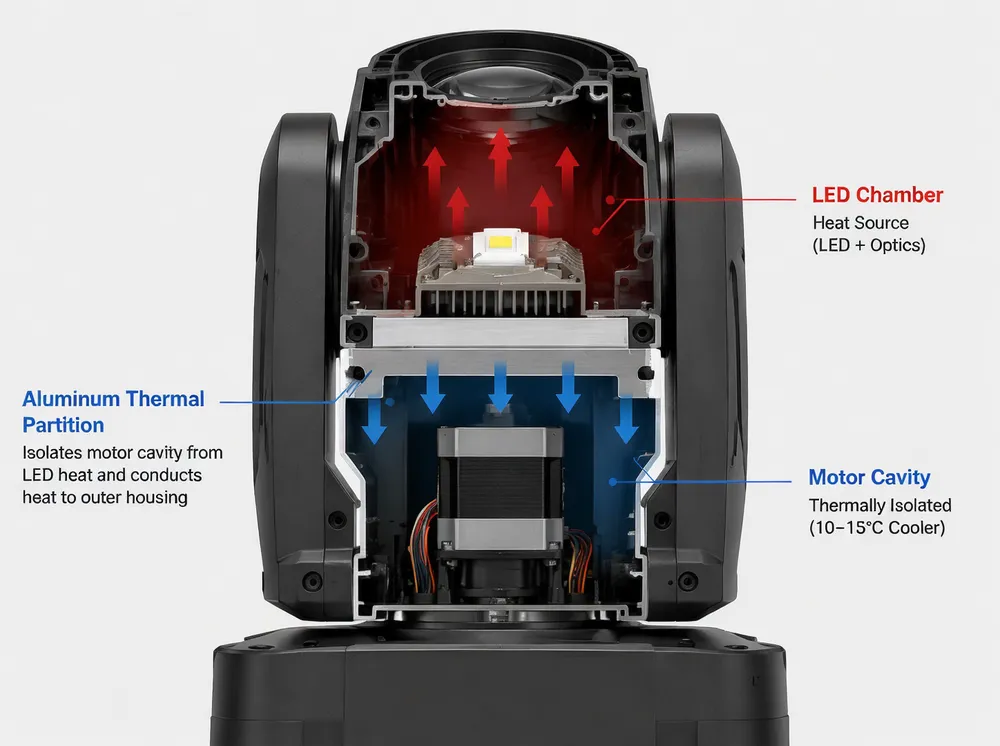

We thermally isolate the motor cavity from the LED chamber with an aluminum partition that also acts as a conductive bridge to the external housing surface, keeping motor compartment temperature 10–15°C below the LED chamber.
Result: Full Positioning Torque, Sustained
Full positioning torque even after hours of continuous operation in hot venue environments. This is the engineering that separates mini moving DJ lights that survive 2+ years of rental use from the ones that start drifting after a summer season.
Market Segments That Drive Mini Moving Head Volume
Understanding who buys these fixtures — and how they buy — shapes everything from your MOQ strategy to your listing copy. Four distinct buyer profiles drive container-level demand.

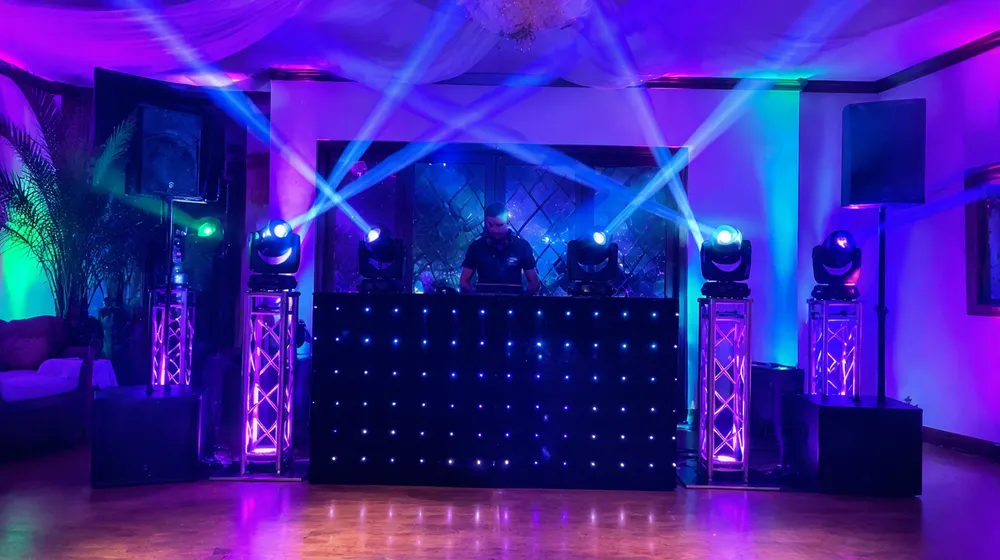

Mobile DJ Distribution
Your Highest-Velocity SKU
Mobile DJs are the primary end market for mini moving heads, and they buy differently from other lighting segments:
- Purchase in sets of 2, 4, or 8 units
- Upgrade or expand every 12–18 months
- Shop on price-per-feature through online retailers, local DJ shops, and Amazon
- Brand-loyal to whatever their first set came from — if those lights work, the next set is the same brand
For your distribution business, this means: high transaction frequency, predictable reorder cycles, and sticky customers. Volume per transaction is modest (2–8 units per end buyer), but total throughput across hundreds or thousands of DJ buyers adds up to container-load annual demand.
Mini moving heads are your traffic-building SKU — the listing that drives store visits and cross-sells into higher-margin beam and wash fixtures.

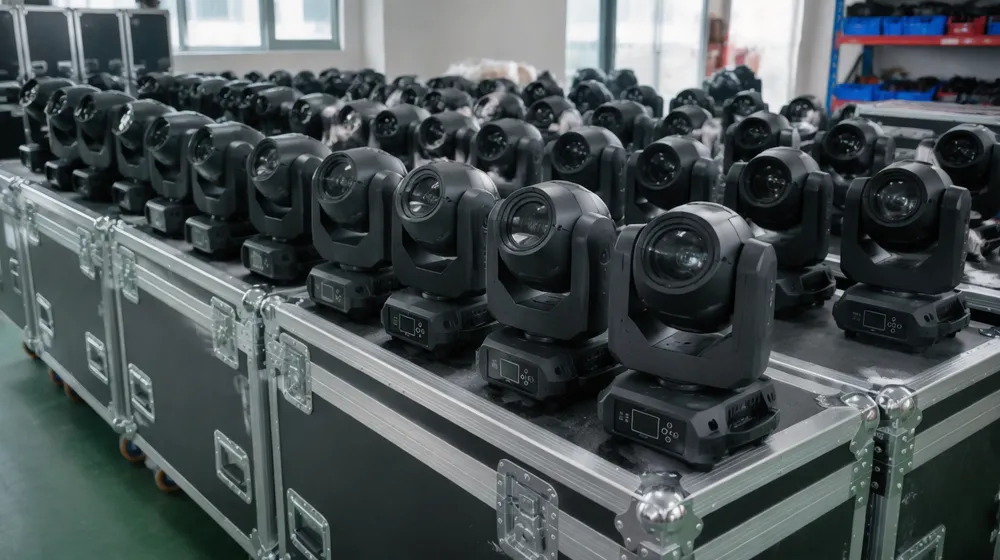

Entertainment Startups & Rental Fleet Builders
New rental companies and event startups have tight capital budgets and need maximum visual impact per dollar invested. Mini moving heads give them motorized, DMX-controllable effects at a fraction of beam head pricing.
These buyers order 10–30 units for initial fleet buildout, then reorder in matching batches as they win more gigs.
Your 30-unit MOQ aligns perfectly with this buyer's first purchase — they get fleet-level pricing from day one without overcommitting capital on a 200-unit order they can't deploy yet.
E-Commerce Resellers
Amazon, Shopify, Regional Platforms
Small moving DJ lights are ideally suited for e-commerce:
- Shippable by standard parcel (under 5 kg boxed)
- Photographable in a small studio
- Priced within impulse-purchase range for semi-professional buyers

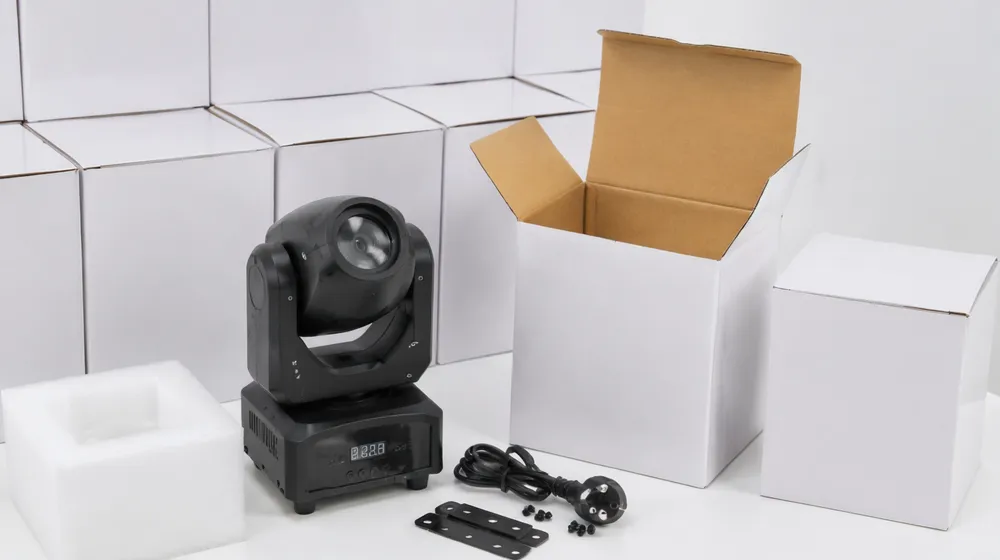

E-commerce resellers need consistent supply, white-label packaging options, and product imagery. We support all three — your brand on the box, high-resolution product photos provided, and steady production availability so you don't go out-of-stock mid-campaign.

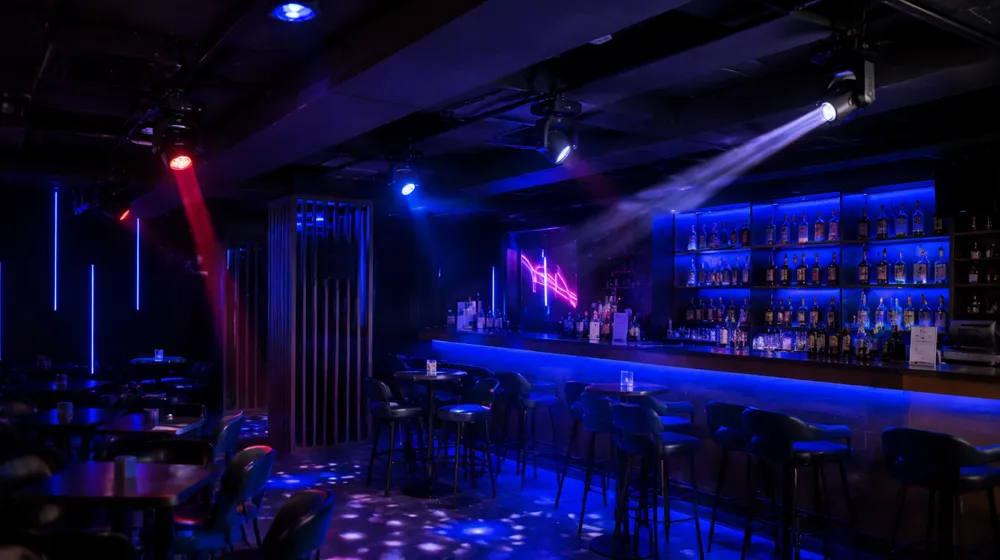

Small Venue Permanent Install
Bars, Karaoke, Lounges
Bars and entertainment venues installing 4–8 moving heads on ceiling mounts represent a stable, repeating project segment.
The fixtures run on auto-mode or sound-activation (no dedicated lighting operator), so reliability over thousands of hours of unattended use is the key requirement.
Our 48-hour aging protocol is specifically designed to qualify fixtures for this duty cycle — identifying infant-mortality failures before they reach your customer's ceiling.
Which segment drives your volume? We'll tailor pricing and packaging to match your channel.
Discuss Volume PricingCustomization Scope — What You Can Spec on a Mini Moving Head Order
OEM Branding
30-unit MOQ- Housing logo: pad printing or laser engraving on top cover
- Boot screen: your brand name/logo displayed on LCD during power-up
- Packaging: full custom retail box with your design, or plain brown export carton with your label
- Documentation: user manual with your branding and contact information
Product Configuration
100-unit MOQ- LED wattage: 30W, 60W, or 100W source selection
- Color system: 7-color wheel (simpler, lower cost) or RGBW pixel mixing (more versatile)
- Gobo library: standard 7-gobo set or custom gobo selection (cut in-house)
- Housing color: standard black, or custom color at 200+ units (white and silver common for worship venues)
- Voltage: auto-switching 100–240V (standard) or fixed-voltage for specific markets
- Connector: standard 3-pin XLR, or 5-pin XLR for professional install markets
ODM Custom Development
200-unit min + engineering- Modified beam angle or optical system
- Wireless DMX integration (W-DMX or custom protocol)
- Custom housing geometry or material changes
- Additional control features (Bluetooth app control, IR remote)
A note on housing color economics:
For housing color changes below 200 units, the economics don't work — we'd burn a half-day changeover on the paint line for a short run. Above 200, the per-unit changeover cost becomes negligible. We'll tell you honestly where the cost breaks fall.
OEM Variants (Existing Platforms)
Full ODM Custom Development
Ready to spec your custom order? Send your OEM/ODM requirements and we'll return a sample timeline within 24 hours.
Send Your RequirementsQuality Verification — How Mini Moving Heads Get Tested Before Shipping
Every mini moving head we produce — not a batch sample, every single unit — passes through our standard verification sequence before it leaves the factory floor.

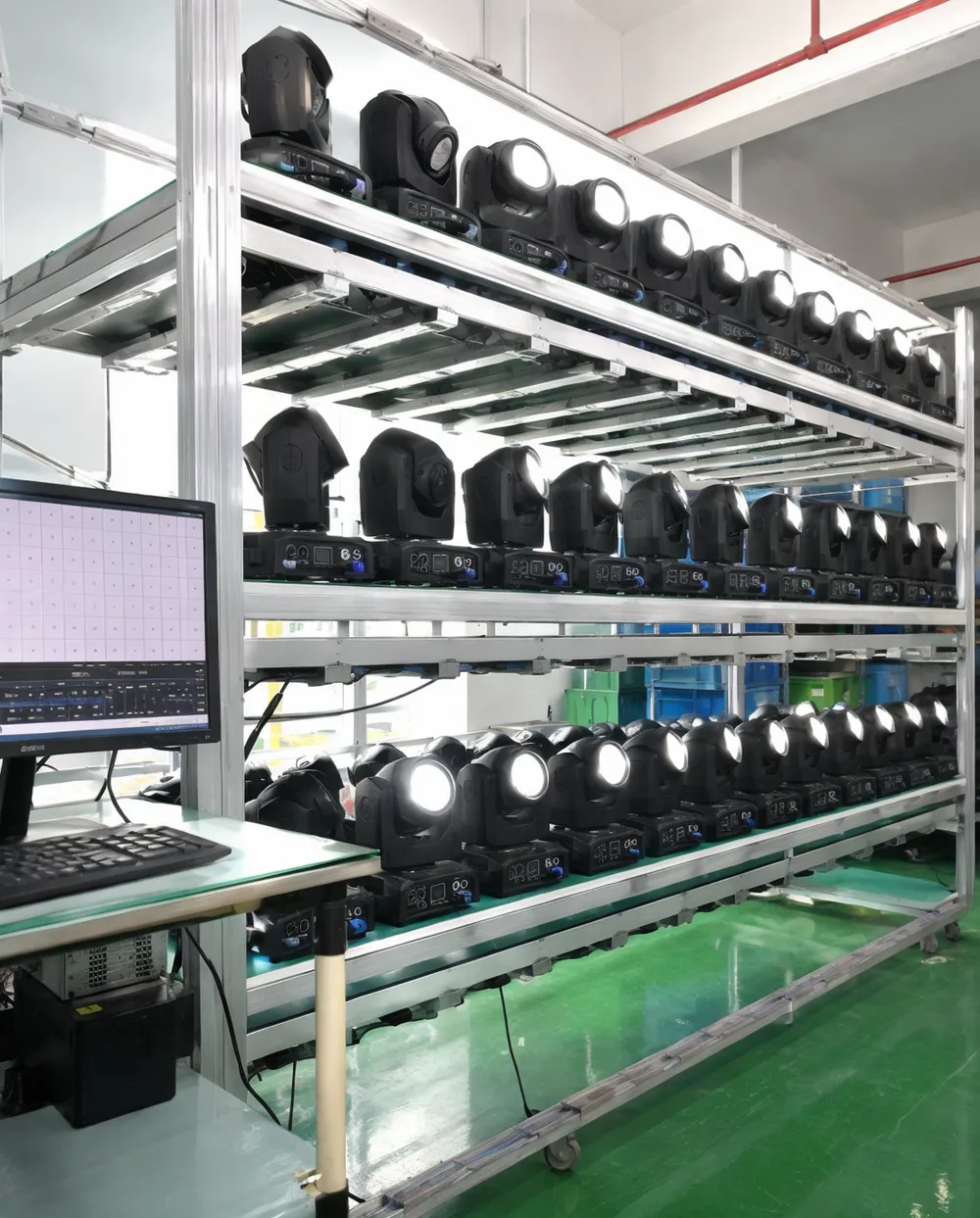

48-Hour Aging Test
Full electrical load, continuous pan/tilt cycling, color wheel rotation, DMX response monitoring. Running at full brightness for 48 hours in our aging racks subjects the LED junction, driver board, motor coils, and power supply to sustained thermal stress.
Infant mortality failures — capacitor drift, LED forward voltage shift, motor coil overheating — surface here, not in your customer's gig bag six months later.
Why 48 hours matters for minis: The compact housing creates higher internal temperatures than full-size fixtures — thermal failures are more likely in this form factor, which makes burn-in testing more important, not less. We've caught power supply capacitor failures at hour 30–40 that never would have surfaced in a 10-minute end-of-line check.
That's one fixture caught here versus one warranty return from Sydney or São Paulo — the cost difference is obvious.
100% Functional Verification Post-Aging
- DMX response across all channels and both channel modes
- Color mixing accuracy against calibrated reference
- Dimming curve linearity 0–100%
- Pan/tilt speed, accuracy (±0.5° positioning), and return-to-home consistency
- Gobo indexing precision
- Strobe frequency accuracy
AQL Cosmetic & Packaging Inspection
Housing finish quality, lens clarity, connector pin condition, packaging integrity, labeling accuracy, accessory completeness (mounting bracket, power cable, XLR cable, manual).
48h
Burn-in Duration
100%
Units Tested
±0.5°
Position Accuracy
Compliance Documentation for Your Import Markets
Mini moving DJ lights ship with standing certifications covering major import markets. All test reports and declarations of conformity are included with your shipment documentation.
CE (EMC + LVD)
EU electromagnetic compatibility and electrical safety
Direct EU import, no third-party re-testing required.
FCC Part 15
North American EMC compliance
No FCC hold risk at US/Canada ports of entry.
RoHS
Restricted hazardous substances
Meets EU/UK materials directives.
ISO 9001:2015
Factory quality management system
Supplier qualification documentation available.
Additional Market Certifications
If your target market requires additional certifications (UL listing for commercial install in certain US jurisdictions, for example), we coordinate with your preferred test lab to complete the filing.
Our engineering team prepares the technical file and handles lab communications — you don't need to manage the back-and-forth between your supplier and the testing agency.
For E-Commerce Sellers
CE and FCC marks are printed directly on the product housing and packaging. Amazon and other platform compliance checks clear without issues.

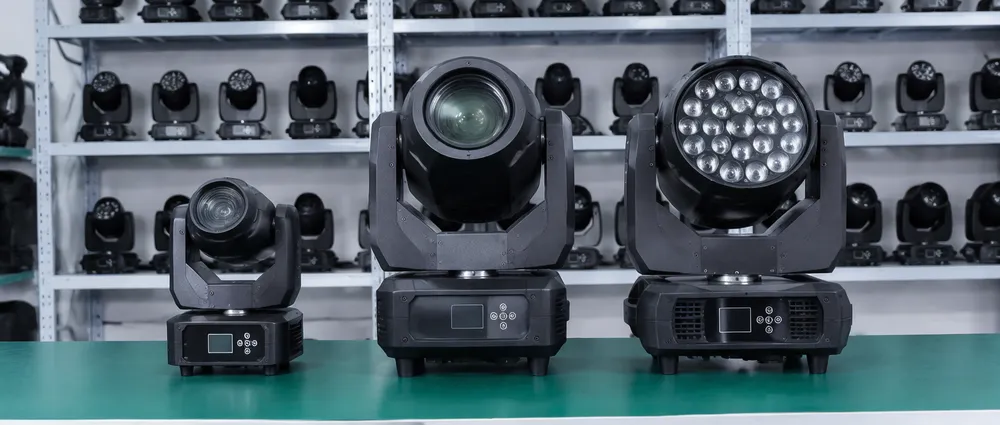

How Mini Moving Heads Fit Against Other Moving DJ Lights in Your Catalog
Mini moving DJ lights serve a specific price tier and buyer segment. Here's how they position relative to sibling products in the GDMonkey moving head range:
| Consideration | Mini Moving Heads | Beam Moving Heads | LED Moving Heads |
|---|---|---|---|
| Target end user | Mobile DJs, entry-level rental | Nightclubs, touring, premium rental | Fixed install, theater, worship |
| Unit weight | 2.5–3.8 kg | 8–15 kg | 12–25 kg |
| Typical order use | Volume distribution, e-commerce | Professional supply, project install | Specification-driven install |
| Your margin model | Low per-unit, high volume | Higher per-unit, moderate volume | Highest per-unit, specification-loyal |
| Container density | ~320 units/20GP | ~150–220 units/20GP | ~80–120 units/20GP |
| Reorder driver | DJ upgrades, fleet expansion | Venue refreshes, fleet replacement | Project specifications, expansion |
If mini moving heads aren't the right fit
Need more output power for club installations? Beam moving DJ lights deliver 150W–350W concentrated beam effects.
Need wash coverage for stage and theater? LED moving DJ lights handle 100W–400W wash and spot duties.
Looking for multi-beam spectacle effects? Spider moving DJ lights cover that segment.
Mini heads work best as your catalog's volume anchor — the SKU that builds customer acquisition and repeat purchasing while your beam and LED lines carry higher per-unit margin. Most of our distributors stock all three tiers.
Frequently Asked Questions Mini Moving DJ Lights
What LED wattage should I stock for mini moving DJ lights?
It depends on your end market's venue size. For mobile DJs playing small to mid-size rooms (up to 150 people), 30W–60W delivers adequate throw and effect visibility. For larger mobile gigs and small fixed installations (bars, karaoke rooms), 60W–100W provides the output needed at 5–8 meter throw distances.
Most distributors stock 60W as their primary SKU — it covers the broadest range of use cases at a mid-tier price point.
We recommend starting with 60W units for market testing, then adding 30W (budget tier) or 100W (performance tier) based on which direction your customer demand pulls.
Do mini moving heads survive rental use, or are they consumer-grade?
This is the most common concern we hear from rental buyers evaluating small moving DJ lights. The answer depends entirely on the motor mechanism and thermal design — not the form factor.
Consumer-grade mini heads use brushless DC motors with plastic gear sets that develop backlash within 3–6 months of regular use. Our mini range uses stepper motors with hybrid steel/nylon composite gear trains rated for 30,000+ full pan cycles.
Combined with the 48-hour aging test (which specifically stress-tests the motor under sustained thermal load), our mini heads survive 2+ years of weekly rental rotation. We have rental house customers in Southeast Asia running our 60W minis on nightly karaoke bar gigs for over 18 months with zero motor failures reported.
Can I sell mini moving heads on Amazon without compliance issues?
Yes — our mini moving DJ lights ship with CE, FCC, and RoHS certifications, with marks printed directly on the product and packaging.
For Amazon US, you need FCC compliance (covered). For Amazon EU marketplaces, you need CE + WEEE registration (CE is covered; WEEE registration is market-specific and handled on your end as the importer of record).
We provide all test reports and declarations of conformity in your document pack. For OEM-branded units, certificates reference your brand and are formatted for platform upload.
What's the minimum order for custom-branded mini moving heads?
30 units for standard OEM (your logo, packaging, and boot screen on an existing platform). For product configuration changes (different wattage, color system, gobo set), minimum is 100 units. Full ODM custom development (housing redesign, new optical system, wireless integration) starts at 200 units.
Sample approval takes 7–10 days on OEM variants — you can be selling branded product within 5 weeks of placing your order.
How do mini moving heads compare to LED par cans for entry-level DJ lighting?
Different fixture categories serving different visual functions — they're complementary, not competitive. LED pars provide static color wash (ambient uplighting, stage wash). Mini moving heads provide motorized beam effects (sweeping, gobos, chasing patterns).
DJs typically buy both: 4–8 pars for wash, 2–4 mini moving heads for dynamic effects.
For your catalog strategy, this means bundling opportunities — package deals with pars and moving heads together increase average order value and give your customers a complete lighting rig in one purchase.
Next Step — Sample or Volume Quote
Choose the path that matches where you are in your sourcing process. We respond with engineering review and preliminary quote within 48 hours.
Testing Mini Moving Heads for Your Market
Start with 30 units in your preferred wattage (30W/60W/100W). We ship standard-configuration samples within 3–7 days. Run them through your own testing, demo them for customers, put them on a rental gig. No commitment beyond the initial order.
3–7 day sample lead timeBuilding an E-Commerce Listing or Distributor Catalog
Send us your target retail price point and destination market. We'll recommend the configuration that protects your margin at that price tier — including OEM branding options if you're building a house brand.
Margin-optimized configurationSwitching from an Existing Supplier
Send us the fixture you're currently sourcing (or just the spec sheet). We'll match or improve performance, quote production, and ship comparison samples within 10 days so you can evaluate side by side.
10-day comparison samplesEmail Teresa@gdmonkey.com or WhatsApp +86-135 3966 9939
Engineering review and preliminary quote back within 48 hours.
