Gobo Disco DJ Lights Pattern Projection Fixtures
Interchangeable pattern wheels, stepper motor precision, and DMX-512 control — manufactured in-house at our Guangdong facility.
The fixture type that commands higher per-event rental fees than generic LED effects. Your customers charge premium rates because gobo projection delivers venue-specific customization no other disco light can match.
Heritage
12+ Years
Gobo Wheels
Custom Mfg
Aging Test
48-Hour
OEM/ODM
From 200 Units
What Gobo Disco DJ Lights Are and Why They Earn More Per Event

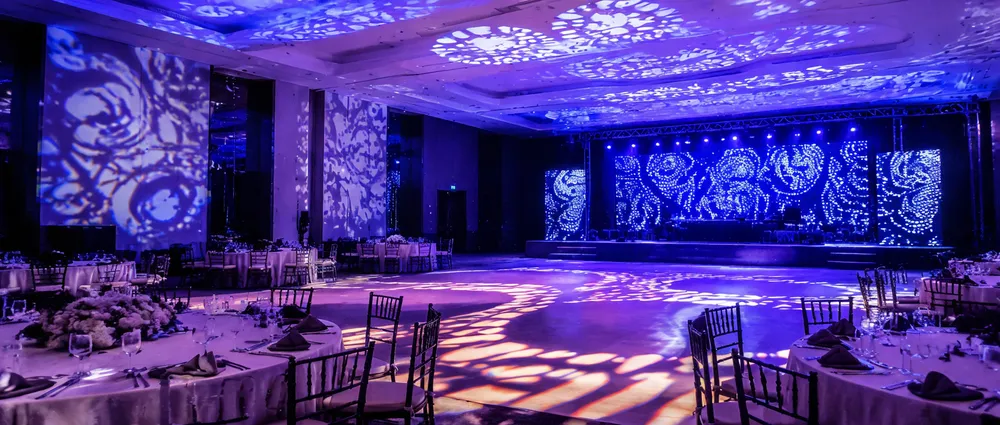

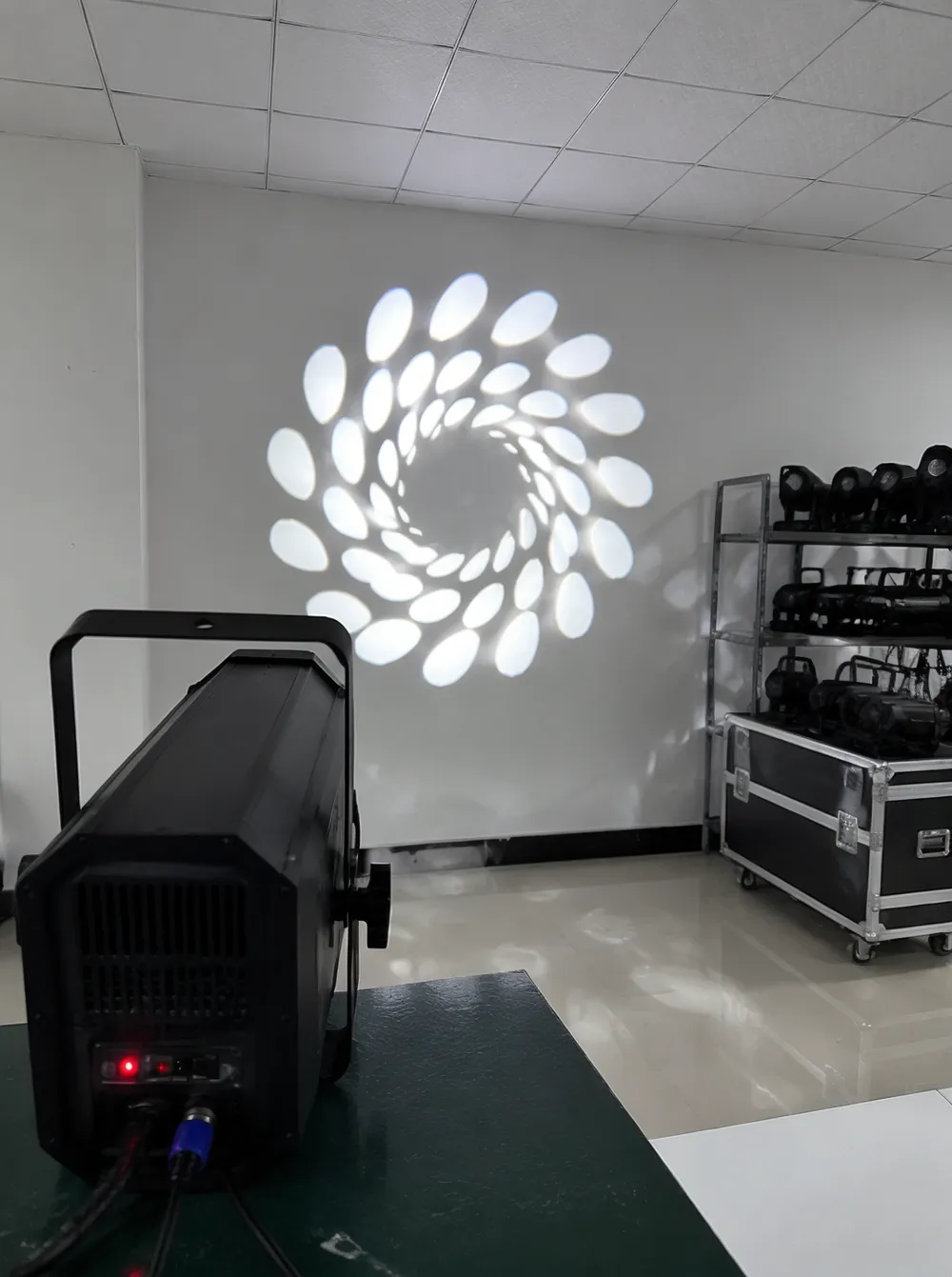

Gobo disco DJ lights project patterns — shapes, logos, abstract textures, branded imagery — onto walls, floors, and ceilings using a focused light source passed through interchangeable metal or glass gobo discs. Unlike generic LED effect fixtures that throw color around a room, gobo fixtures deliver deliberate, recognizable imagery. That distinction drives the commercial value for your business.
Your rental and event customers charge more for gobo fixtures because they offer something generic disco lights cannot: venue-specific customization. A wedding planner projects the couple's monogram. A corporate event features the brand logo on every surface. A nightclub owner rotates seasonal pattern sets without buying new fixtures. Each of these scenarios commands a higher hire fee than a standard color-wash unit, and your margin expands accordingly.
We've been producing gobo disco DJ lights since our early years — our motor heritage (we started in electromechanical assemblies in 2012) means the rotation mechanism was never an afterthought for us. The gobo wheel motor, the part that fails first on cheap units, is where we put disproportionate engineering attention.
Revenue Scenarios
Wedding Planner Projects the couple's monogram — commands premium hire fee over generic color wash.
Corporate Event Brand logo on every surface — justifies event-specific fixture rental pricing.
Nightclub Owner Rotates seasonal pattern sets without buying new fixtures — recurring value from one purchase.
Gobo Wheel Engineering — The Component That Defines Your Warranty Exposure
The gobo wheel is the heart of these fixtures, and it's where most manufacturers cut corners that show up as your warranty claims six months later.
Fixed Gobo Wheel
Standard Tier- 7+open gobo positions
- Stamped aluminum gobos
- Static pattern projection
- Adequate for ambient decoration and retail-channel fixtures
Commercial fit: Value SKU for budget-conscious buyers and retail distribution channels.
Rotating Gobo Wheel
Professional Tier- 7+open gobo positions
- Glass gobos with continuous 360° rotation per gobo
- Dynamic, morphing pattern effects
- Justifies premium event pricing for rental customers
Commercial fit: Pro SKU for rental fleets and event production companies charging per-event premiums.

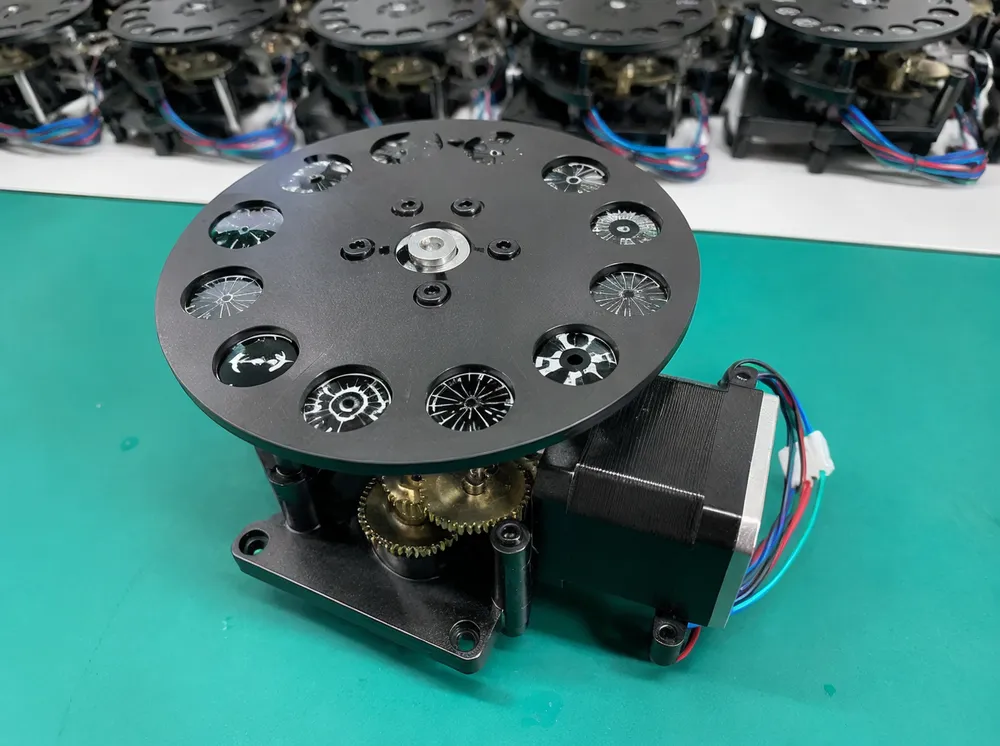

Stepper Motor Precision — Why We Abandoned DC Drive
We mount gobo wheels on precision stepper motors with 1.8° step resolution. The stepper drives a gear reduction assembly that gives smooth, consistent rotation speeds from 0.5 to 12 RPM without the jitter that direct-drive DC motors produce at low speeds.
We tested DC motor drive on gobos early on — the rotation looks fine above 5 RPM, but at the slow speeds venues actually use for ambient projection, the micro-stepping irregularity is visible as pattern judder on the wall. Switched to geared stepper and never went back.
Motor & QC Specifications
1.8°
Step Resolution
0.5–12
RPM Range
72h
Rotation Run-In
Pre-Assembly Screening
Each gobo wheel assembly goes through a 72-hour continuous rotation run-in before it enters final assembly. We stress-test at 120% rated voltage to screen weak motor windings and bearing defects.
Your rental fleet doesn't develop the clicking noise or binding that plagues cheaper gobo fixtures after 500 hours of use.
Fixed wheel, rotating wheel, or both SKUs — tell us your market positioning.
Technical Specifications
The two tiers address different positions in your product line. Standard tier fits retail, e-commerce, and budget event markets where the price point matters more than advanced features. Professional tier fits rental houses, installed club systems, and project deployments where per-unit margin and fixture longevity justify the higher landed cost.
| Parameter | Standard Tier (Fixed Gobo) | Professional Tier (Rotating Gobo) |
|---|---|---|
| Light Source | 30W LED (Luminus CBT-90 equivalent) | 60W LED (Luminus CBM-360 equivalent) |
| Gobo Wheel | 7 fixed gobos + open, stamped aluminum | 7 rotating gobos + open, replaceable glass |
| Color Wheel | 7 colors + open + half-color positions | 8 colors + open + rainbow effect |
| Gobo Rotation | Static projection only | Continuous 360°, bi-directional, variable speed |
| Motor Type | Stepper (gobo wheel indexing) + DC (mirror rotation) | Stepper (gobo wheel + gobo rotation + color) |
| Beam Angle | 13° fixed | 11°–18° via motorized focus |
| DMX Channels | 9-channel standard | 16-channel / 20-channel selectable |
| Control Modes | DMX-512, sound-active, master/slave, auto-run | DMX-512, RDM, sound-active, master/slave |
| Dimming | 0-100% linear, electronic shutter (1-20Hz strobe) | 0-100% linear, 16-bit fine dimming, electronic shutter |
| Housing | ABS engineering plastic, matte black | Die-cast aluminum, matte black powder coat |
| Weight | Typical 3.2 kg | Typical 5.8 kg |
| Power | AC100-240V 50/60Hz, 45W max consumption | AC100-240V 50/60Hz, 85W max consumption |
| IP Rating | IP20 (indoor) | IP20 standard; IP44 on request for semi-outdoor |
| Operating Temp | -10°C to +40°C | -10°C to +45°C |
| Cooling | Convection (passive) | Forced-air, temperature-regulated fan |
Standard Tier — Fixed Gobo
- Light Source
- 30W LED (Luminus CBT-90 equivalent)
- Gobo Wheel
- 7 fixed gobos + open, stamped aluminum
- Color Wheel
- 7 colors + open + half-color positions
- Gobo Rotation
- Static projection only
- Motor Type
- Stepper (gobo wheel indexing) + DC (mirror rotation)
- Beam Angle
- 13° fixed
- DMX Channels
- 9-channel standard
- Control Modes
- DMX-512, sound-active, master/slave, auto-run
- Dimming
- 0-100% linear, electronic shutter (1-20Hz strobe)
- Housing
- ABS engineering plastic, matte black
- Weight
- Typical 3.2 kg
- Power
- AC100-240V 50/60Hz, 45W max consumption
- IP Rating
- IP20 (indoor)
- Operating Temp
- -10°C to +40°C
- Cooling
- Convection (passive)
Professional Tier — Rotating Gobo
- Light Source
- 60W LED (Luminus CBM-360 equivalent)
- Gobo Wheel
- 7 rotating gobos + open, replaceable glass
- Color Wheel
- 8 colors + open + rainbow effect
- Gobo Rotation
- Continuous 360°, bi-directional, variable speed
- Motor Type
- Stepper (gobo wheel + gobo rotation + color)
- Beam Angle
- 11°–18° via motorized focus
- DMX Channels
- 16-channel / 20-channel selectable
- Control Modes
- DMX-512, RDM, sound-active, master/slave
- Dimming
- 0-100% linear, 16-bit fine dimming, electronic shutter
- Housing
- Die-cast aluminum, matte black powder coat
- Weight
- Typical 5.8 kg
- Power
- AC100-240V 50/60Hz, 85W max consumption
- IP Rating
- IP20 standard; IP44 on request for semi-outdoor
- Operating Temp
- -10°C to +45°C
- Cooling
- Forced-air, temperature-regulated fan
Specifications shown are standard production values. Custom configurations available — contact us for detailed product data sheets and photometric reports.
Optical System — Projection Clarity That Protects Your Premium Positioning
Generic gobo fixtures produce soft, unfocused projections because their optical path uses a simple condenser lens without proper collimation. Your customers notice — blurry pattern edges make a hired gobo fixture look cheap, which undermines the premium pricing your rental accounts depend on.

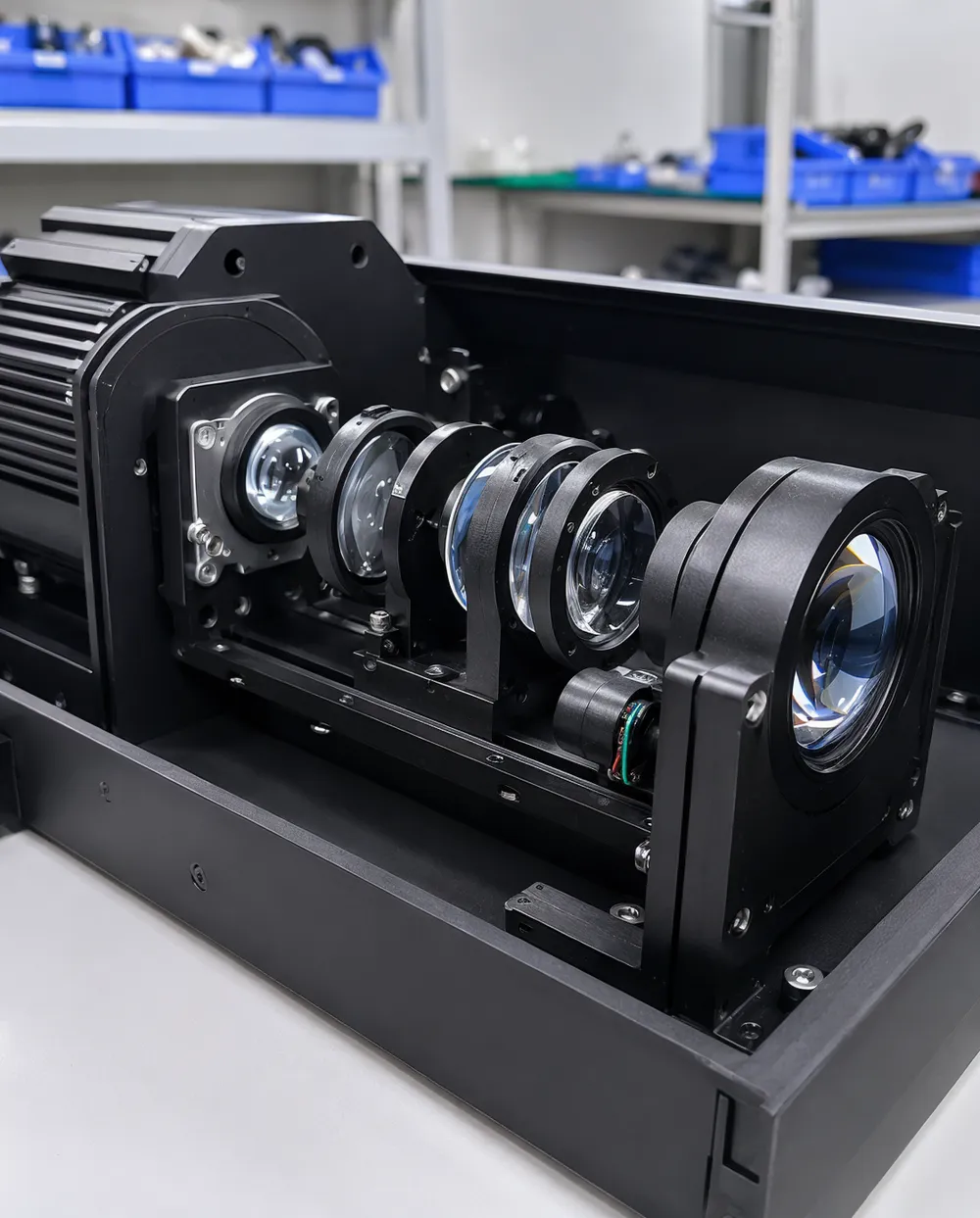

Our optical system uses a multi-element lens assembly: a plano-convex condenser behind the gobo, followed by an adjustable front objective lens group that allows focus from 2 meters to 15+ meters throw distance. On the professional tier, motorized focus means your operator can adjust projection sharpness remotely via DMX without touching the fixture — critical for installed applications where the unit sits on a truss 4 meters overhead.
The LED source sits on an aluminum-core MCPCB with thermal compound bonding to a machined heatsink block. We maintain LED junction temperature below 80°C at sustained full output, which keeps lumen output stable across the fixture's service life.
Lumen Maintenance Verified at 10,000 Hours
Our photometric lab pulls reference units from early production runs and re-measures them quarterly — at 10,000 hours we're still seeing 90%+ of initial output on the professional tier fixtures.
For your buyers who sell into the corporate event space, projection sharpness is non-negotiable — a brand logo projected with soft edges is worse than no projection at all. This optical specification is what separates your gobo product line from the commodity tier.
Optical Quick Reference
- Focus Range 2m – 15m+
- Pro Tier Focus Motorized (DMX)
- LED Junction Temp < 80°C sustained
- Thermal Interface Al-core MCPCB + machined heatsink
- Lumen Maintenance 90%+ @ 10,000h
Custom Gobo Manufacturing — Your Buyers' Revenue Multiplier
We produce custom gobos in-house, which makes this product line significantly more profitable for your event rental and corporate AV customers than off-the-shelf alternatives.

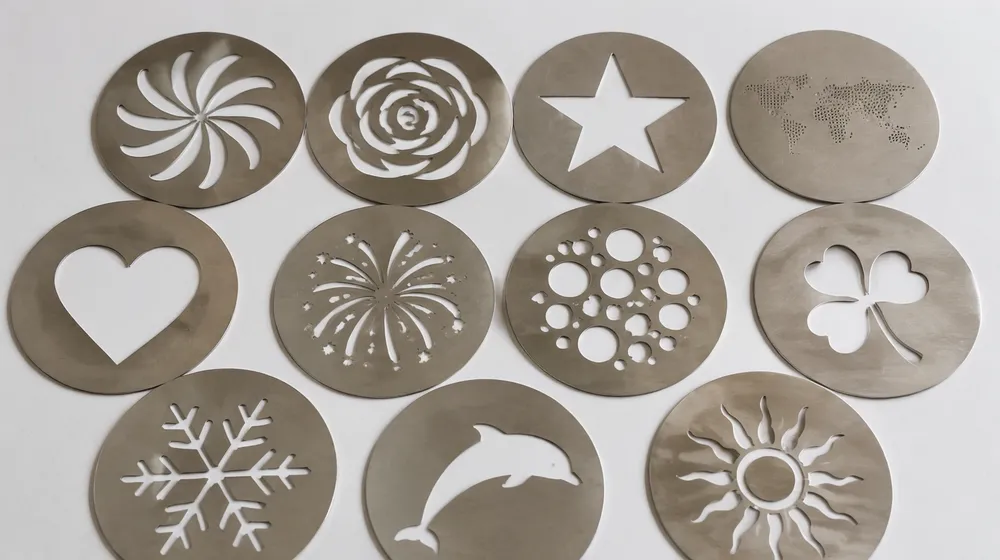

Metal Gobos
Stamped stainless steel, single-layer silhouette patterns

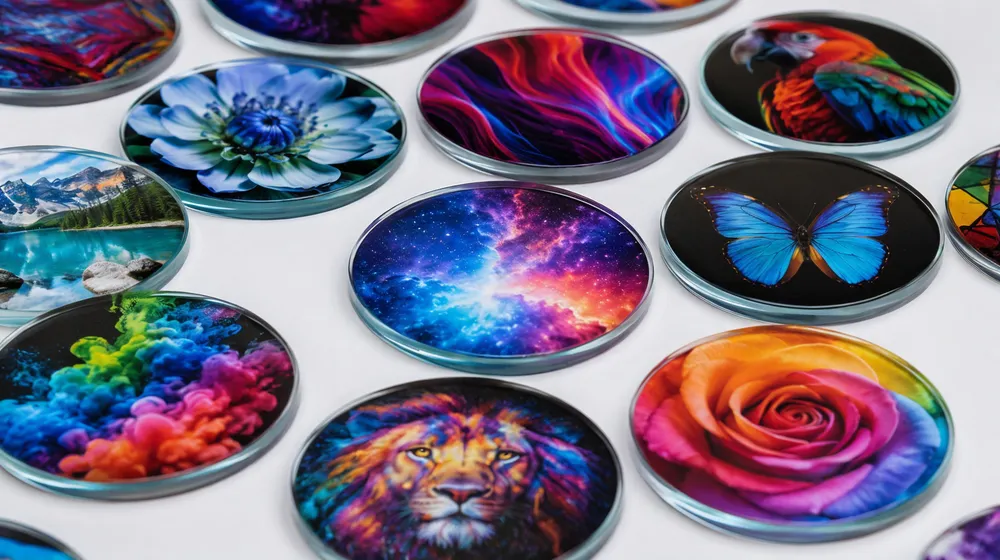

Glass Gobos
Dichroic-coated borosilicate glass, full-color imagery
Supply Options
We can supply custom gobos as a separate accessory SKU for your catalog, or pre-installed in gobo wheels matched to your fixture orders. Either way, custom gobo capability transforms a commodity disco light into a personalized projection service — and that's where your customers' event fees jump.
Most of our rental-market distributors report that custom gobo services generate 30–40% of their total revenue from gobo fixtures — the fixture sale is the platform, the custom gobo is the recurring income stream. Worth structuring your offering around.
Market Segments Where Gobo Disco DJ Lights Generate Revenue

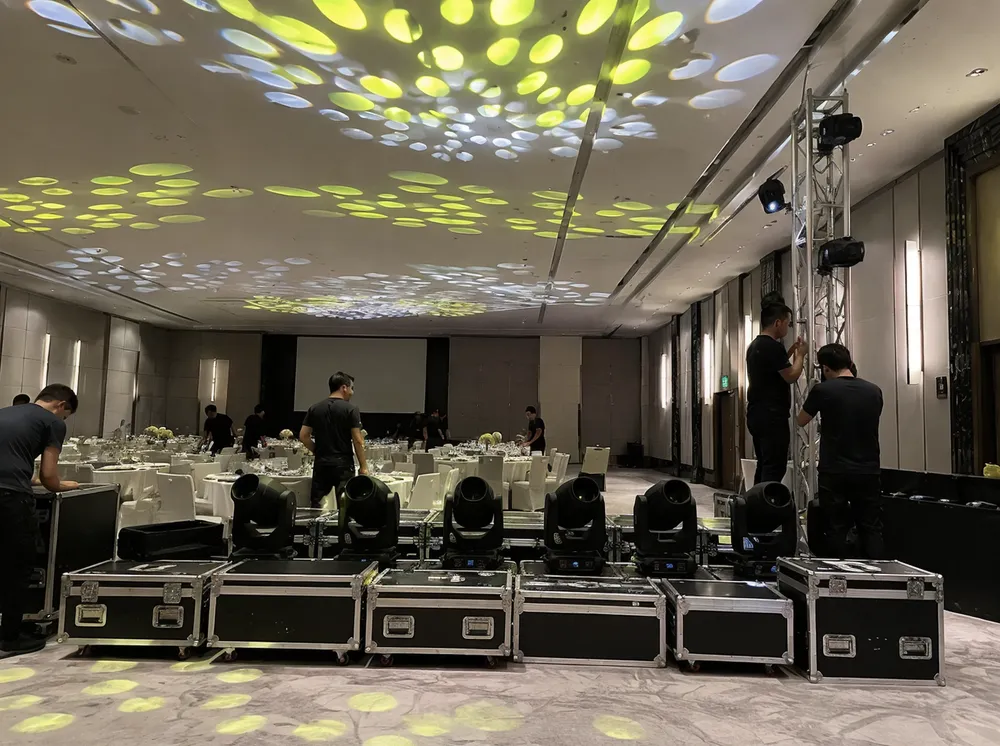

Event Rental and AV Hire Companies
The primary revenue channel for gobo fixtures. Rental companies buy 10–50 units per initial order, with reorders on 6–12 month cycles as fleets expand or units retire from service. They charge $75–300 per fixture per event depending on the market, and custom gobo production is typically billed separately to the end client.
Your Margin Play
Bundle fixtures with a starter pack of 5–10 popular gobo patterns, and offer custom gobo manufacturing as an ongoing service. The fixture is a one-time capital purchase for the rental company; the custom gobos are repeat revenue for both you and them.

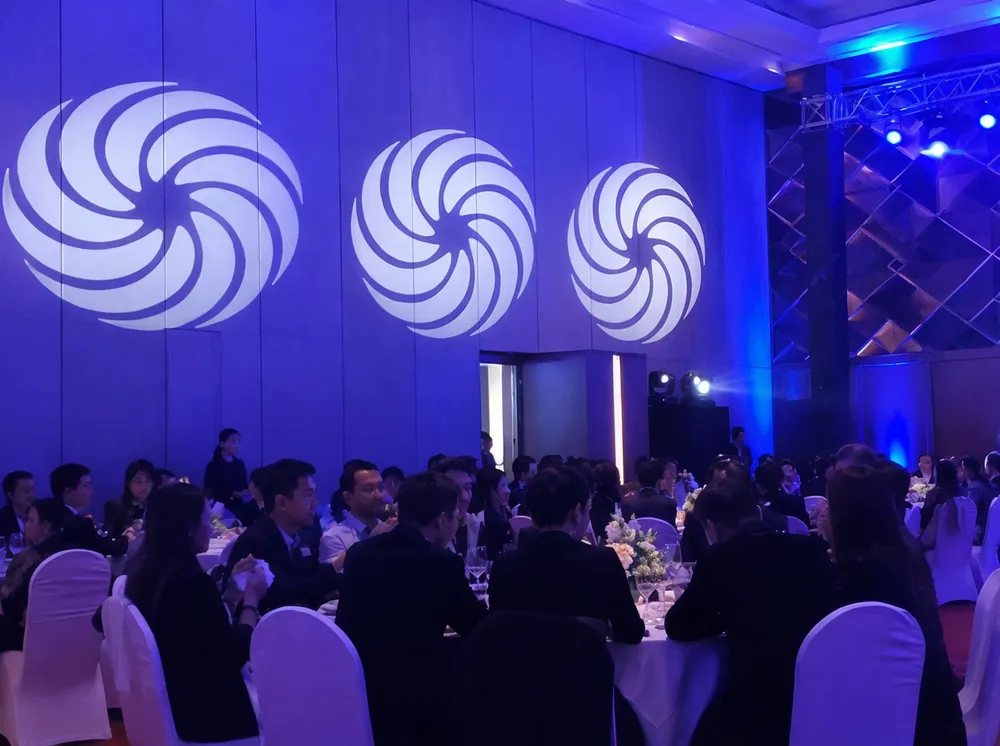

Corporate Event and Exhibition Contractors
Corporate events use gobo projection for branded environments — logo projection on walls, wayfinding patterns on floors, themed textures for gala dinners. Contractors purchase gobo fixtures as part of permanent inventory or rent them from your hire stock. The corporate segment values projection sharpness and color accuracy over price — our professional tier with motorized focus and 16-bit dimming is purpose-built for this application.
Order Pattern
Project-based, typically 4–20 units per contractor, with custom gobo orders attached to every deployment.

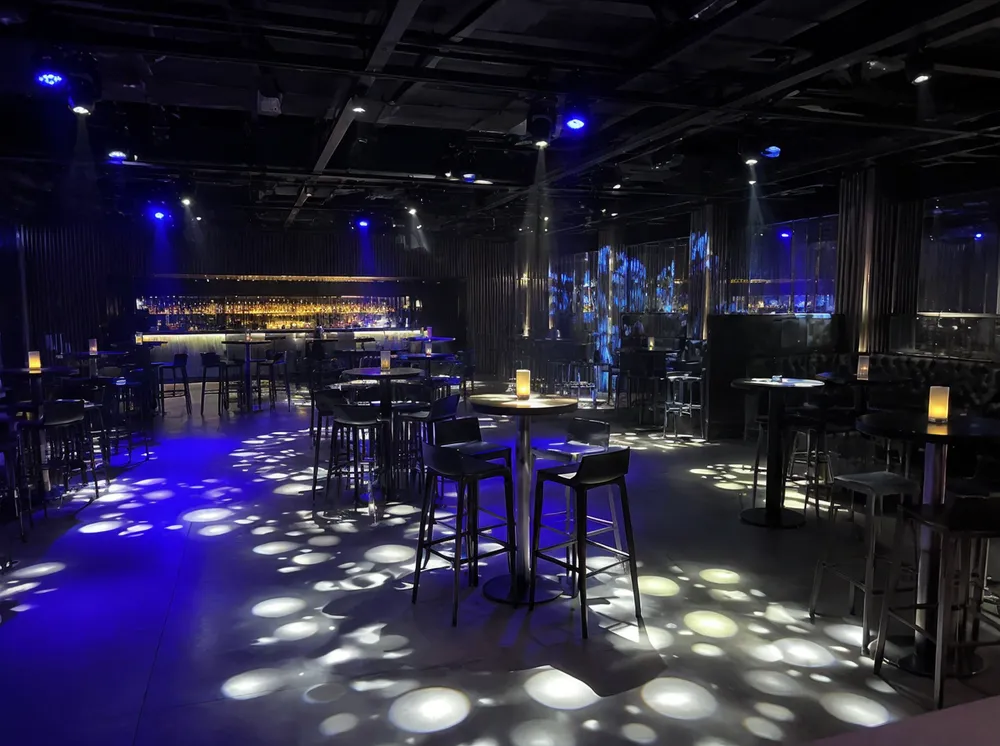

Nightclub and Hospitality Installations
Permanently installed gobo disco DJ lights in clubs, bars, and entertainment venues run nightly for 4–8 hours. They project atmospheric patterns — abstract textures, geometric shapes, seasonal themes — that the venue rotates by swapping gobo wheels. Our professional tier's aluminum housing and forced-air cooling handle sustained duty cycles without thermal throttling.
Value Proposition
One fixture mount, unlimited pattern options over its service life. We rate the professional tier LED source at 50,000 hours — that's over 15 years of nightly use before the LED degrades meaningfully.

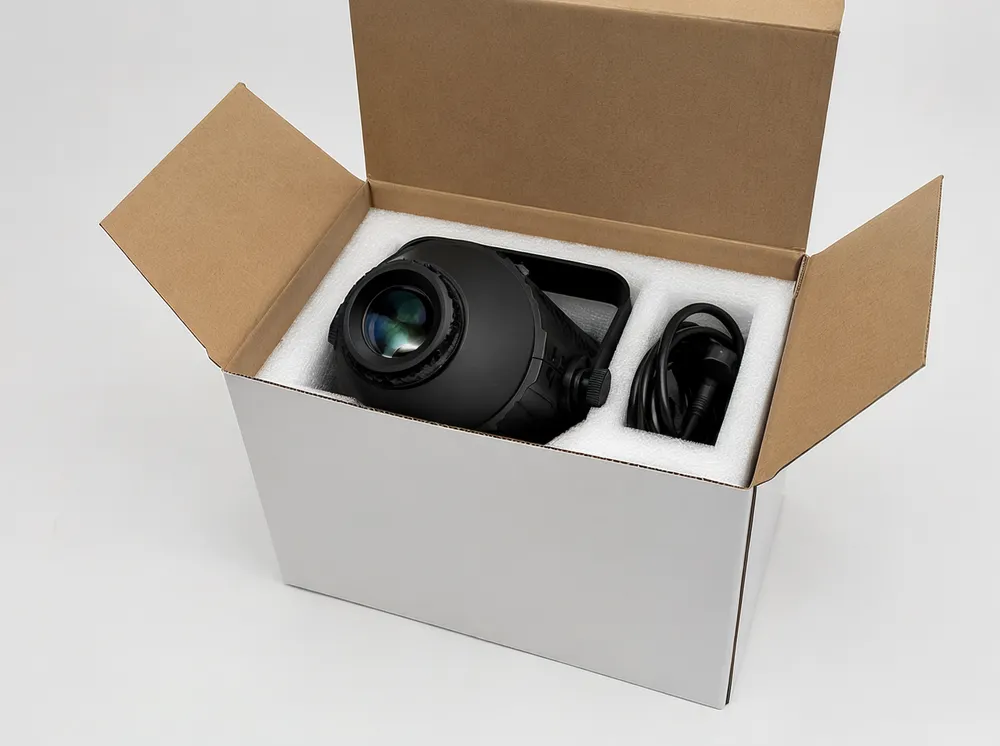

Retail and E-Commerce — Entry-Level Gobo Fixtures
The standard tier gobo disco DJ lights sell through Amazon, eBay, and regional platforms to mobile DJs, home party hosts, and small venue operators. The price point is accessible, the sound-active and auto-run modes require zero technical knowledge, and the visual impact of projected patterns creates strong product photography and video content that drives online conversion.
Margin Strategy
Your margin in this segment depends on volume and packaging efficiency. Our standard tier ships in cartons optimized for FBA fee tiers, with retail-ready packaging in your branding.
DMX Integration and Control Architecture
Gobo disco DJ lights in a DMX-512 installation need reliable addressing, clean signal pass-through, and predictable channel mapping. Our professional tier supports 16-channel and 20-channel DMX modes with RDM (Remote Device Management) capability, so your installation customers can interrogate and reconfigure fixtures remotely without climbing trusses.
Standard DMX Channel Map (16ch Mode)
| Channel | Function |
|---|---|
| 1 | Pan (or mirror X-axis on select models) |
| 2 | Tilt (or mirror Y-axis on select models) |
| 3 | Color wheel |
| 4 | Gobo wheel select |
| 5 | Gobo rotation speed/direction |
| 6 | Focus (motorized, professional tier) |
| 7 | Prism (on prism-equipped models) |
| 8 | Dimmer |
| 9 | Strobe/shutter |
| 10 | Auto programs |
| 11 | Auto speed |
| 12–16 | Fine positioning / reserved |
Channel mapping is configurable via OEM firmware — if your brand uses a proprietary control protocol or your integrator clients need specific channel assignments, we program custom personality files during production.

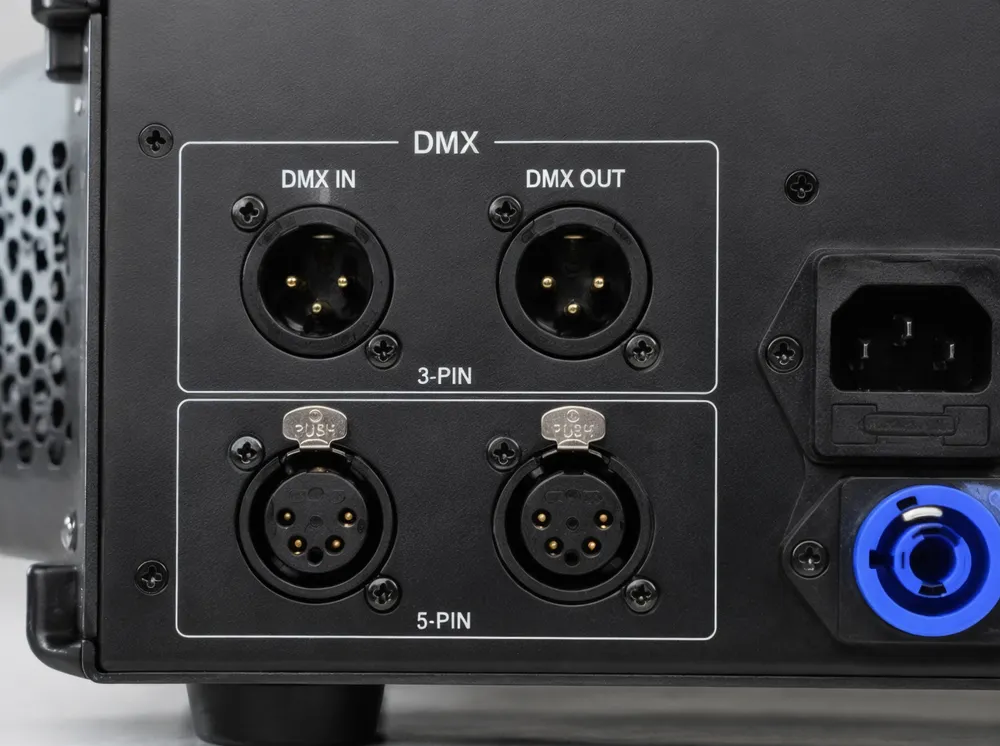

Data Connectors & Signal Integrity
- 3-pin and 5-pin XLR standard on all DMX-equipped models
- Signal pass-through tested at 250 kbaud with zero packet loss across 32-unit daisy chains
- Industrial-rated XLR connectors with spring-loaded contacts — the connection that sees the most physical abuse on any rental fixture
- Switched to Neutrik-equivalent connectors on the professional tier in 2020. Zero connector-related warranty claims since.
Why this matters for rental fleets: After fielding too many service calls about intermittent DMX dropout from cheap connectors, we made the switch permanent. Spring-loaded contacts maintain pressure even after thousands of insert/removal cycles — the difference between a fixture that works every show and one that costs you a tech call.

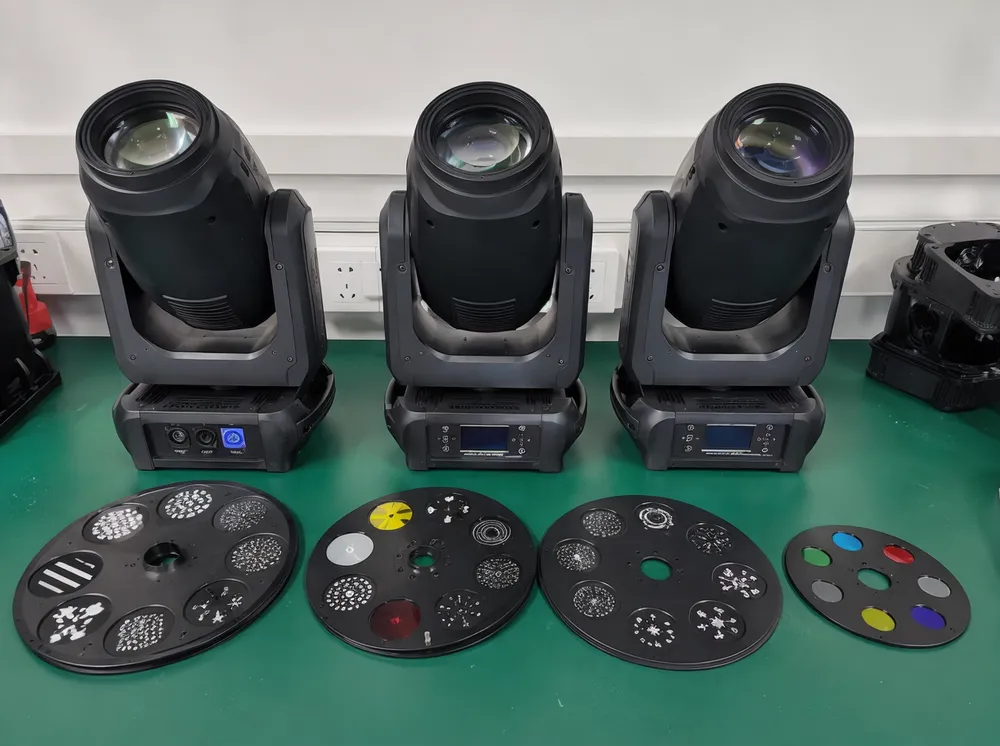

OEM/ODM Customization Scope for Gobo Disco DJ Lights
We support full OEM branding and ODM product development on this fixture platform. From simple logo placement to entirely new housing tooling from your industrial design — our 15-person R&D team handles optical, electrical, thermal, and mechanical design in-house. Your custom project stays under one roof.
Branding Customization
MOQ 200 units, first run
- Logo printing or engraving on housing
- Custom boot screen on LCD display (professional tier)
- Branded packaging — retail color box or plain carton to your spec
- Custom instruction manual and warranty card
- Your UPC/EAN barcoding
Technical Customization
MOQ 300–500 units
- Modified gobo wheel positions (5, 7, 9, or 12 gobo slots)
- Alternative LED source (higher wattage, different CCT, UV-enhanced RGBW)
- Custom DMX channel mapping and firmware personality
- Modified beam angle via lens swap (narrow spot to medium flood)
- Housing color change (any RAL powder coat color on aluminum tier)
- IP44 sealing for semi-outdoor applications
- Wireless DMX receiver module integration (CRMX or W-DMX compatible)
New Product Development
MOQ negotiable · 60–90 day development
- New housing tooling from your industrial design
- Combined gobo + LED wash hybrid fixtures
- Multi-gobo-wheel configurations (dual or triple wheel stacking)
- Integrated battery operation for wireless deployment
In-House R&D — One Roof, Full Control
Our 15-person R&D team covers optical, electrical, thermal, and mechanical design without external subcontracting. Typical OEM adaptation (existing platform, your branding + minor spec changes) delivers samples within 10–15 days.
Send your brief to Teresa@gdmonkey.com

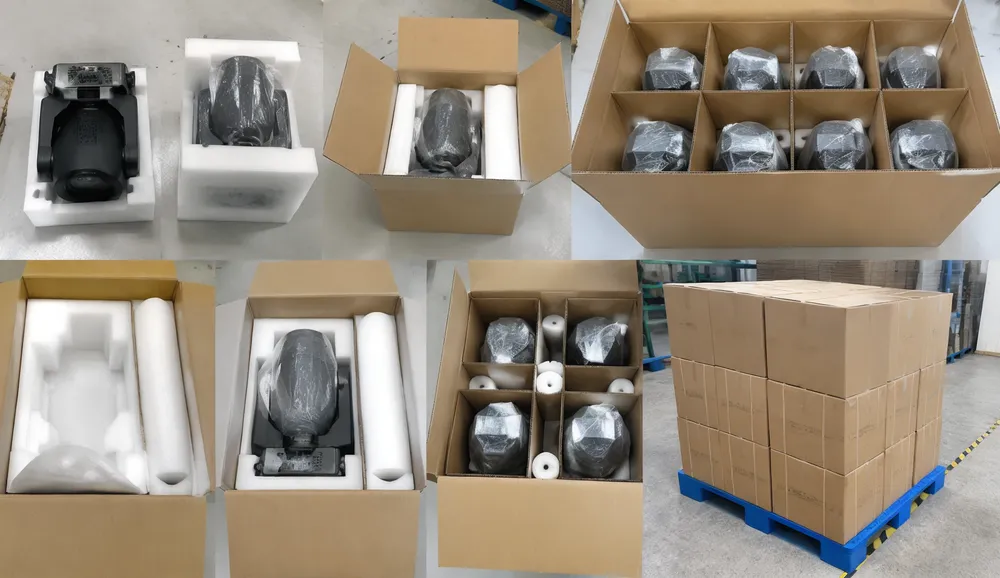

Gobo Fixture Packaging and Container Loading
Gobo disco DJ lights are optically sensitive — the gobo wheel assembly, lens elements, and mirror mechanisms must survive sea freight without misalignment. Our packaging engineering addresses this directly.
Standard Tier
8 units per master carton- Individual EPE foam cradle in retail color box
- Foam insert immobilizes the fixture with the gobo wheel locked in transport position — a spring-detent in the motor assembly prevents free rotation during shipping
- Master carton holds 8 units
- Typical carton size: 25×25×22 cm per unit
Professional Tier
4 units per master carton- Individual EPE molded insert in reinforced carton with separate compartments for fixture body and gobo wheel cassette
- Gobo wheels ship in protective foam sleeves to prevent glass-to-glass contact
- Master carton holds 4 units
- Typical carton size: 38×32×28 cm per unit
Container Loading Capacity
| Configuration | 20GP Container | 40HQ Container |
|---|---|---|
| Standard tier (8/master carton) | ~1,200 units | ~2,600 units |
| Professional tier (4/master carton) | ~520 units | ~1,150 units |
| Mixed load (50/50 standard + pro) | ~850 units | ~1,900 units |
Sea freight breakage rate on properly packed gobo fixtures
We achieved this after redesigning the gobo wheel transport lock in 2021 — the previous friction-lock design allowed enough free play that glass gobos occasionally cracked against each other during rough container handling. The current spring-detent lock eliminates that failure mode entirely.
Trade Terms
FOB Shenzhen/Guangzhou. CIF and DDP available. Full documentation — CE, FCC, test reports, packing list — included with every shipment.
Quality Verification Specific to Gobo Fixtures
Beyond our standard 48-hour aging test (which every unit passes before shipping), gobo disco DJ lights get three additional verification steps specific to this product type.

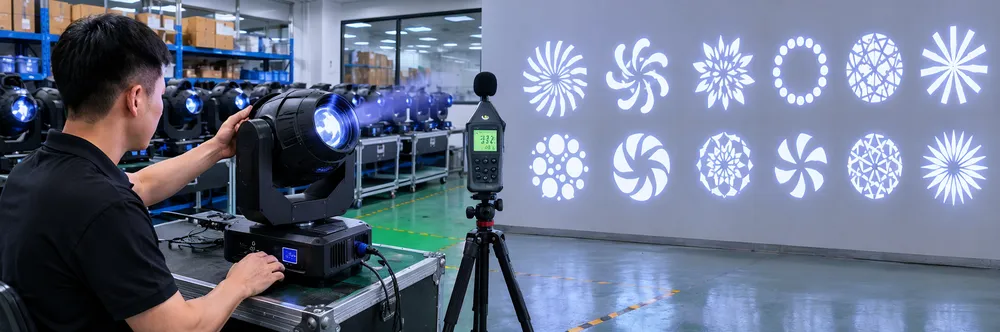

Gobo Alignment Verification
After final assembly, every fixture projects each gobo pattern onto a calibration wall at a fixed distance. An operator confirms:
- Center alignment
- Edge sharpness at minimum and maximum focus
- Correct gobo indexing (each position selects the correct pattern)
Misaligned gobo wheels are the single most common customer complaint with cheap fixtures — we catch it before the unit leaves the line.
Motor Noise Measurement
Gobo wheel stepper motors generate audible noise. We measure at 1 meter distance with a dB meter in a semi-anechoic environment.
Units exceeding threshold get motor replacement or motor damper adjustment before passing QC.
Corporate event installations care deeply about motor noise — a gobo fixture buzzing during a keynote speech is a returned unit and a lost account for your customer.
Color & Gobo Wheel Sync Test
On DMX-controlled units, we verify that rapid channel changes (color + gobo + rotation simultaneously) execute without mechanical binding or hesitation.
This test simulates real show programming where an operator calls multiple cue changes per second.
Units that lag or stutter on rapid commands get their motor driver tuning adjusted before release.
These QC steps add time to our production cycle, but they eliminate the returns and complaints that cost you far more than the extra manufacturing hours.
Frequently Asked Questions Gobo Disco DJ Lights
What's the difference between metal and glass gobos, and which should I stock?
Metal gobos (stamped stainless steel) project silhouette patterns only — single-color shapes cut from solid metal. They're indestructible under normal use and cost roughly one-third of glass gobos to produce.
Glass gobos (dichroic-coated borosilicate) reproduce full-color images, gradients, and photographic content. They're fragile but dramatically more visually impressive.
Stocking strategy: Stock fixtures with metal gobos for the standard/rental tier, and position glass-gobo-equipped professional fixtures for corporate and high-end event markets where full-color logo projection justifies the premium.
How many lumens do I need for visible gobo projection in different environments?
Darkened Venue
Nightclub, event hall with controlled lighting
30W LED source producing 2,500–3,500 lumens at the gobo plane delivers clean projection at 5–10 meter throw distance.
Semi-Lit Environment
Corporate lobbies, exhibition halls with ambient light
60W+ source and 5,000+ lumens to maintain projection visibility.
Our standard tier handles dark venues; professional tier handles ambient-lit environments. Match the fixture tier to your customers' typical deployment conditions.
Can I replace gobos in the field, or does it require factory service?
Both tiers use tool-free gobo replacement. The gobo wheel is accessible via a panel on the rear of the fixture — remove two thumbscrews, slide the wheel out, swap gobos in their holders, re-insert.
Your rental customers can swap patterns between events in under 5 minutes per fixture.
We designed the gobo holder as a drop-in slot specifically because field replacement is a revenue-generating activity for event companies — different gobo = different event = another booking fee.
What certifications do gobo disco DJ lights need for import into North America and Europe?
EU Market
- CE marking (EMC directive + low-voltage directive)
- RoHS compliance
North America
- FCC Part 15 Class B for unintentional radiators
Both are standard on our production — test reports and declarations of conformity ship with every order.
If your market requires additional certifications (UL listing, ETL, or specific regional safety marks), we can support the testing process on OEM orders. Our existing test reports accelerate third-party lab evaluation significantly.
How does gobo fixture lifespan compare to LED wash or beam fixtures?
The LED source has equivalent lifespan across all fixture types — 50,000+ hours is standard.
The differentiator for gobo fixtures is mechanical lifespan: the gobo wheel motor sees more duty cycles than the LED itself. Our stepper motors are rated for 100,000+ hours of continuous operation.
The practical limiting factor is bearing wear — we specify sealed bearings with synthetic lubricant rated for 30,000 hours before service. At typical rental usage (20 hours/week), that's 28+ years before bearing replacement.
The fixture will be obsolete long before the motor fails.
What MOQ do I need for gobo disco DJ lights with custom branding?
| Order Type | First Order MOQ | Reorder MOQ |
|---|---|---|
| Catalog models (no customization) | 30 units | — |
| OEM branding (logo, packaging, docs) | 200 units | 100 units |
| Custom technical spec (optics, firmware, housing) | 300–500 units | Scope-dependent |
We structure first-order MOQs higher to amortize setup costs — after your initial run proves the market, reorder thresholds drop and per-unit cost improves.
If This Fixture Doesn't Match Your Application
Gobo disco DJ lights serve a specific niche — pattern projection. If your customers need different capabilities, other fixtures in our disco DJ lights range may fit better:
LED Disco DJ Lights
Need pure color wash without patterns?
Multi-color room-fill at a lower price point — your volume SKU for retail and e-commerce.
Disco Laser Lights
Need tight beam effects and aerial looks?
Beam effects that gobo fixtures cannot replicate, with scan speeds up to 25kpps.
DMX Disco DJ Lights
Need full DMX rig integration with advanced programming?
32-channel control depth for installed systems where the lighting controller runs everything.
Club DJ Lights
Need fixtures specifically for permanent club installation?
Engineered for 8–12 hour nightly duty cycles and UV/neon aesthetics.
Dance Floor DJ Lights
Need dance floor surface projection?
Purpose-built for downward narrow-beam output — a complementary upsell alongside gobo fixtures in rental packages.
View Full Range
Explore the complete Disco DJ Lights category with all fixture types.
Browse all fixturesNext Step — Get Gobo Fixture Pricing For Your Market
Send us your requirements: target market, volume estimate, preferred tier (standard, professional, or both), and whether you need OEM branding or custom gobo manufacturing capability. We'll respond within 24 hours with per-unit pricing, lead time, and a packaging/loading plan for your order size.
Most New Buyers Start Here
A 2–4 unit sample order across both tiers lets you evaluate projection quality, build quality, and DMX performance firsthand. Samples ship within 5–7 days on catalog models.
Or email directly: Teresa@gdmonkey.com
If This Fixture Doesn't Match Your Application
Explore related disco DJ lighting categories from GDMonkey.
Disco Ball Lights
Classic rotating mirror-ball fixtures
LED Disco DJ Lights
Full LED-source DJ effect fixtures
DMX Disco DJ Lights
DMX-controlled disco effect fixtures
Disco Laser Lights
Laser-source pattern and beam effects
Club DJ Lights
Permanent-install club lighting solutions
Dance Floor DJ Lights
Dance floor effect and wash fixtures
