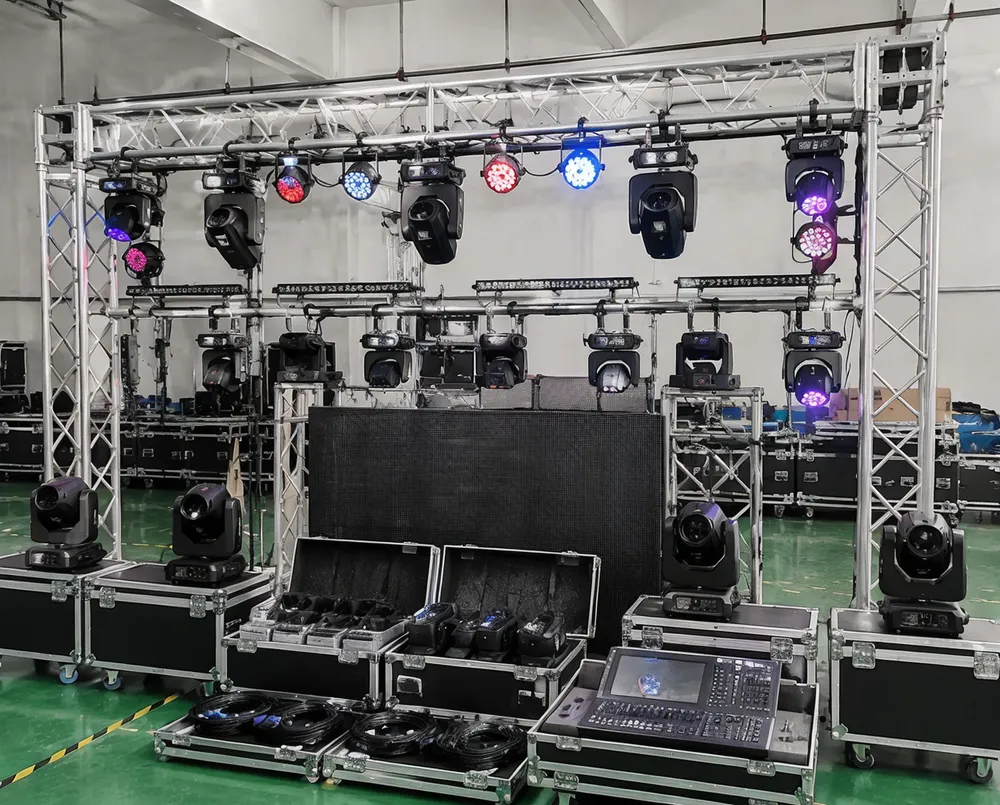

DJ Lighting Truss Setup Complete Rigging Packages
Pre-integrated DJ lighting truss setup systems — aluminum truss, fixtures, DMX control, and cabling shipped as a tested, branded package from our production line.
Every clamp, connector, and chase scene is verified as a working system before it leaves our facility. Your rental clients unpack and deploy — no field integration, no compatibility surprises.
What a DJ Lighting Truss Setup Actually Contains
A DJ lighting truss setup is a complete overhead lighting system — not a fixture catalog with a stand thrown in. Each package combines 6061-T6 aluminum truss sections (ground-support or crank-stand configuration), pre-mounted LED PARs and moving heads, a DMX-512 controller with pre-programmed scenes, all necessary cabling with proper impedance-matched connectors, and safety accessories (steel cables, clamp locks, truss pins). The system arrives pre-addressed, pre-wired to tested cable lengths, and documented with a single rigging diagram.
The distinction matters for your business because a truss setup sold as a system carries higher margin than individual components sold separately. Your buyer pays for integration value — the certainty that everything works together on the first gig — and that's worth 20-35% more than the sum of individual fixture prices. We manufacture all components in-house, which means your truss system source is one PO, one quality standard, and one point of accountability when something needs engineering attention.
System Components
-
6061-T6 aluminum truss sections (ground-support or crank-stand)
-
Pre-mounted LED PARs and moving heads
-
DMX-512 controller with pre-programmed scenes
-
Impedance-matched cabling to tested lengths
-
Safety accessories — steel cables, clamp locks, truss pins
-
Single rigging diagram per system
One Purchase Order
Single PO covers truss, fixtures, control, cabling, and safety accessories. No multi-vendor coordination.
One Quality Standard
All components manufactured in-house under unified QC. No mixed-origin compatibility gaps.
20-35% Integration Premium
Systems sell for more than the sum of their parts. Your buyer pays for deploy-and-go certainty.
Specifications for Standard DJ Lighting Truss Setup Configurations
We produce three standard tier configurations. Each serves a different deployment scale — pick the one that matches your end-user channel, or specify a custom configuration.
Compact Rig
| Truss | 2 × 1.5m bars on crank stands |
| Max Height | 3.0m (no tools) |
| Fixtures | 4 × LED PAR (18×10W RGBW) + 2 × derby |
| Power | ~600W full output |
| DMX | 24-ch, 8 pre-programmed scenes |
| Load Rating | 75 kg/bar (150 kg total) |
| Setup Time | 15-20 min, 1 operator |
| Packing | 2 flight cases (1.6×0.4×0.4m) |
| Weight | ~65 kg total |

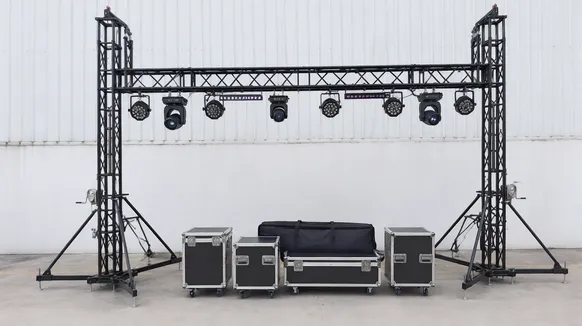

Professional Rig
| Truss | 3m + 3m span, ground-support with cross-brace |
| Max Height | 4.0m (winch lift) |
| Fixtures | 6 × LED PAR (18×18W RGBWAUV) + 2 × 230W beam + 2 × wash bar |
| Power | ~2,200W full output |
| DMX | 192-ch, wireless DMX option |
| Load Rating | 200 kg/m span (TÜV rated) |
| Setup Time | 30-45 min, 2 operators |
| Packing | 4 flight cases + 1 truss bag |
| Weight | ~180 kg total |

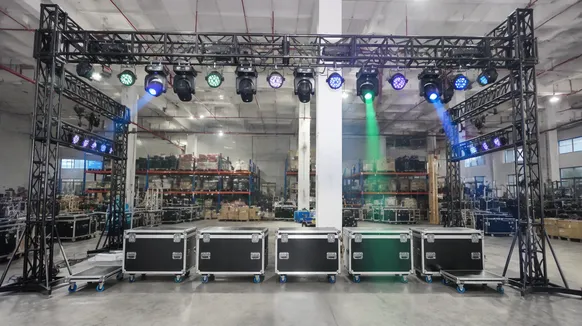

Large-Scale Rig
| Truss | 4 × 3m modular (linear, L-shape, or box) |
| Max Height | 4.5m (chain hoist compatible) |
| Fixtures | 8 × LED PAR (RGBWAUV) + 4 × 350W beam + 4 × wash bar + 2 × laser |
| Power | ~4,800W full output |
| DMX | Art-Net node + 512-ch console |
| Load Rating | 350 kg/m span (TÜV, EN 13814) |
| Setup Time | 60-90 min, 3 operators |
| Packing | 6 flight cases + 2 transport dollies |
| Weight | ~420 kg total |
Specifications shown are standard production values. Custom configurations — different fixture counts, alternative control protocols, modified truss spans — available on request.
The Truss Engineering That Protects Your Rental Revenue
The truss is where most cheap DJ lighting setups fail — and where a failure costs you far more than a fixture replacement. A truss that deflects under load looks unprofessional on stage. A joint that loosens after 20 setups creates a safety liability. A surface finish that corrodes after three outdoor gigs generates warranty claims.

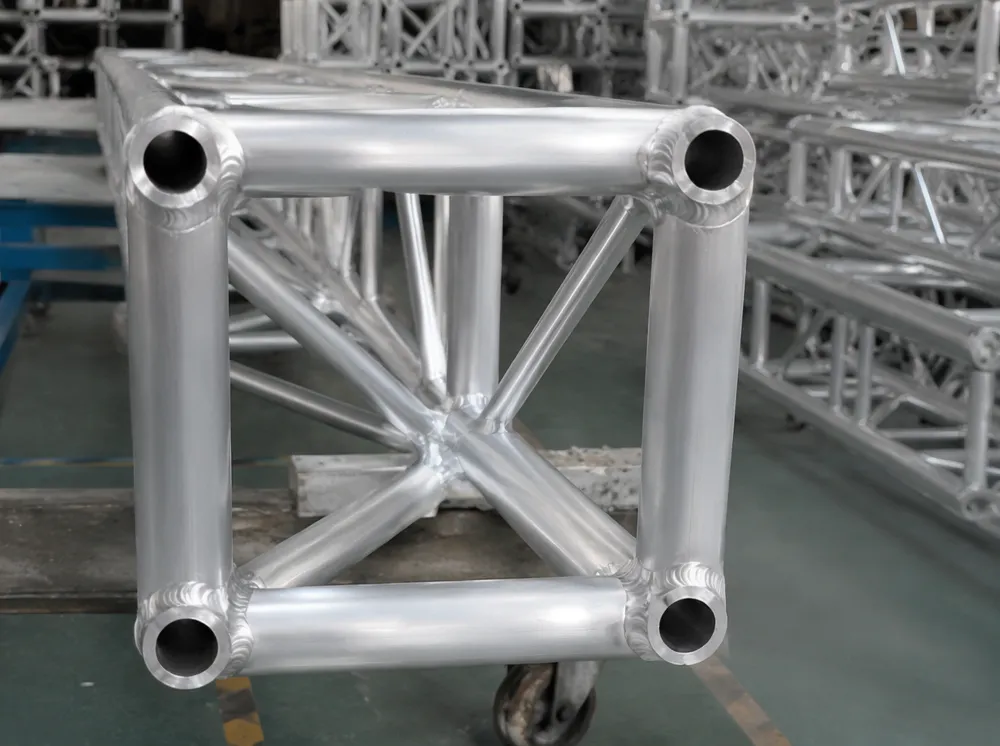

Alloy Comparison: Why 6061-T6 Over 6063
| Property | 6061-T6 (Ours) | 6063 (Budget) |
|---|---|---|
| Yield Strength | 276 MPa | 214 MPa |
| 3m Span Deflection (Moving Heads) | 2mm | 5mm |
| Cost Premium Per Meter | +$4 | — |
Your rental technicians notice deflection. Your clients notice deflection. We spec the stronger alloy because that $4/meter buys your entire reputation on a corporate stage.
TIG Welding & X-Ray Verification
Every truss joint is TIG-welded by certified welders, then X-ray spot-checked on production batches. We run static load tests at 3× rated capacity on every new truss design before it enters series production — a truss rated at 200 kg/m has been verified to hold 600 kg/m before any deformation occurs.
3× Safety Factor — Built for Real-World Handling
We over-engineer the joints specifically because rental equipment gets rigged by different technicians every week, some careful, some less so. The safety factor absorbs real-world handling that no spec sheet anticipates.
Hard Anodization to 25μm
Not paint, not powder coat. Anodized aluminum resists the scratching that happens during repeated truss assembly and disassembly. After 200 setup-teardown cycles, painted truss looks worn. Anodized truss still looks professional.
For your rental fleet, visual condition directly affects whether your clients accept the equipment on site or request replacements.
3×
Safety Factor
25μm
Anodization
200+
Cycle Durability
How We Test Complete Systems, Not Just Individual Parts
This is where our DJ lighting truss setup packages diverge from what trading companies ship. A trading company tests fixtures individually, tests truss individually, packs them in the same box, and calls it a system. We don't.

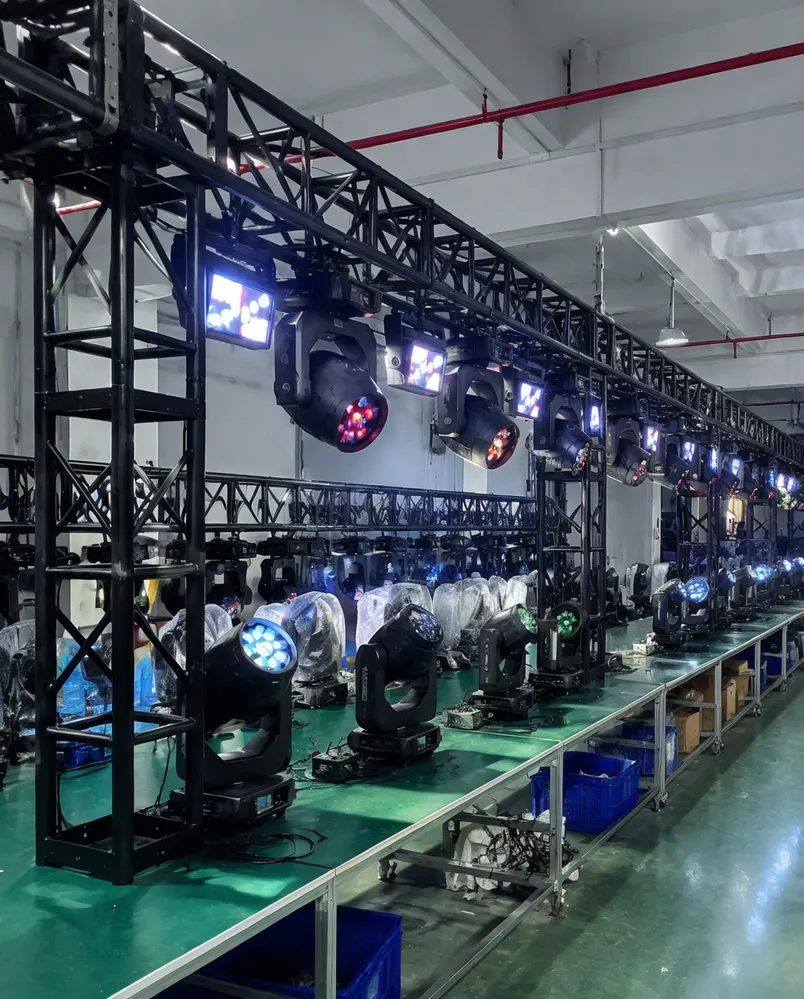

Full-System Integration Line
On our integration line, a technician assembles the actual kit — mounts every fixture on its designated truss position using the clamps included in the package, connects all DMX and power cabling using the exact cables in the box, powers the full system, and runs through every programmed scene.
System Verification Checklist
- DMX addressing continuity from first to last fixture in chain
- Color temperature consistency across all PAR fixtures (±100K within the kit)
- Beam alignment of moving heads after clamp mounting (pan/tilt home position verified)
- Power draw measurement against spec (flags any fixture drawing >5% over rated)
- Mechanical stability under simulated transport vibration (15-minute shake table)
- Cabling reach verification (every cable reaches its connection with 300mm slack minimum)
48-Hour Full-Output Aging
After system testing, every fixture individually enters 48-hour aging at full output. This catches the thermal failures that only appear after sustained operation — capacitor drift, LED driver overheating, thermal paste voids causing hotspots.
A fixture that passes a 10-minute bench test but fails at hour 12 under full load would create a mid-event failure for your rental client. We find those units here.
<0.8%
Field Return Rate
That number translates directly to your bottom line. Each avoided return saves you the product's landed cost plus reverse freight plus technician diagnostic time plus your credibility with the rental operator who lost confidence in your brand for one night.
Market Segments Where DJ Lighting Truss Setups Generate Repeatable Revenue

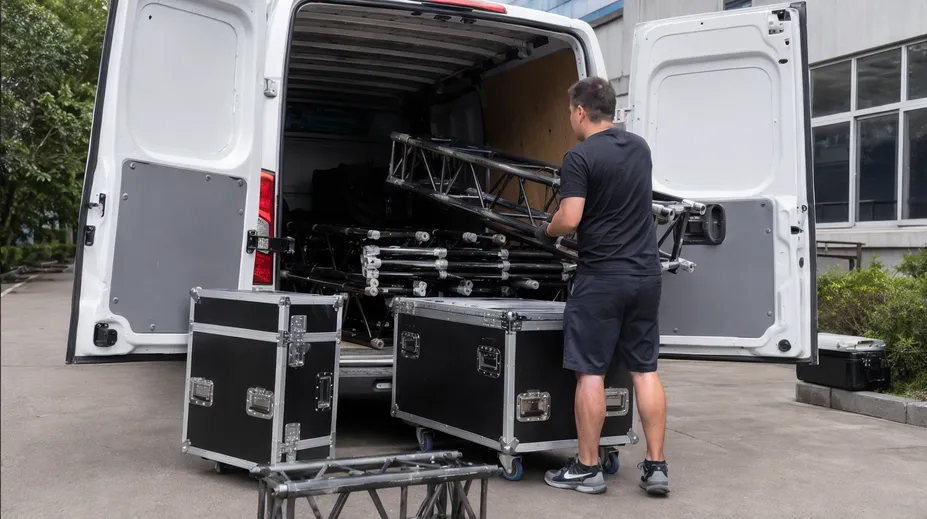

Mobile Entertainment Rental Operators
The core market. These operators run 3–7 events per week — weddings, corporate functions, private parties — and need truss setups that one or two crew members can rig in 30 minutes. They typically maintain 2–5 complete rigs and rotate based on event scale.
Purchase Pattern
Initial fleet buy of 3–5 systems, then 1–2 replacement/addition systems every 6–12 months as the fleet expands or fixtures age out.
Your Margin Opportunity
Offer upgrade-compatible systems where the truss infrastructure persists across fixture generations — they buy new PAR arrays every 2–3 years but keep the truss for 7–10 years.

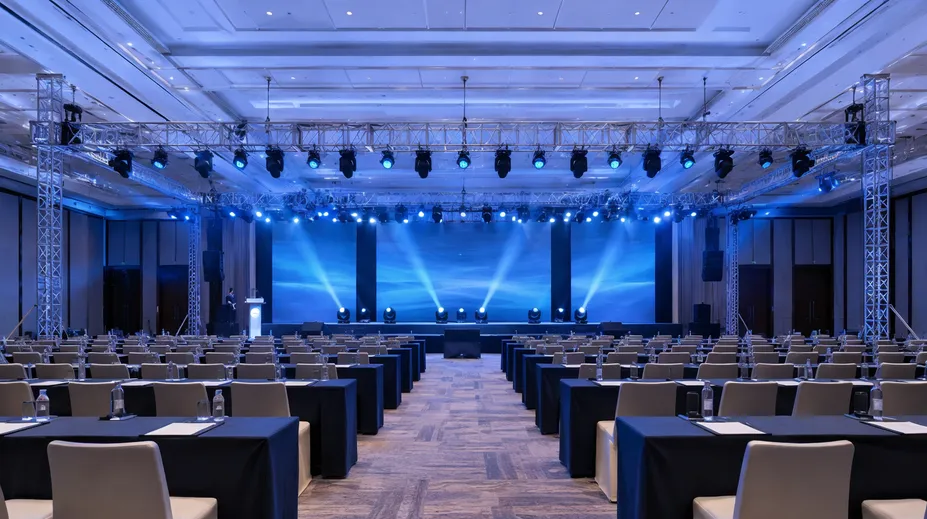

AV Production and Event Companies
Larger operations running concurrent multi-day events. They need 10–30 identical truss setups for branded corporate roadshows, product launches, and touring productions where every venue must look the same.
Key Requirement
Consistency — not just similar output, but identical color temperature, identical beam angles, identical fixture positioning across every kit. Our bin-sorted LED chips and jigged fixture mounting positions deliver that consistency.
Order Pattern
Bulk first buy of 20+ systems with quarterly top-ups.
Your Margin Opportunity
Multi-year supply agreements with contracted pricing.

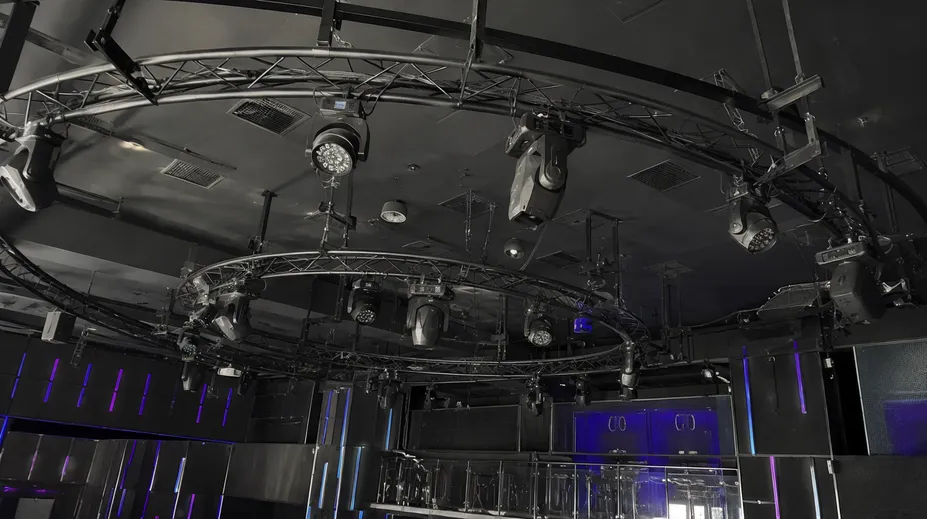

Nightclub and Venue Installers
Project buyers who purchase once per venue, but each project includes 4–12 truss sections and 8–20 fixtures in custom configurations. They need truss setups designed for permanent mounting with cable management concealment and ceiling integration.
Configuration Differences
IP20 is acceptable (indoor only), but DMX distribution needs clean backbone architecture, not daisy-chain.
Your Margin Opportunity
Custom engineering charges per project plus ongoing fixture replacement contracts.
Overseas Lighting Distributors Building Branded Product Lines
Distributors who want to sell DJ lighting truss setups under their own brand without investing in manufacturing. They need OEM packages with consistent cosmetics (logo, color, packaging), standardized SKU architecture across multiple system sizes, and documentation in their market's language.
Order Pattern
Quarterly or bi-annual container orders of 50–200 systems across 3–4 SKU configurations.
Your Margin Opportunity
Brand equity building with your exclusive product line that no competitor can source from the same factory under the same look.
Tell us which segment you're targeting — we'll recommend system configurations and pricing tiers.
Get Segment-Specific RecommendationsDJ Light Stand Setup vs. Full Truss System: Helping Your Buyer Choose
Some of your end users need a full truss system. Others need a simpler DJ light stand setup — T-bar stands with mounted fixtures, no overhead rigging. Understanding the boundary helps you stock the right mix and guide your customers to the correct product.
| Decision Factor | DJ Light Stand Setup | DJ Lighting Truss Setup |
|---|---|---|
| Fixture capacity | 2–4 fixtures per stand | 6–16+ fixtures per truss span |
| Max fixture weight | 15–20 kg per T-bar | 75–350 kg per truss section |
| Setup time | 5–10 min, solo | 20–90 min, 1–3 operators |
| Visual impact | Adequate for small rooms | Professional stage presence |
| Transport | Fits in a car trunk | Requires van/truck |
| Price positioning | Entry-level | Professional tier |
| Typical end user | Solo mobile DJ, small bars | Rental companies, event pros, venues |
| Your margin profile | Lower per-unit, higher volume | Higher per-unit, relationship-based |
Same Fixture Quality, Different Infrastructure
We manufacture both configurations. Our DJ light stand setups use the same fixture quality and DMX integration as the truss packages — the difference is mounting infrastructure, not lighting performance. If you're building a product line that serves both entry-level and professional buyers, sourcing both from us keeps your quality consistent and your logistics simple.
The Upgrade Path Captures Repeat Revenue
About 40% of our DJ light stand buyers upgrade to truss systems within 12 months as their end customers' businesses grow. If your product line architecture supports that upgrade path — same fixtures, same DMX protocol, same brand — you capture the repeat purchase instead of losing them to a competitor.

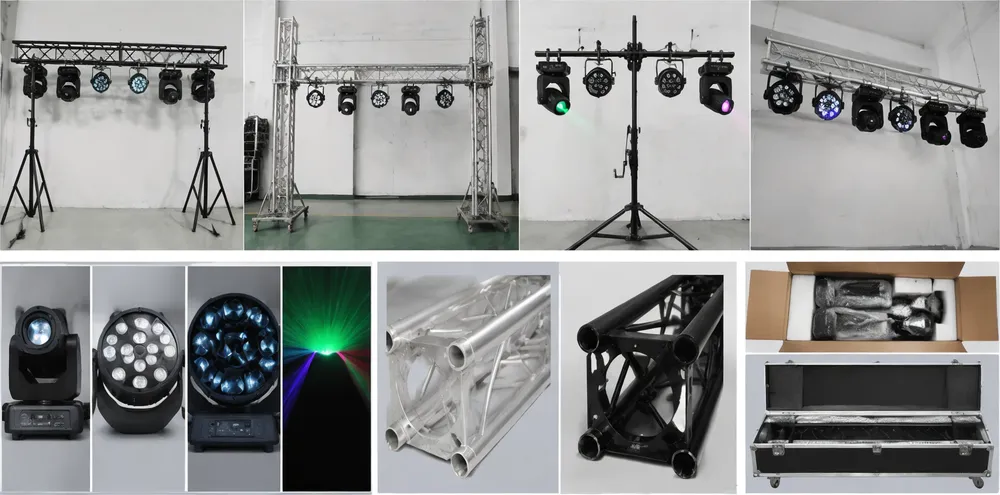

Customization: What We Can Configure for Your Market
DJ lighting truss setup packages aren't one-size-fits-all. Your market has specific preferences, and we configure to match.
Fixture Configuration
- Swap any fixture type within the system (e.g., replace derby effects with laser modules, or substitute beam moving heads for spot moving heads)
- Adjust fixture count per truss section (4, 6, or 8 PARs per bar based on your event-size target)
- Select LED color specification: RGBW for standard DJ use, RGBWAUV for high-end production rental, single-color warm white for ambient/architectural installs
- Choose fixture wattage tier based on your market's typical venue size
Truss Configuration
- Span lengths from 1.0m to 4.0m per section in 0.5m increments
- Ground-support stands (crank or winch), wall-mount brackets, or ceiling-hung configurations
- Finish: natural anodized (silver), black anodized, or custom powder coat (MOQ 100 systems for custom colors)
- Connection system: conical coupler (industry standard) or quick-lock pin (faster assembly)
Control and Programming
- DMX scene library customized to your target market (wedding warm palettes, club high-energy sequences, corporate clean looks)
- Wireless DMX pre-installed or wired-only (cost reduction of $8–12 per system if wireless isn't needed)
- Controller interface: standalone console, tablet app control, or Art-Net node for integration with house systems
- Custom startup animations and controller splash screens with your branding

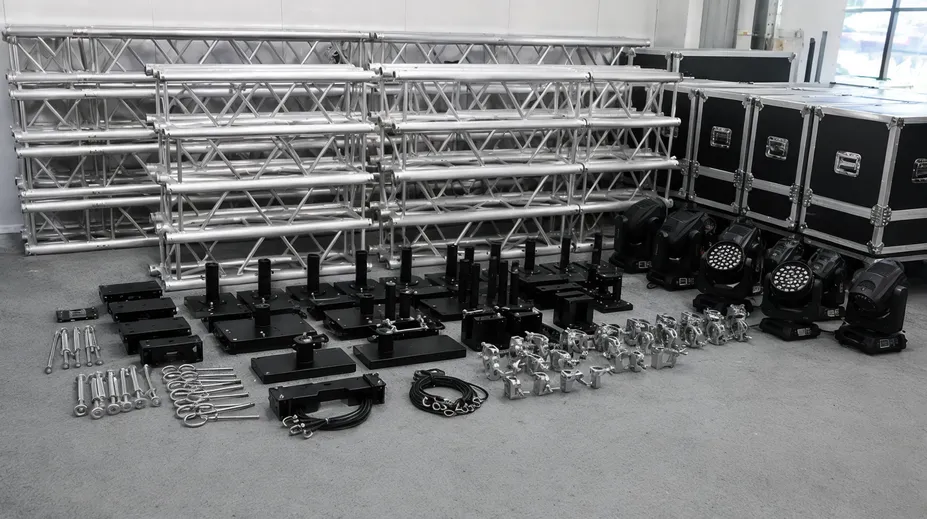

Packaging and Branding
- Your logo on every fixture housing (laser engraved or pad printed)
- Custom flight case colors and branding panels
- Your product model numbers, UPC codes, and multilingual documentation
- White-label packaging for blind drop-ship to your distribution network
Customization MOQ
30 complete systems for branding and fixture configuration changes. 100 systems for custom truss finishes or proprietary tooling. All customization confirmed during sample phase before production commitment.
We'll return a detailed spec and pricing within 48 hours
Compliance Documentation That Clears Your Imports
Every DJ lighting truss setup we ship carries documentation for the target market. This isn't an afterthought — the compliance file is assembled alongside the product.
Electrical Safety
CE marking (LVD + EMC directives) for EU markets, FCC Part 15 Class B for North America. Test reports from accredited labs available with your shipment documentation. Your customs broker gets what they need to clear the container without holds or supplementary testing requests.
Materials Compliance
Full RoHS declaration covering all electronic components — no restricted substances in solder, PCB substrate, housing coatings, or cable insulation. REACH-compliant material declarations available for EU distributors who need them in their import files.
Structural Safety
TÜV-rated truss joints with load test certificates. EN 13814 compliance for truss structures used in event installations. Safety working load (SWL) clearly marked on each truss section. If your market requires specific structural certification (e.g., AS 4991 for Australia), we can arrange third-party testing during production.
IP Ratings
IP20 standard on indoor DJ lighting truss setups. IP65 configurations available for outdoor/festival deployment — sealed fixture optics, cable glands on all connections, corrosion-resistant hardware. IP rating verified by laboratory water ingress testing, not self-declared.
We've seen containers held at EU ports because the supplier couldn't produce an EMC test report. Our documentation package goes in the shipping file automatically. You shouldn't have to chase paperwork after the goods are on water.
Container Loading for DJ Lighting Truss Setup Orders
Truss systems are dimensionally challenging for container efficiency. We've standardized packaging geometry to maximize your loading factor and minimize your per-unit freight cost.
| Package Type | Dimensions | Units per 40HQ | Notes |
|---|---|---|---|
| Compact rig (2 cases) | 1.6m × 0.4m × 0.4m per case | 60–70 complete systems | Cases stack 3-high with foam separators |
| Professional rig (4 cases + truss bag) | Mixed dimensions, palletized | 28–36 complete systems | Pre-palletized as complete systems |
| Large-scale rig (6 cases + dolly) | Mixed dimensions, palletized | 14–18 complete systems | Requires 40HQ, not 20GP |
| Truss sections only (bulk) | 1.5m × 0.3m × 0.3m nested | 192 sections per 40HQ | Nested stacking in groups of 4 |

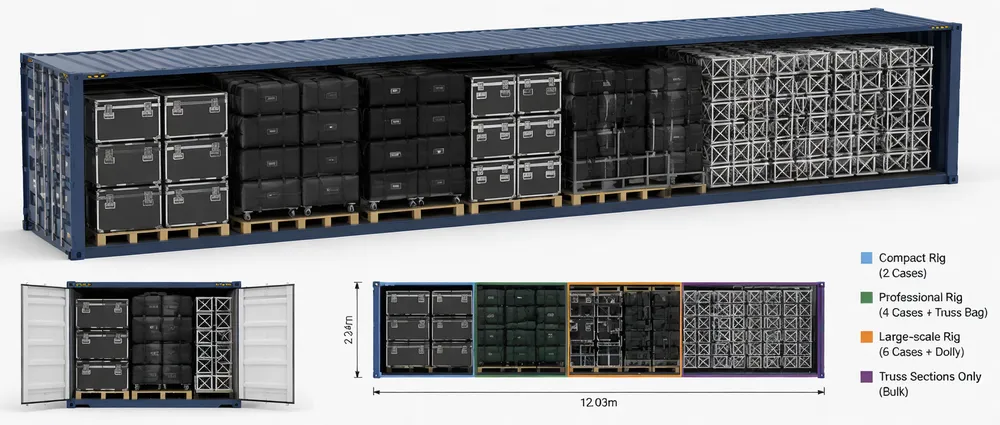

Detailed Loading Plan With Every Order
We provide a detailed loading plan with your order confirmation — exact pallet positions, gross weight per pallet, and total CBM. Your freight forwarder quotes accurately, and your warehouse team knows what's arriving before the container opens.
Mixed-Configuration Optimization
For mixed-configuration orders (e.g., 20 compact + 10 professional rigs in one container), we optimize the loading arrangement and send you a 3D packing diagram. The goal is zero wasted space and zero movement in transit — shifting cargo damages both the product and your margin.
Frequently Asked Questions About DJ Lighting Truss Setup Sourcing
What aluminum alloy grade should I specify for DJ lighting truss that survives 200+ rental cycles?
6061-T6 is the correct choice for rental-grade truss. It has nearly 30% higher yield strength than 6063-T5, which matters when truss sections are assembled and disassembled repeatedly — the joint connection points take cumulative stress from pin insertion, and softer alloys develop oval holes after 100–150 cycles. We use 6061-T6 as standard on all our DJ lighting truss setups. Wall thickness is 2.0mm on main chords and 1.5mm on cross-braces — this balances weight (your crew lifts it overhead) against stiffness (your fixtures don't sway mid-show).
How do I prevent fixture clamp marks from damaging the truss over time?
This is a real problem in rental fleets — bare steel clamps on aluminum truss create galvanic corrosion and score marks that weaken the tube over time. Our half-coupler clamps include a protective polymer liner between the steel jaw and the truss tube. The liner distributes clamping force, prevents metal-on-metal contact, and is replaceable as a wear item. We ship 10% spare liners with every kit order. If your fleet already has third-party clamps without liners, specify liner-equipped clamps in your order — the cost difference is $0.40 per clamp.
What's the maximum safe span for a DJ lighting truss loaded with moving heads without visible deflection?
For our standard 290mm × 290mm box truss (6061-T6, 2.0mm wall), the maximum span before visible deflection (>3mm at center) depends on load: 4.0m with a uniformly distributed 100 kg load, or 3.0m with 200 kg concentrated at center. Our 350W moving heads weigh 18 kg each — so a 4m span can hold 5 moving heads without visible deflection. For spans over 4m, we recommend adding a mid-span vertical support or switching to our 400mm × 400mm heavy-duty truss profile, which maintains deflection under 3mm to 6m spans with the same load.
Can I mix fixture types within one DJ lights truss system setup and still maintain color consistency?
Yes, with one constraint: the LED chips across all fixtures in the system must come from the same color bin. We enforce this at production — all fixtures destined for the same truss kit are built from the same LED batch, binned to ±50K color temperature. This means your PAR fixtures and your wash bars will produce visually identical whites and matched saturated colors, even though they're different fixture types with different optics. If you order replacement fixtures later, specify "color-matched to original batch" and we'll pull from the same bin range or verify color match on the integrating sphere before shipping.
What's the MOQ for a DJ lighting truss setup with custom branding and modified specifications?
30 complete systems is the minimum for branding (logo, packaging, documentation) on standard configurations. For modified specifications (non-standard truss lengths, custom fixture selections, proprietary DMX programming), we typically require a sample phase first — one production-representative sample built to your spec for approval before the 30-unit minimum production run. The sample cost applies against your first production order. Custom truss tooling (non-standard profiles) requires 100-system MOQ to amortize tooling investment.
If This Configuration Isn't the Right Fit
DJ lighting truss setups serve the professional rental and production tier. If your market needs something different, these alternative configurations may align better with your buyer profile and margin model.
Compact Booth Installations
Fixed-mount setups that don't require overhead rigging or dedicated crew. High impact in a tool-free, single-operator format. Lower price point, higher volume potential per order.
DJ Booth Lights SetupIntegrated Audio-Visual Packages
For the one-operator mobile DJ who needs sound and light in two cases. Combines powered speakers with sound-reactive lighting. Different buyer, different margin model, but complementary SKU if you're building a full setup product line.
DJ Lights & Speakers SetupIndividual Fixtures & Standalone Components
If you're sourcing fixtures only and handling truss separately, browse fixture-level options and standalone components across the full DJ lights setup catalog.
Full DJ Lights Setup CatalogStart With a Sample Truss System
Most buyers who source DJ lighting truss setups from us begin with one production sample. You pick the tier — compact, professional, or large-scale — and we ship a fully assembled, fully tested system within 7–10 days.
Evaluate the Sample
Mount it in your showroom, rig it at a test event, let your technicians evaluate build quality and setup ergonomics firsthand.
First Production Order
If the sample meets your standard, first production orders start at 30 systems. We allocate dedicated line time and apply your branding.
Scale With Capacity
Ship within 25–30 days of artwork approval. 6 production lines and 350,000-unit annual capacity mean your 200-system order runs without queuing behind other buyers.
Send your target market, preferred system configuration, and expected annual volume. We'll respond with a recommended spec, FOB pricing, and a container loading plan within 48 hours.
