Warm White Stage Lighting Spotlight
Factory-direct COB LED spotlight built for theatre, broadcast, and hospitality — 3000-3200K CCT with flicker-free DMX dimming.
Consistent color rendering across production runs, so your entire inventory delivers the same warm tone regardless of batch. 48-hour aging test on every unit before shipment.
What This Spotlight Is — and Who Profits From It

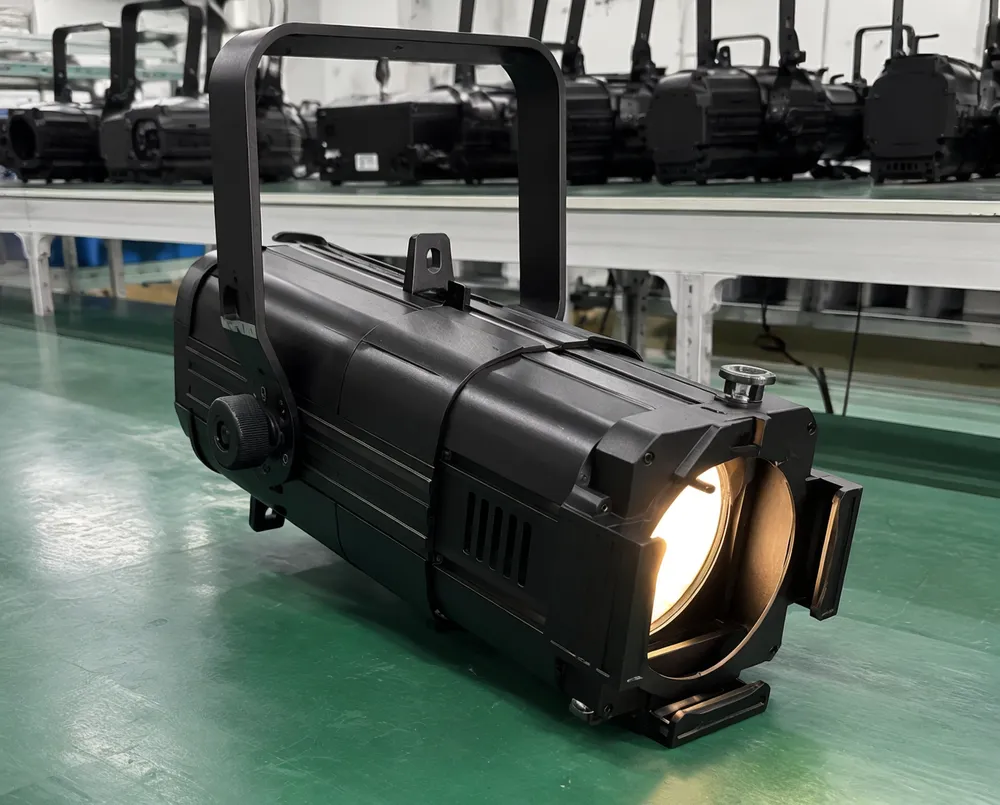

The warm white stage lighting spotlight is a fixed-CCT LED profile fixture designed around a single mission: produce flattering, natural-looking warm light at 3000-3200K with a CRI above 90. It uses a high-power COB (Chip-on-Board) LED source rather than discrete LED arrays, which gives you a single-point source with clean shadow edges and smooth dimming from 0-100% without color shift.
This isn't a multi-color wash or an effects light. It's the workhorse fixture that theatres mount on front-of-house bars, broadcast studios hang above interview sets, hotels install in ballroom rigs, and houses of worship use on pulpit positions. The warm white tone flatters skin, makes wood and fabric glow, and reads as "premium" in any venue where audience perception matters.
For your business, this fixture opens several stable reorder segments: theatre and performing arts (municipal theatres replace fixtures on 5-7 year cycles), houses of worship (growing market segment with consistent budgets), broadcast/streaming studios (exploding demand), and hospitality AV (hotels, conference centers, wedding venues). The golden stage lighting spotlight variant at the warmer end of the range specifically targets hospitality and theatrical buyers who want that incandescent-replacement look without the heat load or lamp replacement cost.
Distributor Insight
We've seen our warm white spotlight become a gateway SKU for distributors — once a venue installs it on key positions, they come back for wash fixtures, follow spots, and dimmers from the same supplier. The attachment rate is real.
Key Reorder Segments
Municipal theatres replace fixtures on 5-7 year cycles. Stable, predictable reorders.
Growing market segment with consistent budgets and expanding AV needs.
Exploding demand driven by content creation and studio buildouts worldwide.
Hotels, conference centers, and wedding venues seeking incandescent-replacement warmth.
Technical Specifications — Numbers You Can Put on a Comparison Sheet
Custom Configurations
Specifications shown are standard production values. Custom CCT, wattage, or beam configurations are available — contact us for a detailed product data sheet matching your project requirements.
Key Highlights
The universal voltage input (100-240V) means you stock one SKU for all export markets rather than holding regional variants. We configure plug types and cable lengths per destination during production.
Need Full Specs?
Request a detailed product data sheet with photometric data, dimensional drawings, and IES files.

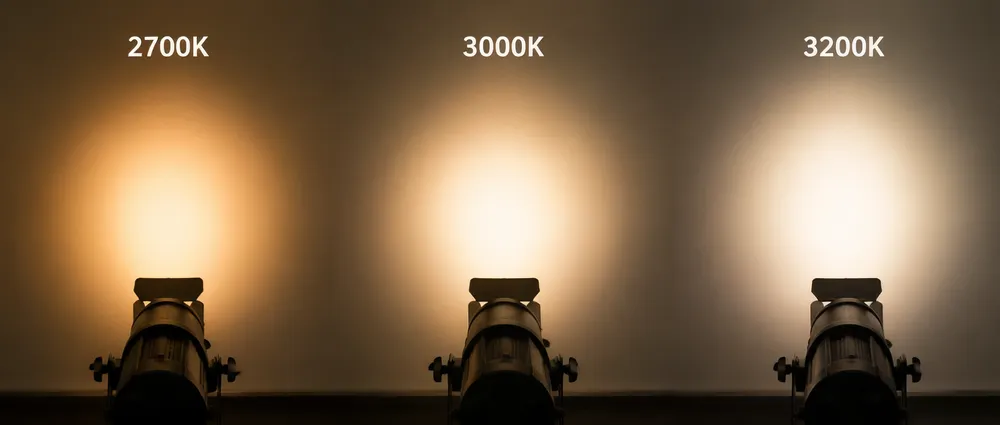

Request Data SheetWhy 3000-3200K Specifically — The Commercial Logic
Color temperature isn't an aesthetic preference at this level — it's a market positioning choice. The 3000-3200K range sits in a specific commercial sweet spot:
Tungsten-Halogen Replacement
It directly replaces traditional tungsten-halogen sources (3200K) that theatres and studios are phasing out worldwide. Venues retiring their ETC Source Four tungsten inventory need LED replacements that match their existing gel libraries and cue programming. A warm white LED spotlight at 3200K drops into the same rig positions without re-cueing every show.
Hospitality & Event Venues
For hospitality and event venues, 3000K reads as inviting and upscale — it's the color temperature luxury hotels use throughout their lighting design. When a ballroom AV contractor specifies warm white spotlights, they're matching the architectural lighting already in the space.
Golden Stage Lighting (2700-3000K)
The golden stage lighting spotlight designation (targeting the 2700-3000K end) serves the subset of buyers specifically replacing incandescent fresnels and scoops in theatrical and television applications where an even warmer, amber-shifted tone is needed. We can tune the CCT during production to your target market's preference.
One Fixture Platform, Three Market Applications
For your catalog, this means one fixture platform covers three distinct market applications: theatrical tungsten replacement, broadcast key lighting, and hospitality accent/feature lighting. Three sales conversations from one product line.
Optical Performance That Protects Your Reputation
Every optical decision in this fixture is driven by a single commercial truth: your theatre and broadcast customers will notice bad light quality immediately — and they'll return the fixture if it underperforms.

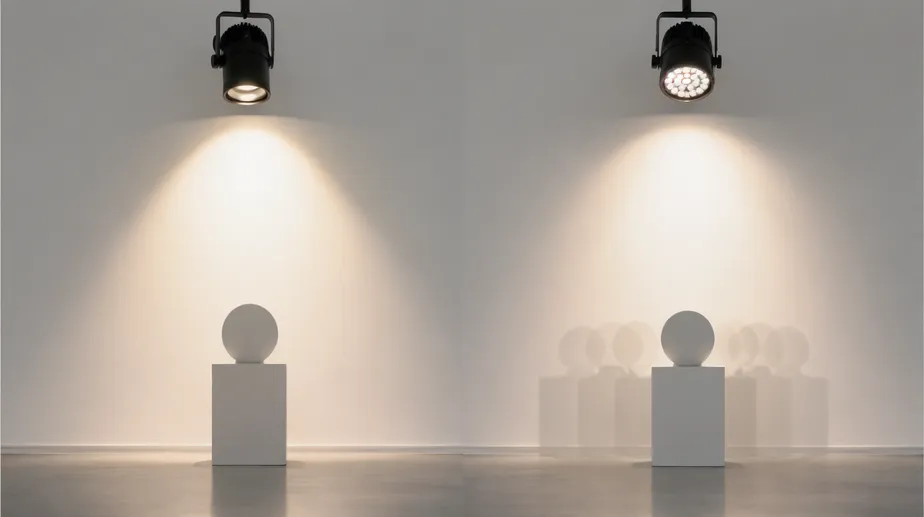

Single COB Die — Clean Shadow Quality
We build the optical assembly around a single COB die rather than an LED array for one reason that matters commercially: shadow quality. A single-point source produces one clean shadow edge, just like a traditional fixture.
Multi-die LED arrays create multiple shadows that look unnatural on stage. Your theatre and broadcast customers will notice this immediately — and they'll return the fixture if shadows look wrong.

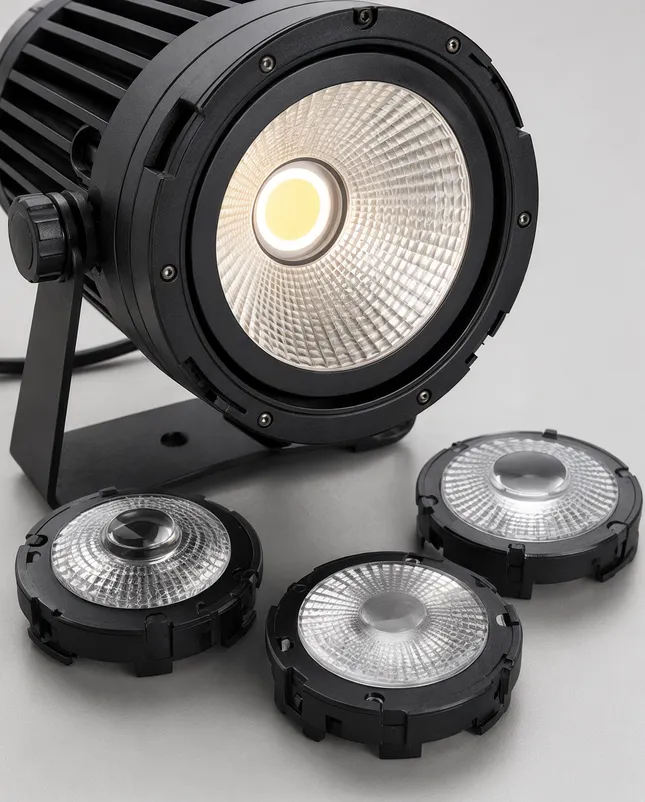

Interchangeable Beam Angle Modules
The lens system uses interchangeable beam angle modules (15°, 25°, 36°, 50°) rather than a single fixed optic. We machine each lens holder to ±0.1mm tolerance so the lenses swap cleanly in the field without tools.
This means your customers buy one fixture and multiple lens sets, which increases your per-sale value and gives you a consumable/accessory revenue stream.
Tolerance: ±0.1mm per lens holder — tool-free field swap.
CRI ≥92 Production Standard
CRI ≥92 is our production standard, not a cherry-picked lab sample. We verify color rendering on the integrating sphere during QC — every batch, not spot-checks.
We set our internal CRI floor at 92 specifically because broadcast studios won't accept anything below 90, and giving ourselves a 2-point margin means no borderline rejections arrive at your customer's studio.
Flicker-Free Dimming — 25kHz+ PWM
Flicker-free dimming uses high-frequency PWM at 25kHz+, well above the threshold where broadcast cameras detect flicker.
This is non-negotiable for studio and streaming applications — a flickering spotlight is an instant return and a damaged relationship with your customer.

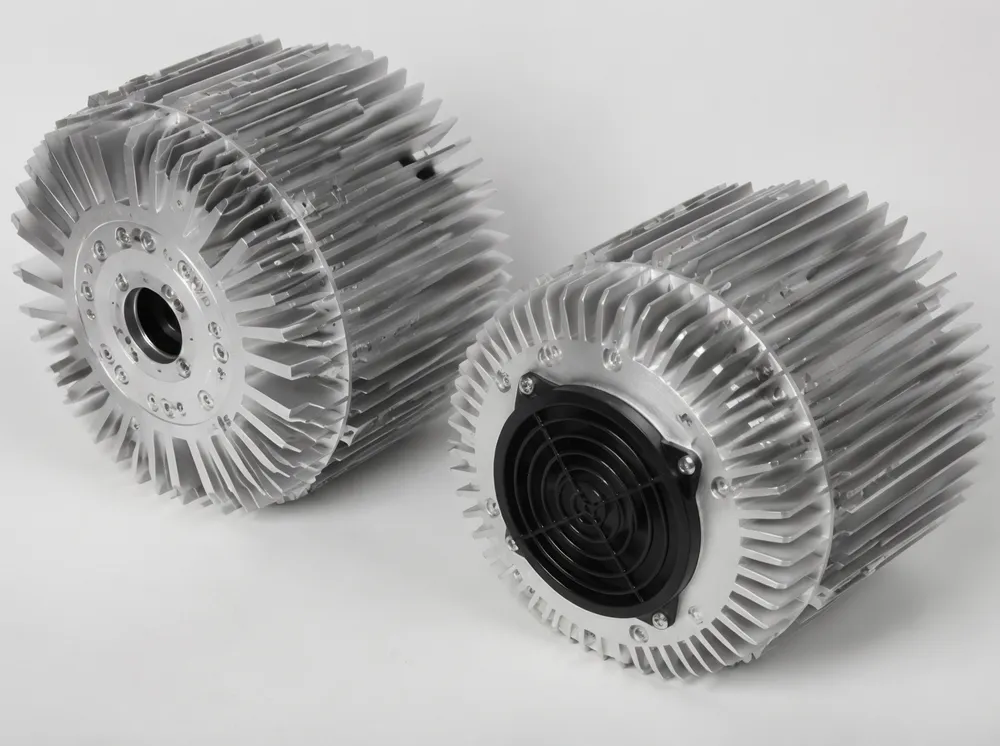

Thermal Design — How Heat Management Affects Your Warranty Cost
A warm white spotlight running at 200–300W produces serious thermal load at the LED junction. If junction temperature exceeds 85°C, the LED degrades faster, CCT shifts warmer over time, and lumen output drops below spec before reaching rated lifespan. The result: warranty claims 18–24 months after installation.
200W Model — Fully Passive
Passive heatsink with chimney-effect airflow. No fan, no fan noise, no fan failures. Machined in-house from 6063 aluminum with fin geometry optimized for this wattage variant.
300W Model — Temperature-Controlled Fan
Brushless fan activates only above 35°C ambient. Noise stays below 25dB at 1 meter. Theatre buyers insist on silent operation during performances — the fan trigger threshold was designed specifically around this requirement.
Junction Temperature: Below 75°C
Full output in 25°C ambient. That's a 10°C margin below the degradation threshold — translating to full-rated 50,000-hour lifespan under real operating conditions, not just lab conditions.
What This Means for Your Business
No premature lumen depreciation means fewer warranty claims eroding your margin 18–24 months post-sale.
Longer intervals between replacement orders sounds counterintuitive, but builds trust and repeat business from your install base.
No field failures during shows that damage your reputation with end clients. The fixture holds spec through the entire performance run.
Manufacturing Process — What's Different About How We Build This Fixture

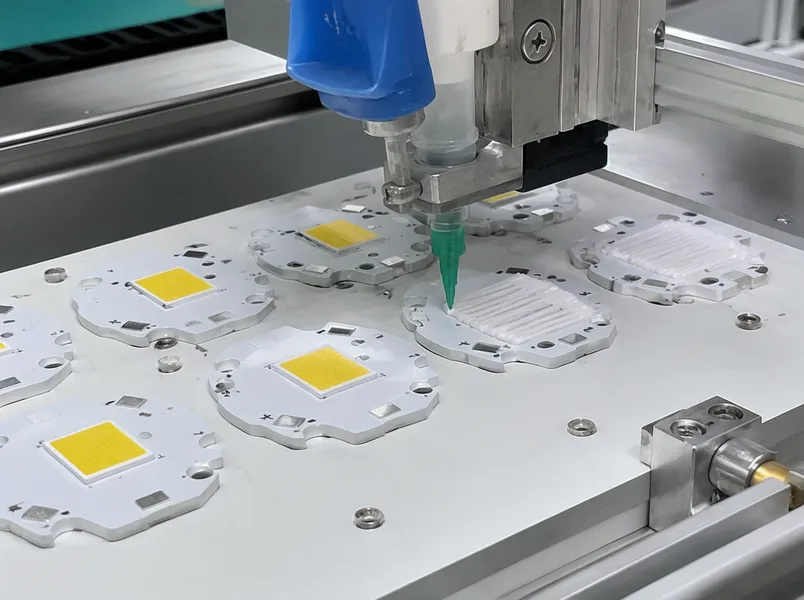

COB LED Module — MCPCB with Automated Thermal Compound
The COB LED module gets mounted on a metal-core PCB (MCPCB) with thermal paste interface to the heatsink. We use automated dispensing for the thermal compound — consistent 0.05mm bond line thickness across every unit.
Manual application produces air gaps and inconsistent thermal transfer, which is why some competitors' warm white spotlights show premature lumen depreciation after 6–12 months. Automated dispensing eliminates that variable.

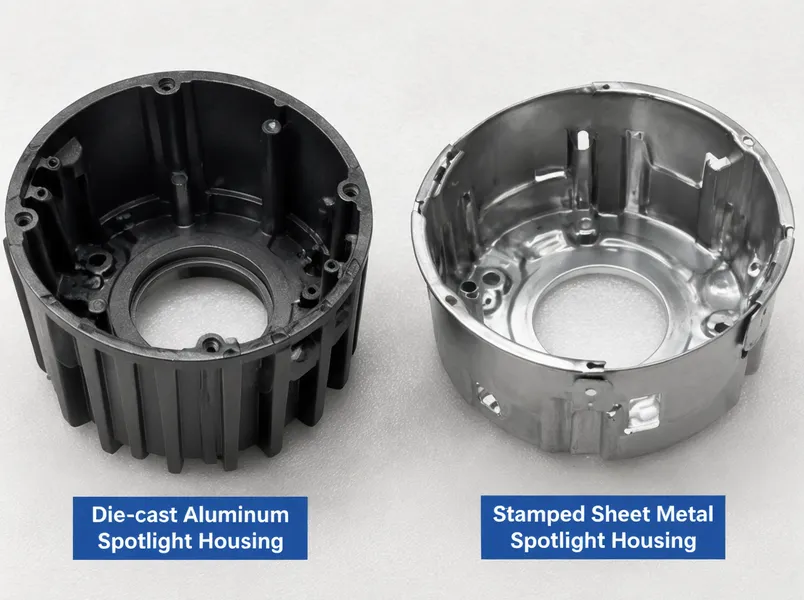

Die-Cast Aluminum Housing — Not Stamped Sheet Metal
Die-casting adds cost per unit, but eliminates flex under thermal cycling. A stamped housing expands and contracts with heat, which loosens optical alignment over thousands of power cycles.
Your customer notices the beam shifting off its mark six months after installation — by then they blame you, not the fixture. Die-cast stability prevents that failure mode entirely.

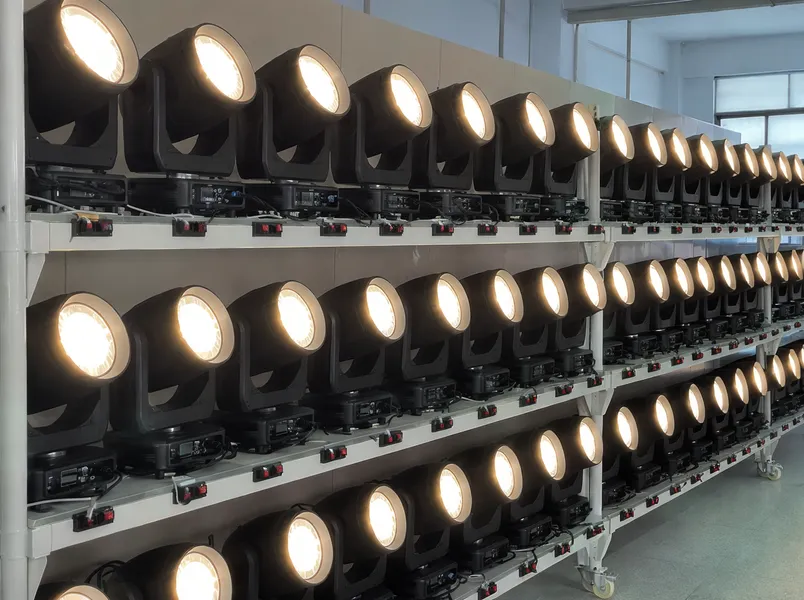

48-Hour Aging Test — Beyond Industry Standard
Every unit runs a standard 48-hour aging test at full electrical load before shipping. For the warm white spotlight specifically, we also measure CCT drift during the aging period.
Fresh COB LEDs settle slightly in their first 100 hours of operation — we burn through that settling period in our factory so the color temperature your customer installs is the color temperature that stays.
Why 48 hours instead of 24: The extra day catches late-onset thermal failures that industry-common 24-hour tests miss. Units that would fail at month 3 get caught at day 2 in our factory.

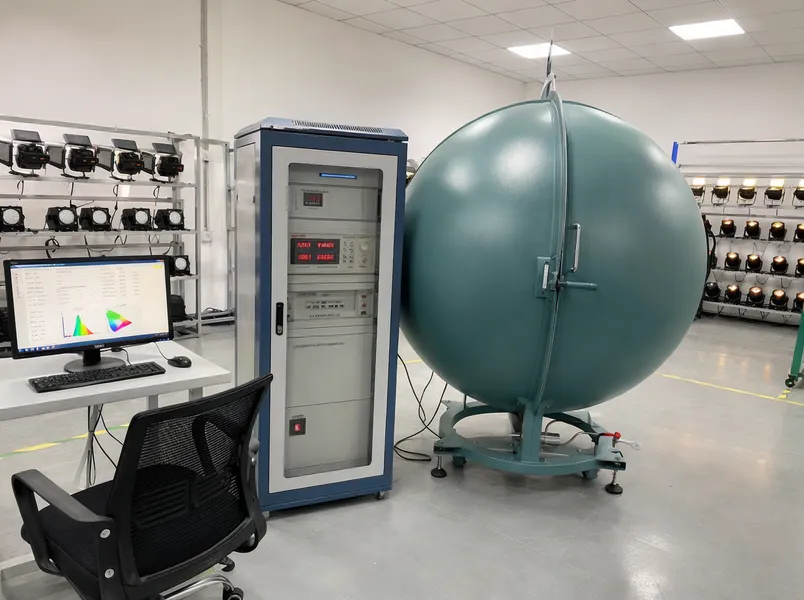

Integrating Sphere — Every Unit Verified
Post-aging, each unit gets verified on the integrating sphere: lumen output, CCT, CRI, and beam angle. The test data gets logged against the unit's serial number.
If you ever have a customer dispute about specs, we can pull the factory test record. That traceability protects your distribution agreements and gives you documentation backing for any warranty discussions.
Bond line consistency
Full-load aging test
Sphere-verified per unit
Traceable test records
Market Segments Where Your Buyers Profit

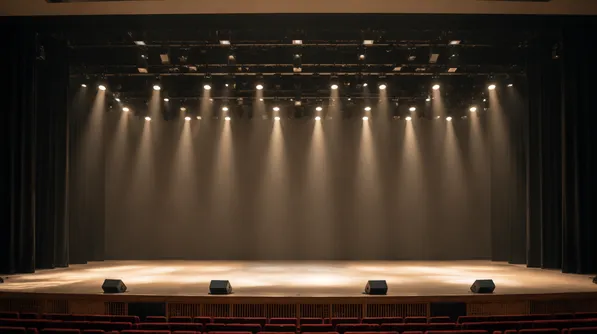

Theatre and Performing Arts
Municipal and community theatres replacing halogen inventory represent bulk orders in the 20-100 fixture range per venue.
Purchasing cycles are budget-driven (annual or biennial capital budgets), and decisions are made by technical directors who specify exact CCT matches to existing stock.
If you carry the warm white spotlight at 3200K with a beam angle range that covers their standard positions, you become the default replacement supplier for the venue's lifecycle.
Broadcast and Streaming Studios
The studio market has fragmented — it's no longer just television networks. Corporate studios, YouTube/streaming creators upgrading from consumer lights, podcast studios, and university media departments all need warm white key lights with high CRI and flicker-free dimming.
Orders are smaller (5-20 units) but margins are higher because these buyers pay for CRI and flicker specifications, not just lumens.

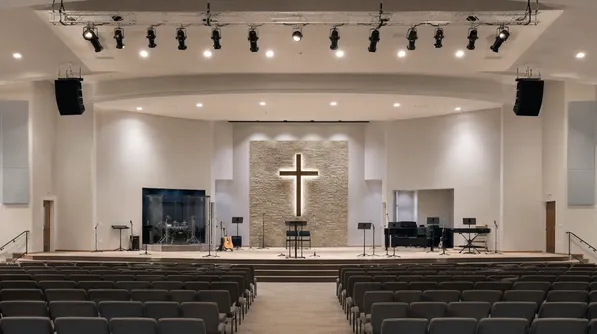

Houses of Worship
Churches, mosques, and temples with modern AV systems represent consistent annual budgets for lighting upgrades. Warm white is the universal preference for worship environments — it reads as reverent and welcoming.
Typical orders run 10-50 spotlights for a main sanctuary, with expansion as satellite campuses open.
Hospitality and Event AV
Wedding venues, hotel ballrooms, and conference centers need warm accent lighting that matches their architectural fixtures.
AV contractors servicing these venues buy in bulk (30-100 units per fleet expansion) and replace on 3-5 year cycles as LED technology improves.
The golden stage lighting spotlight variant at 3000K specifically targets this segment.

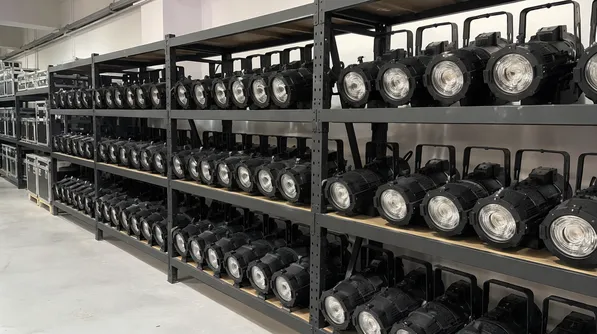

Rental and Production Companies
Rental houses stock warm white spotlights as a core inventory item — they deploy on corporate events, galas, and theatrical touring productions.
The interchangeable lens system means they carry one fixture type with multiple lens sets, reducing inventory complexity.
High rental utilization (200+ days/year) means they value the 50,000-hour lifespan because downtime for repairs kills rental revenue.
Tell us your target market — we'll recommend the right wattage and configuration
Discuss Your MarketCustomization Available on This Product
| Customization Dimension | Standard Options | Custom (OEM/ODM) |
|---|---|---|
| Color Temperature | 3000K, 3200K | Any CCT 2700-3500K to ±50K tolerance |
| Wattage | 100W, 200W, 300W | Custom wattage to match your market requirements |
| Beam Angle | 15°, 25°, 36°, 50° | Custom angle or zoom mechanism |
| Housing Color | Black (standard) | White, custom RAL color (MOQ 100 units) |
| Control Protocol | DMX512 | Add wireless DMX, Art-Net, sACN, or proprietary protocol |
| Branding | GDMonkey standard | Your logo, model number, firmware splash screen, packaging |
| IP Rating | IP20 indoor | IP65 outdoor variant available |
| Connector Type | PowerCon + XLR 5-pin | Custom connector to match your regional standards |
| Mounting | Standard yoke | Custom bracket, truss adapter, or flush-mount option |
MOQ
Standard configurations start at 30 units — enough to fill a trial order for a new distributor or a single-venue project.
Custom tooling (new housing shape, new optical design) typically requires 200-500 unit MOQ depending on complexity.
Lead Time
- Standard products: 20-25 days from order confirmation
- Custom branding (logo, packaging): adds 3-5 days
- Full custom optical/mechanical: 35-45 days including sample approval
Honest Note on Small Orders
If you need fewer than 30 units with custom branding, the printing setup cost per unit becomes impractical for both of us.
At 30+ units, we absorb the branding cost into the unit price.
Below that, we can offer standard packaging with your brand sticker — not as polished, but keeps your landed cost reasonable for market testing.
Compliance and Certifications Pre-Qualified for Import
| Certification | Coverage | What It Means for Your Import |
|---|---|---|
| CE | EU market access | No additional testing needed for European distribution |
| RoHS | Restricted substances compliant | Meets EU environmental directives, required for EU sale |
| FCC Part 15 | US/Canada EMC | No radio frequency interference issues at customs |
| ISO 9001:2015 | Quality management system | Your procurement team can check the box on supplier audits |
| IP65 (outdoor variant) | Ingress protection | Documented for outdoor installation specifications |

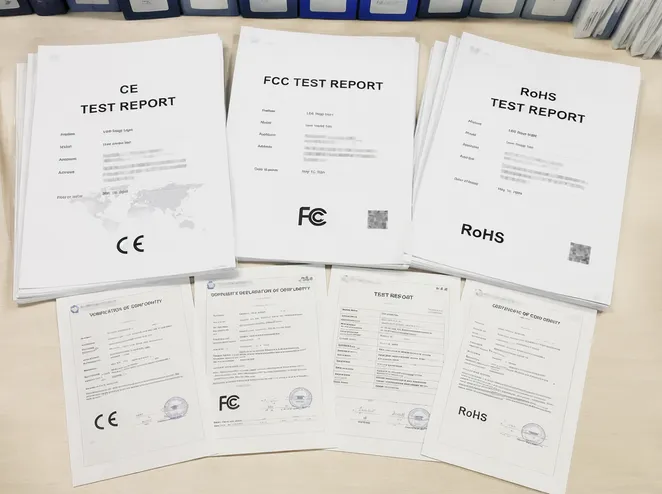

Documentation Included
Full test reports and declaration of conformity documents formatted to match your destination customs authority — EU CE dossier, US FCC SDoC, or other regional formats.
Target Market Certifications — Design for Compliance Early
For buyers importing into markets with specific stage lighting safety standards (UL, CSA, SAA), we can engineer the fixture to meet those standards and support third-party testing. Discuss your target certification requirements with us early in the process — designing for compliance is straightforward; retrofitting after tooling is expensive.
Request Compliance DocumentationPackaging and Logistics Container Loading and Damage Prevention

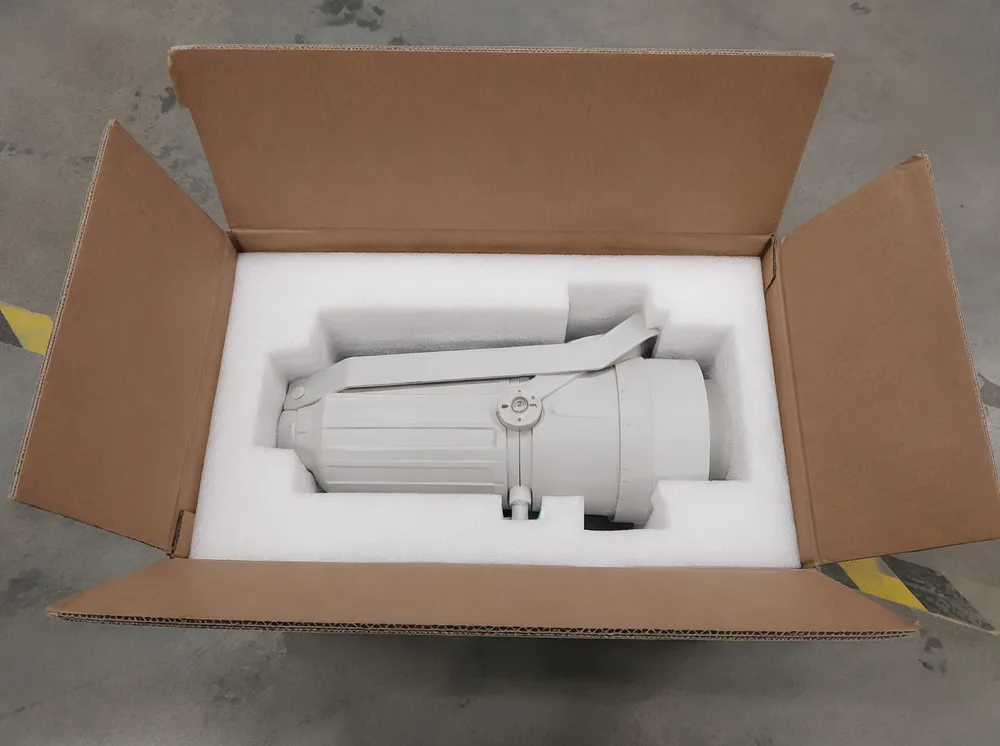

Individual Fixture Protection
Each warm white spotlight ships in individual molded foam packaging inside a corrugated master carton. The foam insert is CNC-cut to the fixture profile — not generic packing peanuts or bubble wrap that allows movement during transit.
- CNC-cut molded foam matched to fixture profile
- Master cartons stackable — rated for 5-high stacking
- Dimensioned to maximize container cube utilization
- Custom marking: PO number, SKU, and barcode labeling to match your warehouse receiving system
Container Loading — 200W Model
| Container Type | Units per Container | Palletized | Loose-loaded |
|---|---|---|---|
| 20' GP | ~400 units | ||
| 40' HQ | ~900 units |
Pallet Options
Pallet configuration follows your specification — EUR pallet, US standard, or freestanding. Tell us your warehouse requirements.
Smaller Orders
For 30–100 units, we ship via air freight or LCL ocean with proper export packaging. Same CNC-foam protection at any volume.
Damage Rate
Damage rate across all shipments over the last 12 months: less than 0.3%.
E-Commerce & FBA Fulfillment Packaging
If you're running an Amazon FBA operation or e-commerce fulfillment, we can configure individual retail-ready packaging with UPC barcoding and poly-bag protection. Different game than B2B bulk packaging — tell us your channel and we'll configure accordingly.
Frequently Asked Questions
What CRI rating should I specify for broadcast and studio warm white spotlights?
Minimum CRI 90 for any broadcast application — below 90, skin tones appear washed out and color grading in post-production becomes unreliable. Our standard production sits at CRI ≥92, which gives comfortable headroom above the broadcast minimum.
For film and high-end television work, ask about our extended-CRI variant (CRI ≥95, R9 ≥80) which renders saturated reds accurately under camera.
What's the difference between a warm white spotlight and a variable-CCT spotlight?
A fixed warm white spotlight uses a single CCT LED source optimized for that color temperature — maximum efficiency, highest CRI, and consistent output across the entire production run. A variable-CCT fixture mixes warm and cool LEDs to achieve adjustable color temperature, which trades away 15-25% of total output and typically delivers lower CRI at the extremes of its range.
If your customers always need warm white, the fixed CCT fixture gives them more light, better color, and lower power consumption per lumen.
Variable-CCT makes sense only when the same fixture genuinely needs to produce both warm and cool settings in daily operation.
Can the warm white spotlight dim smoothly to very low levels without visible stepping or color shift?
Yes — our driver architecture supports dimming to 0.1% output with 16-bit resolution (65,536 steps from full to off). The COB source maintains its 3000-3200K color temperature throughout the dimming range, unlike some phosphor-converted LEDs that shift blue at low levels.
This matters for theatrical applications where slow fades to near-blackout are standard cue types.
What's the MOQ for a private-label warm white spotlight with our branding?
30 units minimum for private-label packaging (your logo, model number, and branding on the fixture and packaging). Below 30 units, the print setup costs per unit make custom packaging impractical.
Standard fixture with your brand sticker is available at any quantity for market testing purposes.
How does the warm white spotlight compare to using a full-color LED fixture with amber/warm presets?
A full-color RGBW or RGBA fixture can approximate warm white, but the color rendering suffers. RGBW mixing typically achieves CRI 70-80 in warm presets — acceptable for wash lighting at a distance, but inadequate for key lighting where skin tones must look natural.
The dedicated warm white COB source delivers CRI 92+ because the phosphor chemistry is optimized for a single CCT rather than spread across the entire visible spectrum.
If the application is purely warm white key lighting, the dedicated fixture outperforms a multi-color fixture in every metric that matters: CRI, lumen output per watt, beam uniformity, and shadow quality.
Related Spotlights — Finding the Right Fit
If the warm white spotlight doesn't match your specific requirement, other fixtures in our stage lighting spotlight range may be the better fit:
DMX Spotlight
Full DMX control with adjustable CCT for venues that change configurations daily. Variable color temperature when your customers need flexibility.
Learn moreMoving Head Spotlight
Pan/tilt capability for touring and rental fleets that need repositioning without rigging access. Motorized movement with DMX addressing.
Learn moreTheatre Spotlight
Includes gobo wheel and iris for traditional theatrical applications. Gobo projection and precise beam shaping for dramatic stage effects.
Learn moreStage Flood Lights
Wide-area coverage when you need to light a full stage rather than spot a performer. Broad wash delivery for cycloramas and backdrops.
Learn moreDJ Spotlight
Color effects and sound-reactive modes for the entertainment rental market. Adds dynamic programming for DJ and event applications.
Learn moreCross-Compatible Mounting System
Each fixture in the range uses the same mounting system, connector standards, and DMX addressing protocol — your customers can mix and match within a single rig without compatibility headaches.
Get a Quote for This Warm White Spotlight
Send us your requirements — target market, quantity, any custom CCT or branding needs — and our engineering team will come back with a detailed specification sheet and FOB pricing within 48 hours.
Most new distributors start with a 30-unit sample order to test the fixture with their own customers before scaling. We ship production samples within 7 days so you can evaluate build quality, light output, and dimming performance firsthand.
