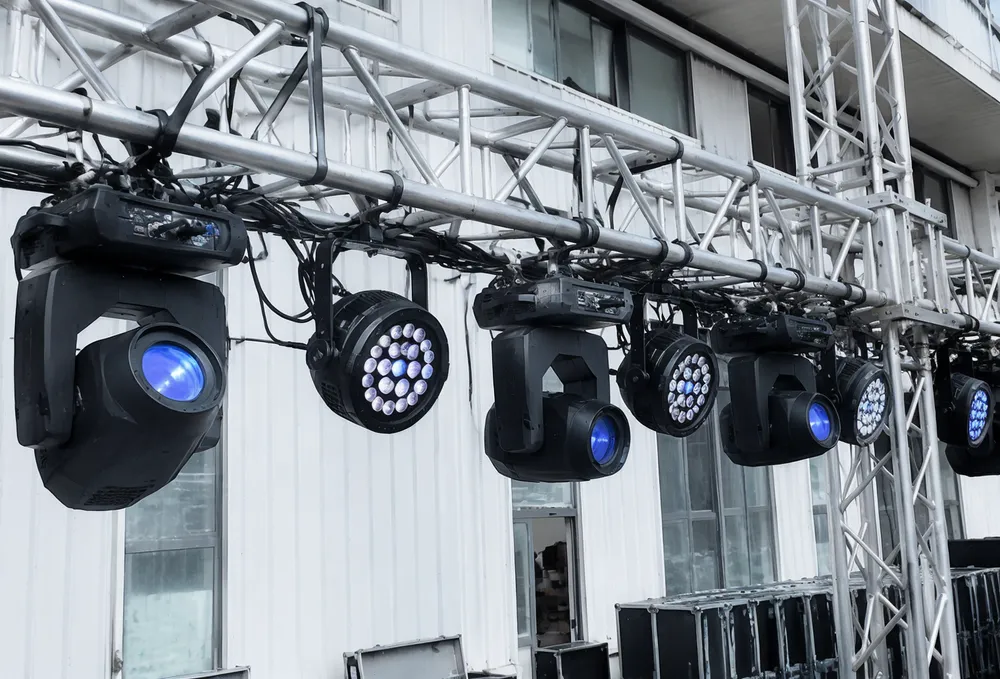

Event Stage Lighting Engineered for the Event Cycle
Fixtures designed around the event cycle: quick rigging, DMX or wireless control, IP65 weather protection, and housing durability that survives 200+ load-in/load-out cycles per year.
What Makes Event Stage Lighting a Distinct Product Category
Event stage lighting occupies a specific niche between permanent installation fixtures and portable party lights. Your buyers aren't mounting these once in a theatre and walking away — they're loading them into flight cases every weekend, rigging them on truss in a hotel ballroom on Friday, striking them Saturday night, and redeploying at a corporate conference Monday morning.
That usage pattern drives every design decision in this product line. Housings need impact resistance beyond what a fixed-install fixture requires. Connectors need to survive hundreds of mate/unmate cycles without intermittent contact. Optics need to deliver consistent output after vibration from road transport. And the entire fixture needs to rig and address fast, because your rental clients bill by the hour and every minute saved on load-in is margin preserved.
We build event stage lighting specifically for this duty cycle. The fixtures in this category share a design philosophy: road-ready mechanical construction, flexible control options (DMX512, wireless DMX, sound-active, master/slave), and thermal management that handles sustained full-output operation in enclosed tenting or ballroom environments where ambient temperatures run 35–40°C.
Field observation: Most fixture failures we see come back from exactly this scenario — outdoor summer events under tenting with zero airflow. Our thermal design accounts for that.
Impact-Resistant Housing
Beyond fixed-install requirements — built for road transport and repeated handling.
High-Cycle Connectors
Hundreds of mate/unmate cycles without intermittent contact or signal degradation.
Fast Rig & Address
Every minute saved on load-in is margin preserved for your rental clients.
Thermal Endurance
Sustained full-output in enclosed tenting and zero-airflow ballroom environments.
Technical Specifications for Procurement Comparison
Specifications shown are representative values across our event stage lighting range. Contact us with your exact requirements — we'll provide a detailed spec sheet for the specific model configuration.
| Parameter | Typical Specification |
|---|---|
| LED Source | High-power RGBWA+UV or RGBW arrays, 10W–40W per LED, Epistar/Cree-grade chips |
| Total Fixture Wattage | 54W–350W depending on configuration |
| Beam Angle | 15°–60° (motorized zoom available on select models) |
| Color Temperature Range | 2700K–8000K (variable white models available) |
| CRI | 90+ (warm white models) |
| Dimming | 0–100% linear, 16-bit smooth dimming |
| Control Protocol | DMX512, RDM, wireless DMX (optional), sound-active, master/slave, auto-run |
| DMX Channels | 4/6/8/10/12 channel modes |
| IP Rating | IP65 standard; IP67 available for full outdoor deployment |
| Housing Material | Die-cast aluminum with powder coat finish, 60–80μm thickness |
| Operating Temperature | -20°C to +45°C |
| Cooling | Convection + forced-air (temperature-controlled silent fans on higher-wattage models) |
| Power Input | AC 100–240V, 50/60Hz (universal input) |
| Connector | PowerCon in/out (daisy-chain capable), 3-pin + 5-pin XLR |
| Mounting | Omega bracket with quick-lock clamp compatibility, safety cable loop |
| Weight Range | 3.5kg–12kg depending on model |
| Certifications | CE FCC Part 15 RoHS IP65/IP67 |
Tell us your target configuration and we'll return a model-specific datasheet within 24 hours.
Revenue Segments Where Event Stage Lighting Sells
Event stage lighting isn't a single market — it's a fixture category that serves multiple revenue channels. Each segment below represents a repeatable order pattern for your distribution or rental business.

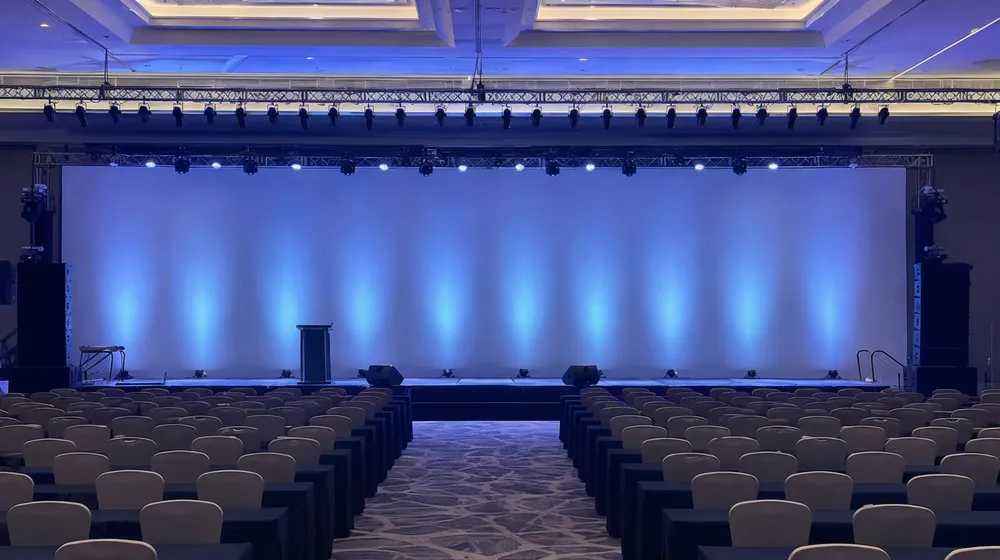

Corporate Events and Conferences
Corporate AV rental companies consume event stage lighting in high volume. A typical corporate conference requires 40-120 wash/spot fixtures per ballroom, and major AV houses run 15-30 events per month. These buyers value color consistency across large fixture counts (when 60 lights are washing a keynote stage, one unit at a different CCT is immediately visible), silent operation during speeches, and quick DMX addressing for fast changeovers between sessions.
Order Pattern
Initial fleet builds of 100-500 units, with 10-20% annual replacement for damaged/retired fixtures. High-margin segment because corporate clients pay premium rental rates.

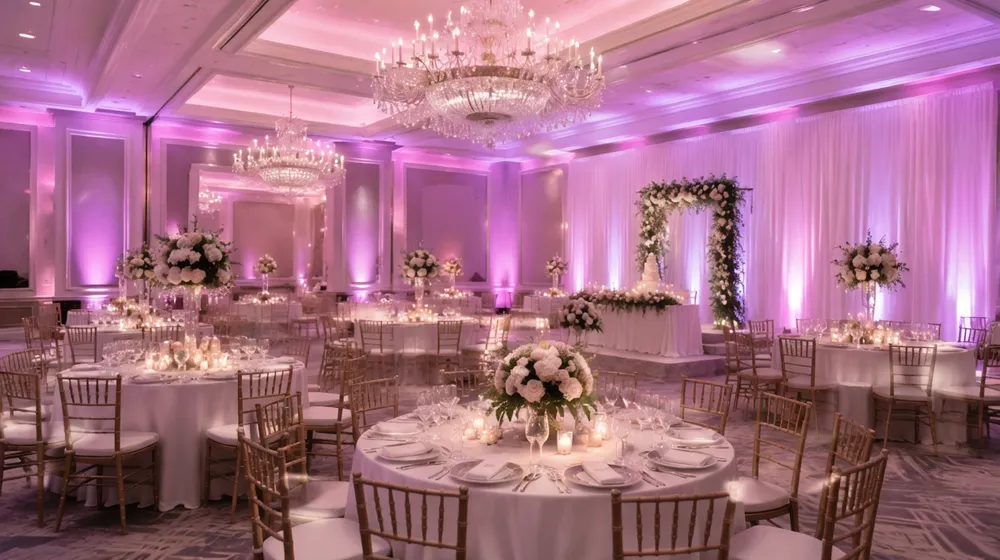

Weddings and Social Event Rentals
Wedding and event rental companies represent the highest reorder frequency in this category. They run year-round in most markets, with peak seasons pushing fixture utilization to 100%. The typical wedding package deploys 20-40 uplights, 8-16 moving effects, and 4-8 spot fixtures. Wireless DMX capability is critical here — venues like historic buildings and gardens don't have infrastructure for cable runs.
Order Pattern
Starter kits of 50-100 units for new rental companies, scaling to 300+ as fleet expands. Color accuracy matters — brides specify Pantone-matched uplighting, and your fixtures need to reproduce it consistently across the batch.

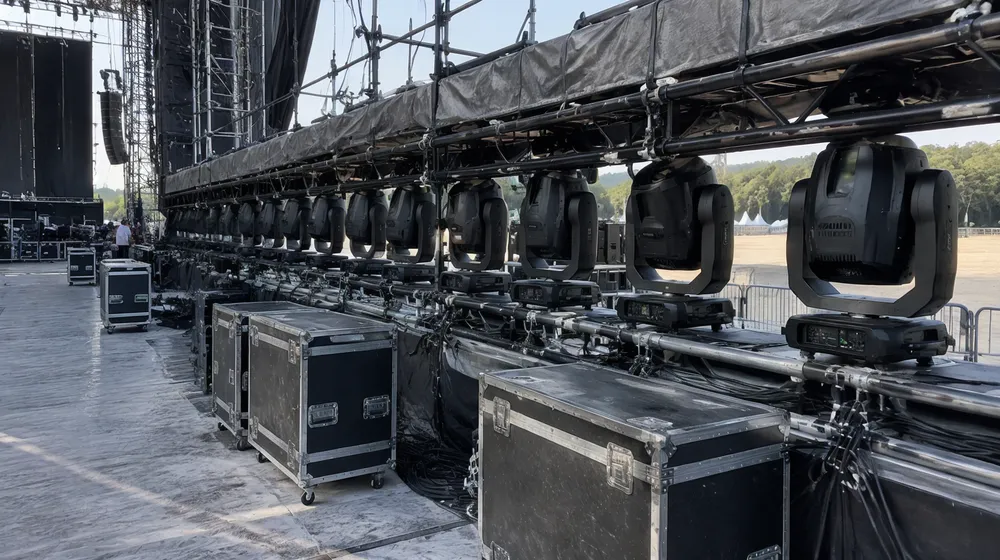

Touring and Live Music Production
Touring production companies need event stage lighting that survives road life. Flight-case compatible dimensions, reinforced yoke assemblies, and fast rigging hardware are non-negotiable. IP65 rating covers outdoor festival stages where rain is a real risk, not a theoretical one.
Order Pattern
Project-based purchases of 50-200 units for specific tour packages, plus ongoing replacement for road-damaged fixtures. These buyers pay for durability because downtime during a tour is catastrophic — a failed fixture at show time costs far more than the unit price.

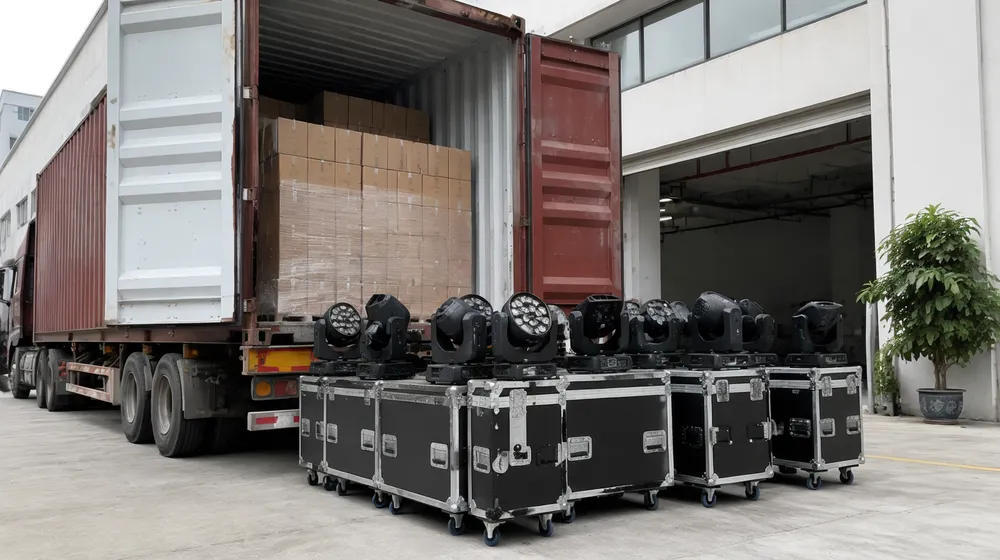

Event Production Companies (Emerging Markets)
Southeast Asia, the Middle East, and South America are building event infrastructure rapidly. New event companies in these regions need complete lighting packages — not one model at a time, but full-system solutions including wash, spot, effect, and control. This segment values competitive landed cost and voltage flexibility (our universal 100-240V input eliminates regional variant headaches).
Order Pattern
Container-quantity initial orders (500-1,000 units mixed SKUs) with reorders tied to business expansion. This segment has grown steadily over the past three years — if you're distributing into these regions, the demand curve is real.

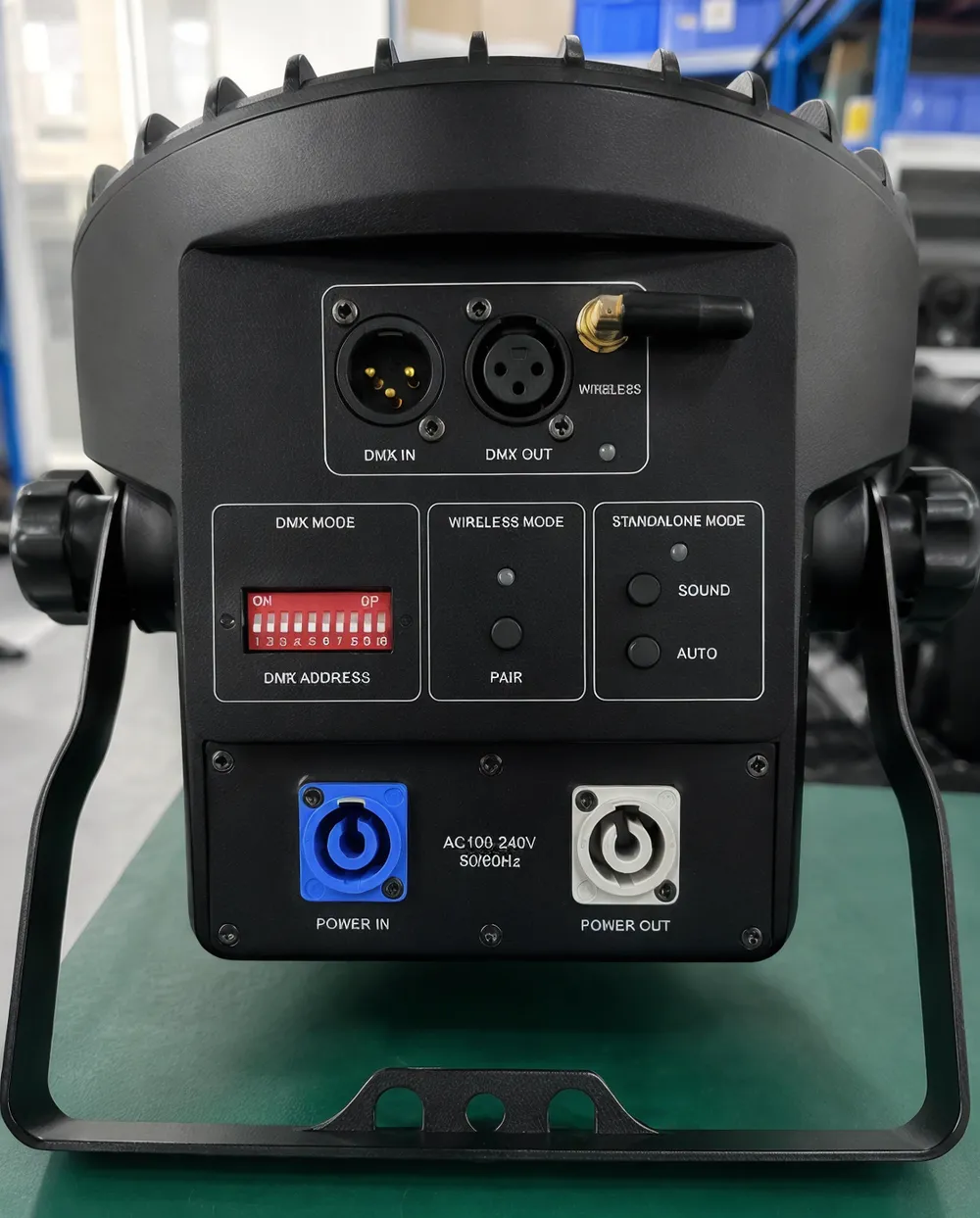

Control Flexibility: DMX, Wireless, and Standalone Operation
Event lighting doesn't always have a dedicated lighting operator or FOH console. Your fixtures need to work across the full spectrum — from professional DMX512 rigs with 200+ fixture universes down to a 20-unit wireless uplighting package controlled from an iPad by a wedding DJ.
One SKU, multiple markets: This multi-mode approach means one SKU covers your corporate AV rentals (DMX), your wedding uplighting packages (wireless), and your entry-level party rental kits (sound-active) — reducing your inventory complexity while expanding your addressable market.
We build every event stage lighting fixture with multiple control modes:
DMX512 with RDM
Full professional control. RDM (Remote Device Management) allows bidirectional communication — your rental techs can address and configure fixtures from the console without climbing ladders. 3-pin and 5-pin XLR on every unit.
Wireless DMX
Built-in receiver option (no external dongles to lose or damage). Compatible with standard W-DMX and proprietary protocols. Range tested to 100m line-of-sight — sufficient for most venue layouts.
Sound-Active Mode
Internal microphone with adjustable sensitivity. For applications where no control infrastructure exists — plug in, switch to sound mode, done.
Master/Slave
Link fixtures without a console. One unit controls the group via standard XLR cable.
Auto-Run Programs
Pre-programmed chase sequences and color fades. Built-in programs run on power-up for static installation scenarios.

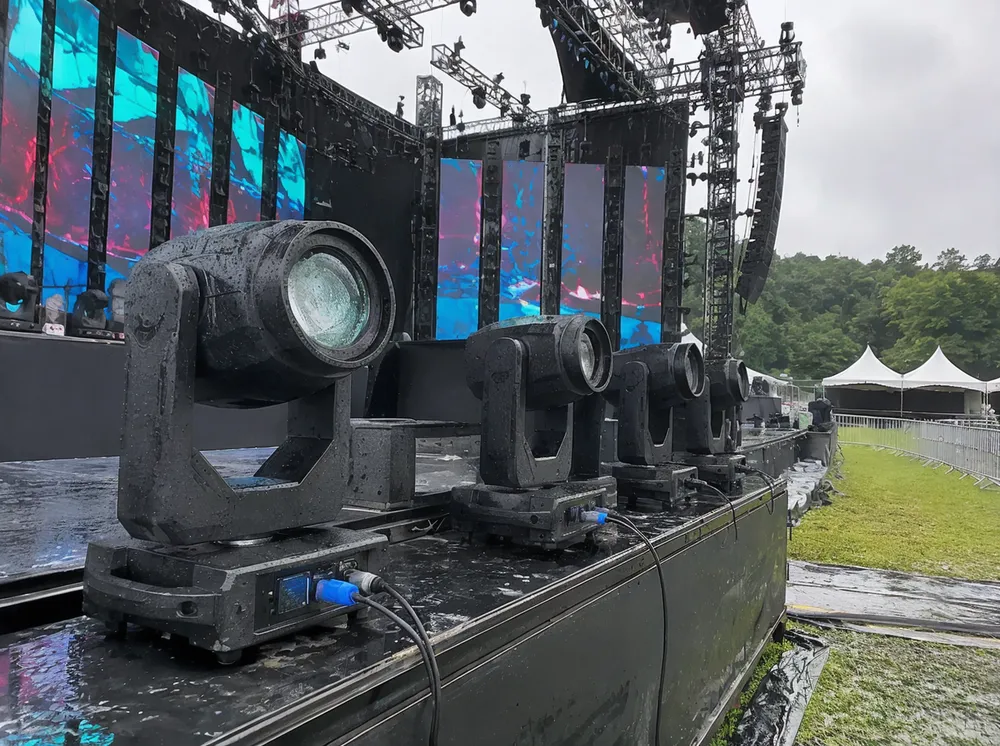

IP65/IP67 Weather Protection: Outdoor Revenue Without Separate Inventory
Outdoor events — festivals, garden weddings, corporate retreats, building projection — represent a growing share of the event market. But they require fixtures rated for weather exposure. Many rental companies maintain separate indoor and outdoor fleets, doubling their inventory investment.
Our event stage lighting line is IP65-rated as standard. That means complete dust ingress protection and resistance to water jets from any direction — covering rain, sprinkler overspray, and pressure washing between events. IP67 models (temporary submersion rated) are available for ground-mounted installations in areas prone to standing water.
What this means commercially: you stock one fixture fleet that deploys indoors or outdoors without restriction. No duplicate inventory, no last-minute scramble when an indoor event moves to a tent. Your capital efficiency improves because every fixture in your warehouse is deployable to every job.
We seal at the factory — gaskets, cable gland compression fittings, and conformal-coated PCBs are standard production steps, not aftermarket add-ons. This matters because retrofit IP ratings often fail at connectors after 50–100 mate cycles. Ours are designed for the connection count that event use demands.
Get IP65/IP67 Fixture Specifications
IP65
Dust-tight + water jets from any direction
IP67
Temporary submersion for ground-mount in standing water
Single Fleet, Dual Deployment
Rain, sprinkler overspray, pressure washing between events
Factory-sealed gaskets and cable gland compression fittings
Conformal-coated PCBs — standard production, not aftermarket
Connectors rated for event-level mate cycles (not 50–100 cycle retrofit limits)

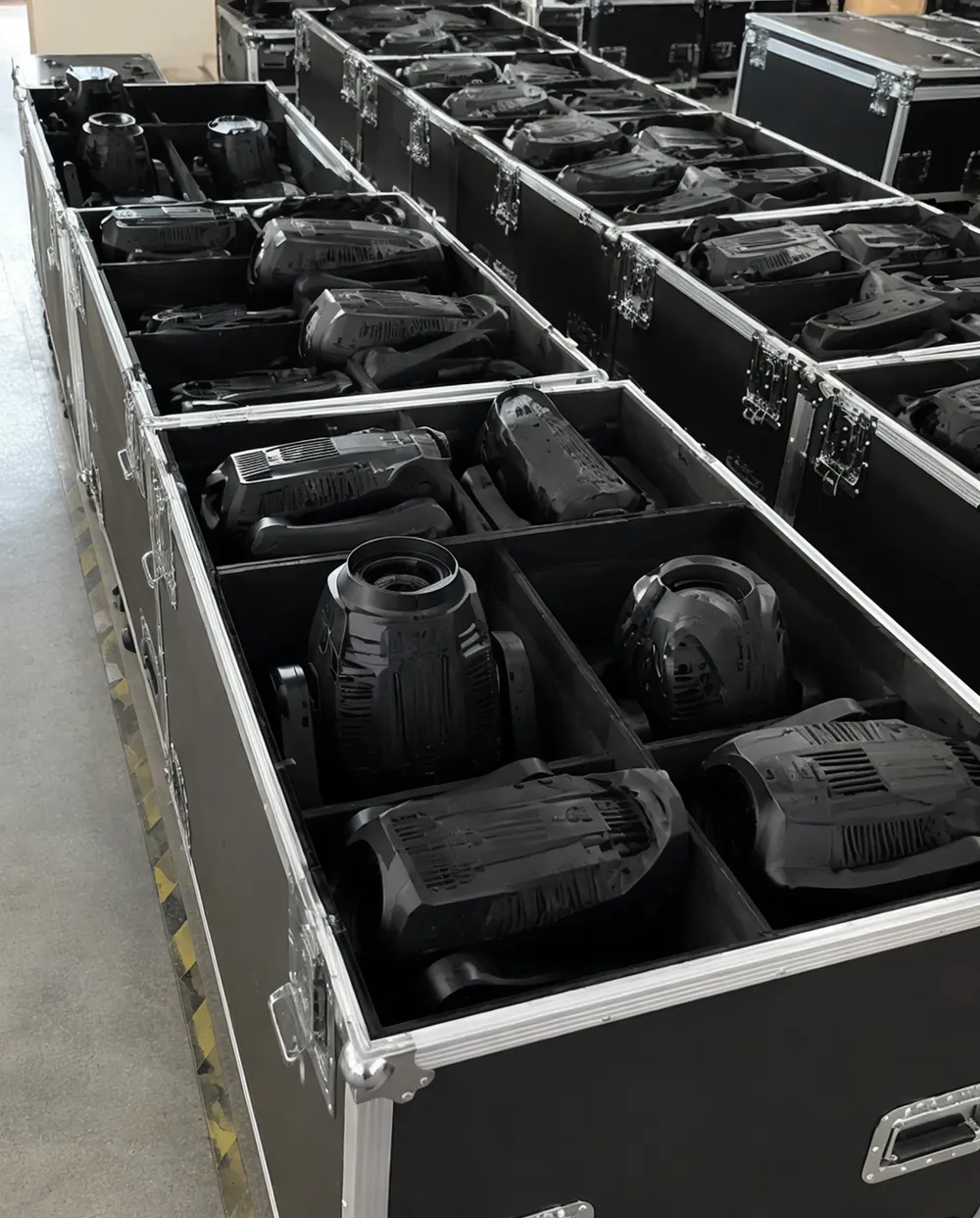

Mechanical Durability: Designed for the Load-In/Load-Out Cycle
Event fixtures live a rough life. They get stacked in trucks, clamped to truss, struck at midnight, and loaded again the next morning. A fixture that looks great on a showroom floor but dents on its second load-in isn't suitable for rental inventory.
Our event stage lighting uses die-cast aluminum housings — not stamped sheet metal, not plastic. Die-casting gives us consistent wall thickness (minimum 2.5mm on structural surfaces), integrated mounting points that won't strip under clamp torque, and impact resistance that survives the inevitable drops from 1.5m working height onto concrete.
Specific Durability Features Built Into the Design

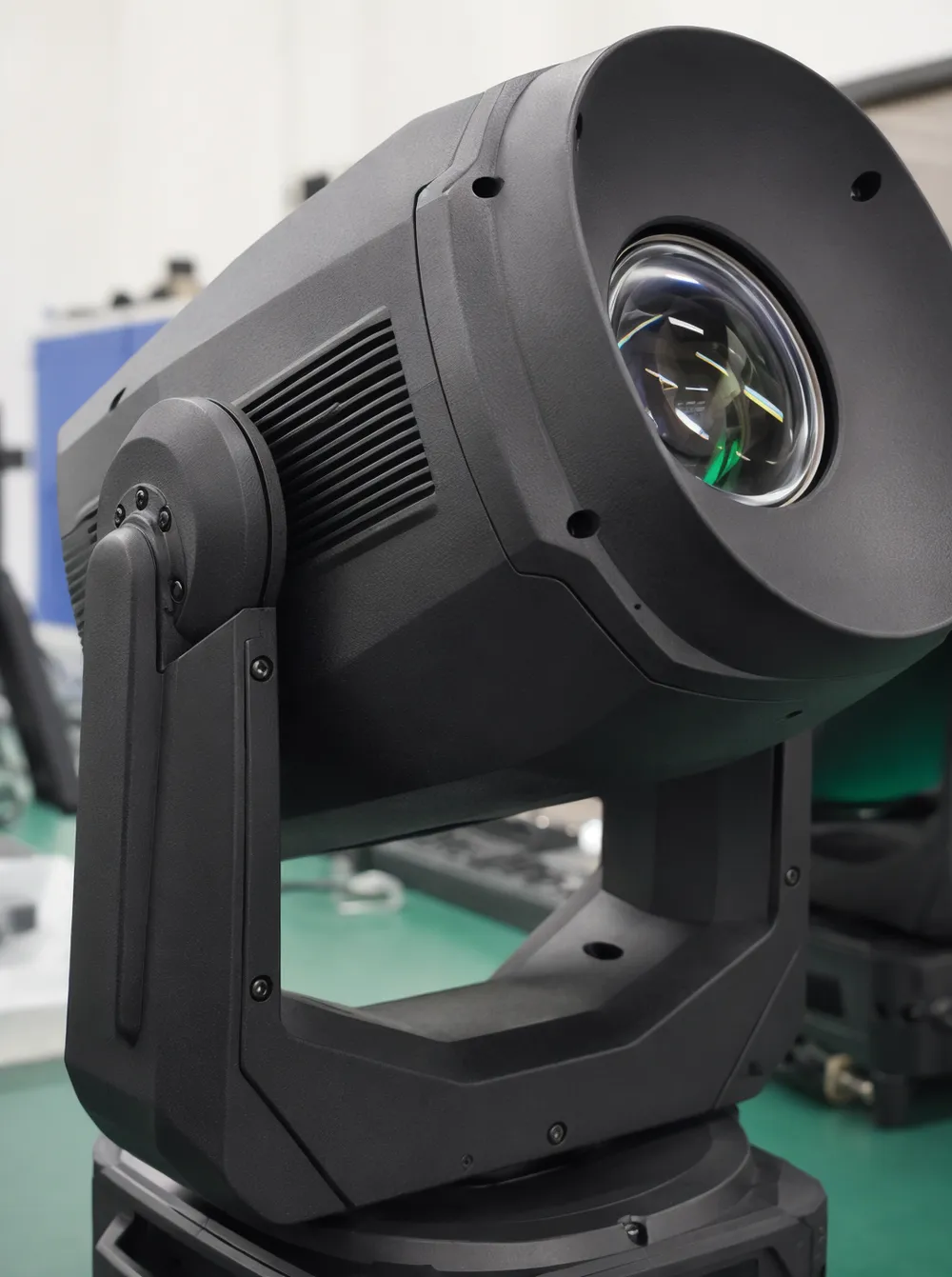

Reinforced Yoke Pivot Points
The yoke-to-housing connection sees the most mechanical stress during rigging. We use oversized pivot bolts with nylon-insert lock nuts — they won't loosen from vibration during transport.
Recessed Lens Surface
The optical face sits 3–5mm below the housing rim, so lens contact during stacking or accidental face-down placement doesn't scratch the optical surface.
PowerCon and XLR Connectors
Panel-mount with internal strain relief. Standard connectors without strain relief fail internally after 200+ mate cycles — ours are rated for 5,000+ cycles.
Powder Coat Finish
60–80μm electrostatic powder coat over phosphate pre-treatment. Passes 500-hour salt spray testing. Resists scratching from clamp hardware and flight case foam.
Our Internal Drop Test Standard
We test housing durability with a 1-meter drop test onto concrete — both corner impact and face-down. Fixtures that pass without functional damage or cosmetic cracking get approved for production. This isn't a certification requirement — it's our internal standard because we know how rental inventory gets treated.
2.5mm
Min wall thickness
1.5m
Drop test height
5,000+
Connector mate cycles
500hr
Salt spray rated

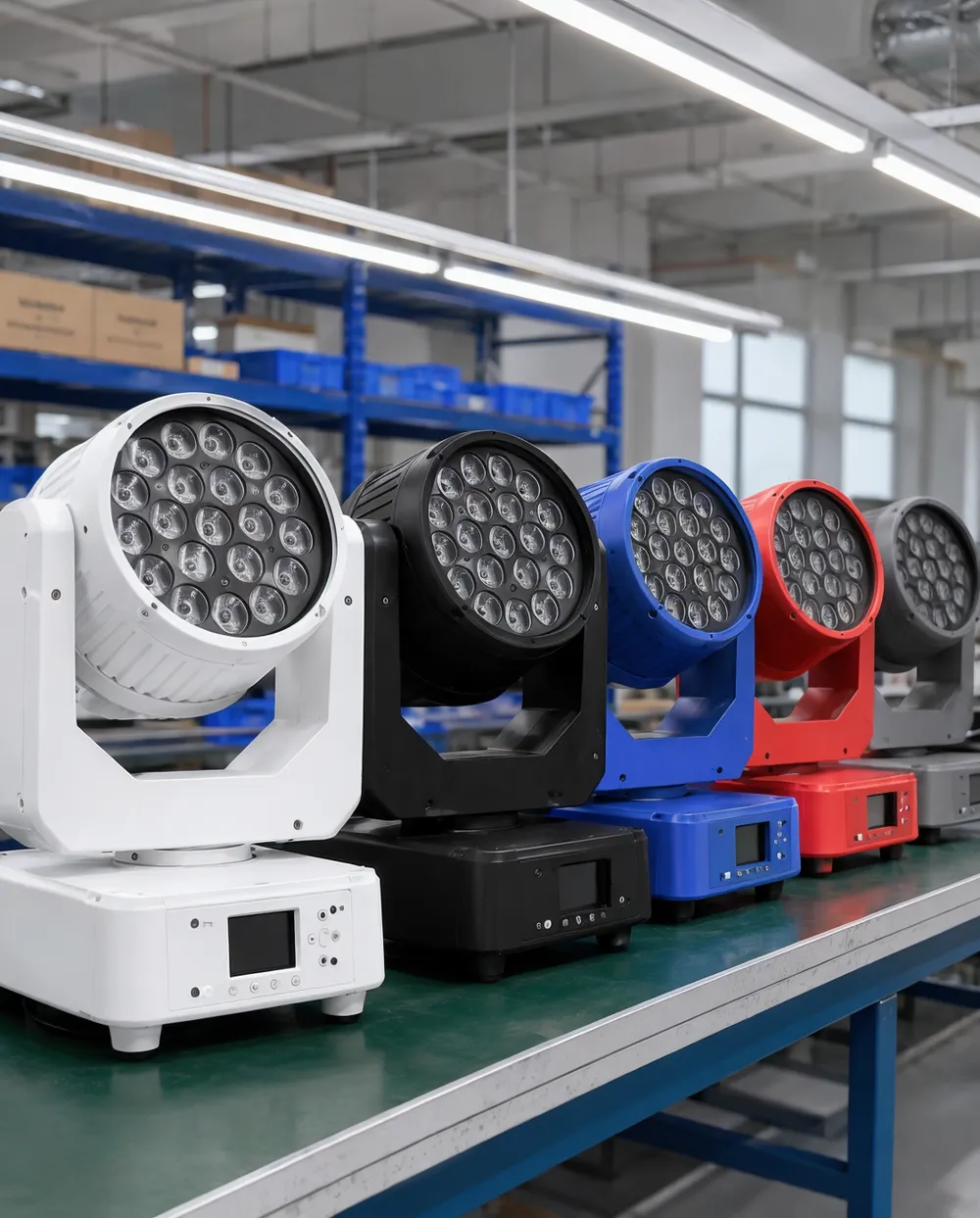

OEM/ODM Customization for Your Event Lighting Brand
If you're building a branded rental fleet or distributing under your own label, our OEM/ODM program starts at 30 units — low enough to test market response before scaling.
What's Customizable
| Customization Level | Options | Typical MOQ |
|---|---|---|
| Branding only | Your logo silkscreen/laser etch, custom packaging, branded boot screen | 30 units |
| Color/finish | Custom RAL powder coat colors, matte/gloss variants | 100 units |
| Optical configuration | Beam angle, LED color mix (RGBW vs RGBWA+UV), lens type | 100 units |
| Control protocol | Custom wireless protocol integration, app control, proprietary DMX profiles | 200 units |
| Housing modification | Adjusted dimensions, different mounting hardware, accessory integration | 500 units |
| Full custom development | New optical design, new housing tooling, custom PCB and firmware | 500–1,000 units |
What's Fixed (Design Constraints)
- Minimum housing wall thickness: 2.0mm (structural integrity requirement)
- LED driver topology: constant-current design (non-negotiable for LED longevity)
- Safety certifications scope: CE/FCC testing applies to the base electrical design — major modifications trigger re-certification (we handle this, but it adds 3–4 weeks)
- IP65 seal design: gasket geometry is fixed per housing model; custom colors or finishes don't affect IP rating
Development Timeline
Branding-only OEM
7–10 days to sample
Optical or control modifications
15–20 days to first sample
Full custom development
45–60 days concept to approved sample, 20–30 days from approved sample to production
We handle CE/FCC/RoHS re-certification for modified designs in-house — your custom product ships with its own compliance documentation, not a piggyback on the base model's certificate.
Compliance Documentation: Pre-Qualified for Your Import Markets
Event stage lighting enters regulated markets. Electrical safety, electromagnetic compatibility, and hazardous substance restrictions apply in every territory you're likely selling into.
Certifications Held on Our Event Stage Lighting Range
CE Marking (EU)
LVD (Low Voltage Directive) + EMC (Electromagnetic Compatibility). Full test reports available for your EU importer of record.
FCC Part 15 (US/Canada)
Conducted and radiated emissions compliance. Required for US market entry — fixtures ship with FCC ID documentation.
RoHS (EU/UK)
Full restricted substance declarations. Lead-free solder, halogen-free substrates, cadmium-free housing treatments.
IP65/IP67 (International)
Third-party ingress protection testing per IEC 60529.
What This Means for Your Procurement Process
You're not buying fixtures and then scrambling for compliance documentation post-purchase. Every shipment includes the test reports, declarations of conformity, and certification references your customs broker needs. No holds at port, no delays pending documentation.
Additional Market Certifications
For buyers selling into markets with additional requirements (UL listing for US venue installations, SAA for Australia, KC for Korea), we support application and testing through our certified lab partners. Discuss your target market compliance needs during the quotation stage — we'll confirm timeline and cost for any additional certifications required.
Packaging and Container Loading: Protecting Margin on Transit
Damage in transit is pure margin loss — a broken fixture is an RMA, a replacement shipment, and a missed rental date. Our packaging is designed for export container transport, not domestic courier.

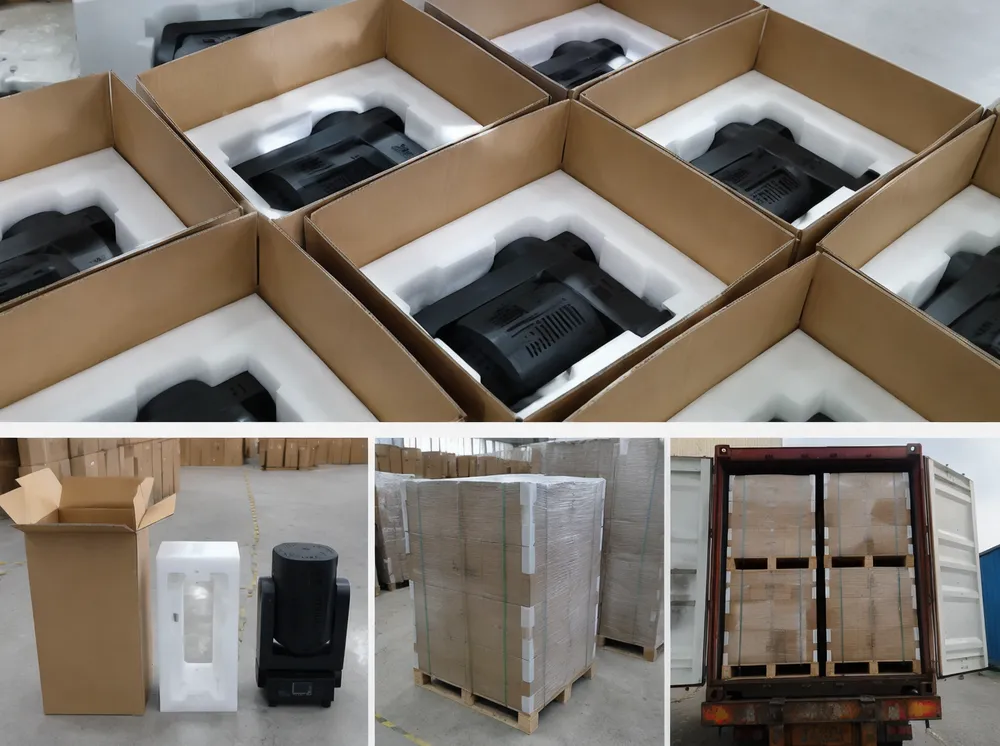

Standard Packaging Approach
-
Individual units in molded EPE foam inserts (custom-cut per fixture model, 50mm minimum cushion on all sides)
-
Inner carton with corrugation rated for stacking 6-high in container
-
Master cartons with edge protectors and moisture barrier bag for ocean freight
-
Palletized loading option for 40HQ containers — banded and stretch-wrapped
Container Loading Efficiency (Typical)
| Fixture Category | Units per 20GP | Units per 40HQ |
|---|---|---|
| Compact PAR (≤5kg) | 800–1,200 | 1,800–2,600 |
| Standard Wash/Spot (5–8kg) | 400–700 | 900–1,500 |
| Moving Head (8–12kg) | 250–400 | 550–900 |
Blind Drop-Ship & White-Label Packaging
If you're selling through Amazon, your own e-commerce store, or distributing to sub-dealers, we ship in neutral or your branded packaging. Carton labels, barcodes, and packing lists formatted to your warehouse receiving requirements or FBA specifications.
Real-World Improvement
We switched from generic foam blocks to model-specific molded inserts in 2019 after tracking damage claims across six months of shipments. Claims dropped from 2.3% to under 0.4%. The per-unit packaging cost went up slightly, but the ROI on fewer replacements and fewer angry customers was immediate.
Manufacturing Process: How Event-Specific Design Decisions Protect Your Inventory ROI
We don't build event stage lighting by taking a fixed-install fixture and putting it in a tougher case. The design starts from the event use case and works backward to component selection and production process.
LED Mounting & Optical Assembly
Automated SMT placement at ±0.05mm accuracy ensures every fixture in your order produces identical beam characteristics. When you deploy 40 wash lights on a corporate stage, color temperature and output uniformity across the batch is what separates a professional result from a patchy one.
Manual mounting drifts — automated mounting doesn't.
Thermal Management for Sustained Operation
Event fixtures run at full output for 4–8 hours continuously, often in restricted-airflow environments (inside pipe-and-drape, under tent canopies). We design heatsink geometry specifically for each fixture's thermal load — not generic extrusions from a catalog.
Higher-wattage models use temperature-controlled fans that ramp based on junction temperature, staying silent during corporate speeches and only ramping up when thermal load demands it.
Housing Production
Die-cast aluminum bodies run through CNC finishing to achieve flat mounting surfaces and precise accessory attachment points. Every housing gets phosphate pre-treatment before powder coating — this step adds adhesion performance that prevents coating failure at impact points.
Standard industry practice skips the phosphate step to save cost. We run it on every unit because coating chips at clamp attachment points look terrible and expose bare aluminum to corrosion in outdoor environments.

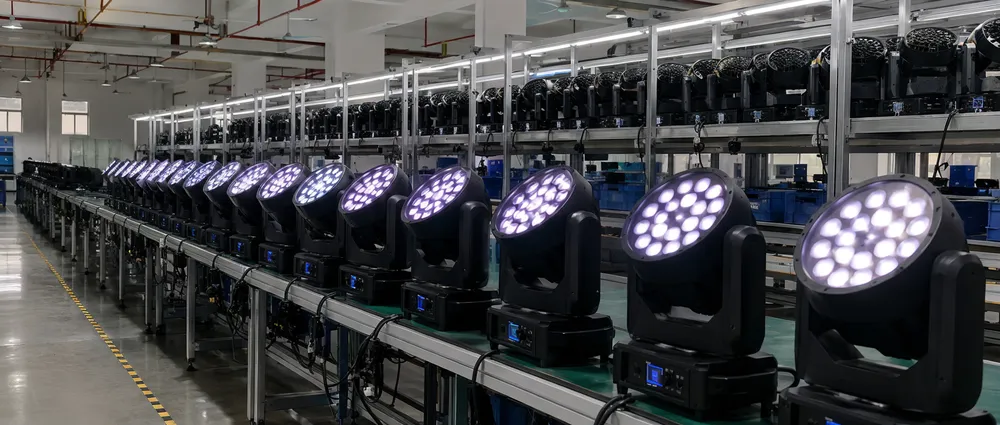

48-Hour Aging Test
Every event stage lighting fixture — not a sample batch, every single unit — runs 48 hours at full electrical load before packaging. This catches infant mortality failures: capacitor drift, LED driver instabilities, thermal throttling at sustained operation, and intermittent DMX response.
A fixture that fails at hour 30 of aging fails here in our factory, not at your client's gala dinner.
Frequently Asked Questions
What IP rating do I need for outdoor event stage lighting?
What IP rating do I need for outdoor event stage lighting?
IP65 covers 95% of outdoor event scenarios — rain, dust, pressure washing between deployments. You only need IP67 (rated for temporary submersion) if fixtures will be ground-mounted in areas where standing water accumulates, such as festival fields after rain.
All our event stage lighting ships IP65 as standard; IP67 is available on specific models.
How many DMX channels does event stage lighting typically require?
How many DMX channels does event stage lighting typically require?
It depends on fixture complexity and your lighting operator's needs. Basic RGBW wash fixtures operate effectively in 4–6 channel mode for simple color mixing. Full-feature mode (individual color channels + dimmer + strobe + zoom + programs) runs 10–12 channels.
Our fixtures support multiple channel mode selections via DIP switch or DMX menu — your rental techs choose the appropriate mode per job.
What is the realistic lifespan of LED event stage lighting in rental use?
What is the realistic lifespan of LED event stage lighting in rental use?
LED source life is typically rated at 50,000 hours, but rental life is limited by mechanical wear rather than LED degradation. In heavy rental use (200+ events per year), expect 3–5 years of primary service life before connectors, motors (on moving fixtures), or housing cosmetics warrant retirement from top-tier inventory.
Our 48-hour aging test eliminates early-failure units, and our connector rating (5,000+ mate cycles) targets the 5-year rental service window.
Can I mix RGBW and RGBWA+UV fixtures in the same event deployment?
Can I mix RGBW and RGBWA+UV fixtures in the same event deployment?
You can, but color matching requires attention. UV and amber LEDs shift the achievable color gamut. For applications where seamless color blending matters (corporate stage washes, keynote backgrounds), keep fixture types consistent within each zone.
For effect lighting and dynamic color chasing, mixing adds creative range without visible inconsistency. We can spec a mixed-order kit optimized for your typical deployment patterns.
What's the minimum order for custom-branded event stage lighting?
What's the minimum order for custom-branded event stage lighting?
30 units
Logo branding, custom packaging, firmware boot screen
100 units
Optical or control modifications
500 units
Full custom development (new tooling, new PCB)
We provide full compliance documentation on all custom variants — your branded product ships with its own CE/FCC certification, not a reference to the base model.
How do you ensure color consistency across a large batch order?
How do you ensure color consistency across a large batch order?
LED chip binning at incoming inspection — we reject bins with more than 3% deviation from target CCT before chips enter the SMT line. Automated pick-and-place mounting at ±0.05mm accuracy ensures optical alignment consistency.
Post-assembly, we verify color temperature and output with an integrating sphere on a sampling basis (AQL 1.0 for critical optical parameters).
The result: when you deploy 100 units on the same stage, they match.
Sibling Products Under Party & DJ Lights
Event stage lighting is one configuration within our broader party and DJ lighting range. If your product needs differ, these sibling categories may fit:
Portable DJ Lights
Compact, battery-powered fixtures for mobile DJs who carry everything in one trip. Lower output than event stage lighting, but zero cable requirements.
Wireless DJ Lights
Wireless control focus with battery option. Overlaps with event stage lighting's wireless DMX capability but in a smaller, lighter form factor for uplighting applications.
DMX Party DJ Lights
DMX-controlled fixtures optimized for fixed party installations (clubs, bars, KTV). Designed for permanent mounting rather than the load-in/load-out cycle.
Laser Projector Party Lights
Laser-based effect lighting for high-impact visual statements. Complements event stage lighting as an accent effect layer.
Party DJ Lights Tripod
Mounting hardware and stands for ground-supported lighting packages where truss isn't practical.
Not sure which product line fits your market? Tell us your target application and we'll recommend the right configuration.
Next Step: Get Your Event Stage Lighting Quote
You've read the specs, the application segments, and the customization options. If this product line fits your business — whether you're building a rental fleet, launching a branded product, or stocking for distribution — the next step is straightforward.
Send Us Your Requirements
Target fixture types and quantities
Any customization needs (branding, optical config, control protocol)
Your destination market (for compliance documentation)
Timeline expectations
Our engineering team reviews your brief and returns a detailed quote with model recommendations, lead time confirmation, and sample options — typically within 48 hours.
