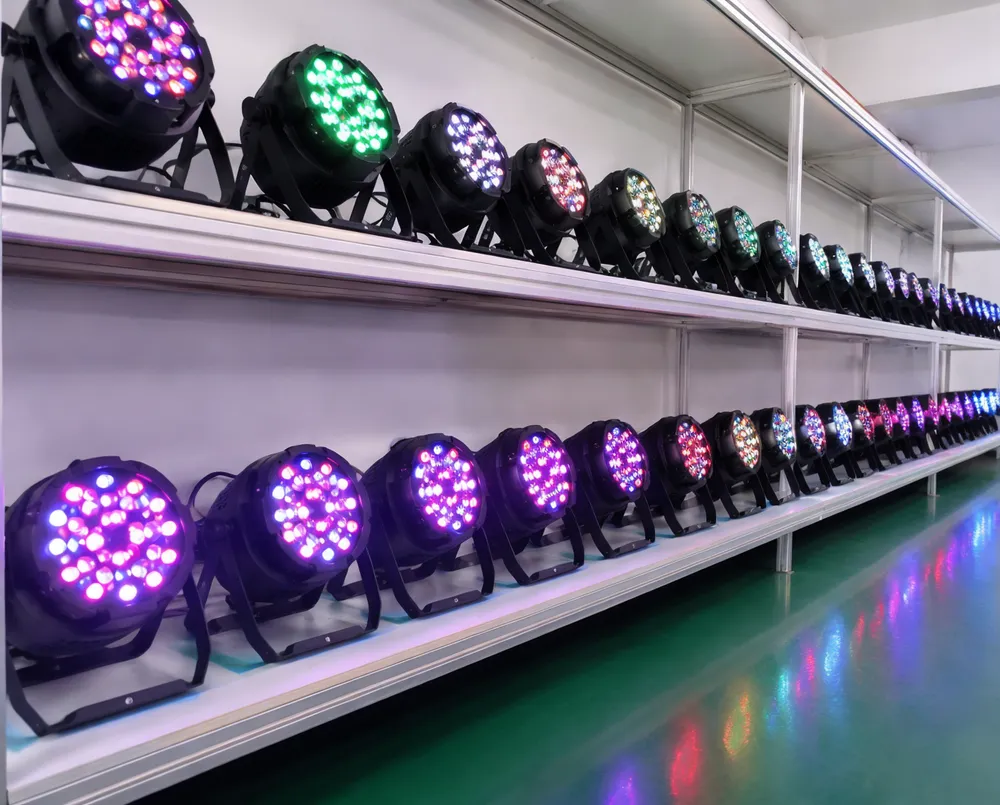

LED DJ Par Lights Engineered for Commercial Deployment
Consistent color output, aluminum thermal management, and DMX control built for rental fleets and installed systems.
We manufacture LED DJ par lights in-house from LED mounting through final aging test. Your order ships from the same building where we cut the housings and program the firmware — no trading company markup, no quality handoff gaps.
What This Product Is and Where It Sits in Your Lineup
LED DJ par lights are compact wash fixtures — flat or short-can housings with arrays of multi-color LED chips behind a wide-angle lens. They produce broad, even color washes for stage uplighting, wall wash, truss-mounted backdrop color, and ambient fills. The "par" form factor is the workaround for the old PAR56/64 can — same mounting profile, fraction of the power draw, and full color mixing without gel swaps.
What separates our LED DJ par lights from the rest of the category: we build them as rental-grade fixtures in a DJ-market price band. The housing is die-cast aluminum with machined heatsink fins (not stamped steel with a painted finish), the LED driver runs flicker-free PWM at 20kHz+ for camera-friendly operation, and every unit passes a 48-hour burn-in before it leaves.
You get a fixture that survives 200+ deployments without LED degradation or driver failure — which is what protects your margin when you're selling into rental houses or mobile DJs who'll blame the distributor for early failures.
Current Production Configurations
Compact configuration for tight rig spaces and smaller venues. 80W draw.
Highest-volume SKU — hits the sweet spot between output and price point for most markets. 130W draw.
Maximum LED density for broader wash coverage. 150W draw.
The 18×12W RGBWA+UV is our highest-volume SKU in this line — it hits the sweet spot between output and price point for most markets.
Technical Specifications for Procurement Comparison
Full specification table for side-by-side evaluation against competing quotes. All values represent standard production output.
| Parameter | Standard Options |
|---|---|
| LED Configuration | 12×12W / 18×12W / 24×10W |
| Color System | RGBW, RGBA, RGBWA+UV (6-in-1) |
| Beam Angle | 15° / 25° / 45° (interchangeable lens available) |
| Dimming | 0-100%, electronic smooth dimming, 20kHz PWM |
| Strobe | 1-25Hz adjustable |
| Control | DMX512, sound-active, auto-run, master/slave |
| DMX Channels | 4 / 6 / 8 / 10-channel modes |
| Input Voltage | AC 100-240V, 50/60Hz (universal) |
| Power Consumption | 80W (12×12W) / 130W (18×12W) / 150W (24×10W) |
| Housing Material | Die-cast aluminum with powder coat finish |
| Cooling | Convection + temperature-controlled silent fan |
| IP Rating | IP20 (indoor) / IP65 available for outdoor models |
| Connector | PowerCon in/out + 3-pin & 5-pin XLR |
| Weight | Typical 2.8 – 4.5 kg depending on configuration |
| Fixture Dimensions | Typical Ø200–270mm × 130–280mm (varies by model) |
| Certifications | CE, FCC, RoHS |
Specifications shown are standard production values. Custom configurations available — contact us with your exact requirements.
PowerCon Daisy-Chain
The PowerCon in/out daisy-chain means your buyers can link up to 8 units on a single power run at the 18×12W wattage, so installers need fewer home runs back to the distro panel. Reduces cable cost and rigging time on every deployment.
Market-Ready Connectors
We include both 3-pin and 5-pin XLR as standard because the North American rental market still runs 3-pin while European installations prefer 5-pin — you choose which connector ships based on your destination market, or we include both.
Color Consistency Across Production Runs How We Protect Your Brand
This is where most buyers get burned with par lights and don't realize it until units are deployed side by side. LED color consistency depends on LED chip binning — buy a batch of par lights from a factory that doesn't control their bins, and you'll see visible color shift when six units are mounted on the same truss. Your customer notices. Your reputation takes the hit.

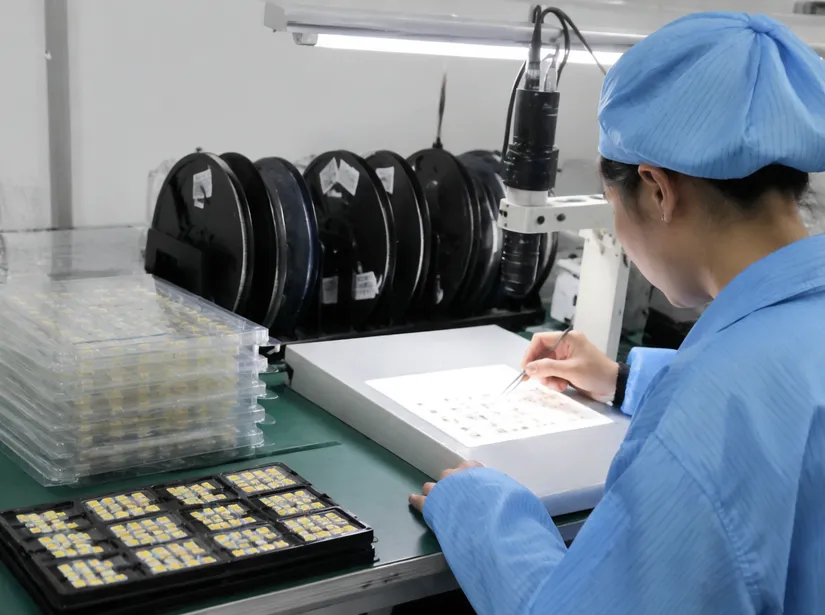

We bin-sort incoming LED chips to a 3-step MacAdam ellipse before they enter the SMT line. That means any two fixtures from the same production run — or different production runs months apart — produce visually identical white and color temperatures under normal viewing conditions. Our SMT placement runs at ±0.05mm accuracy, which keeps the optical alignment consistent from unit to unit so beam patterns overlay cleanly when fixtures are arrayed.
For your business, this translates directly: you can fulfill reorders six months later and the new units match the installed ones. Rental companies can swap units between kits without visible mismatch on stage. Distributors can sell from inventory without batch-matching. We keep bin records tied to production orders, so if you ever need to match a specific batch from a previous order, we can pull the same bin specification.
3-Step MacAdam
Bin-sorted LED chips produce visually identical color — imperceptible variation to the human eye under normal viewing.
±0.05mm SMT
Placement accuracy keeps optical alignment consistent unit to unit, so beam patterns overlay cleanly in arrays.

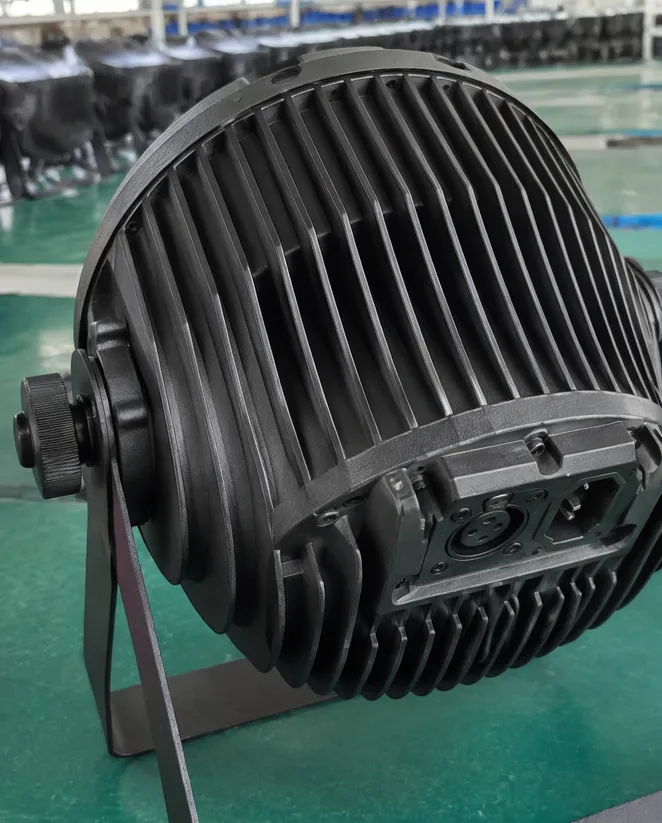

Junction <85°C
Machined aluminum heatsinks keep junction temps below 85°C at sustained full output — no thermal color drift.
Bin Records Stored
We tie bin records to production orders. Need to match a batch from 6 months ago? We pull the same bin specification.
Why Thermal Management Matters for Color
Color temperature shifts when LEDs overheat — a fixture that runs 20°C above junction spec will drift warm over a 4-hour show. Our machined aluminum heatsinks keep junction temperatures below 85°C at sustained full output, so color stays where it's supposed to for the fixture's entire rated life. No drift during long events. No mismatch between fixtures running at different positions on the rig.
Profitable Market Segments for LED DJ Par Lights

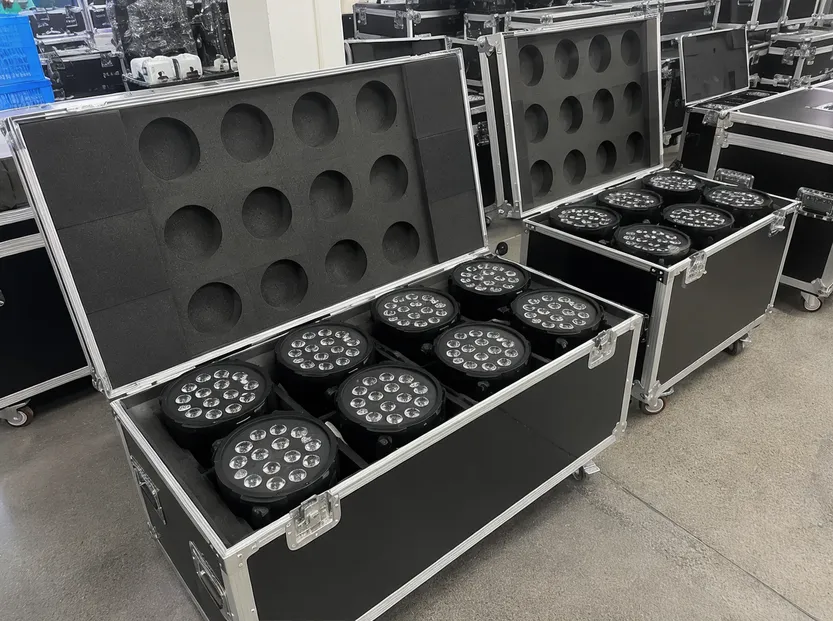

Mobile DJ & Entertainment Rental
Mobile DJs and rental houses cycle through gear hard — 3-4 deployments per week, thrown in road cases, rigged and struck in 20 minutes. They buy in sets of 8-16 units and replace on a 2-3 year cycle. This is your repeat-order segment. The compact housing and light weight (under 4.5kg) means DJs can carry more fixtures per trip without exceeding vehicle weight limits, and the PowerCon daisy-chain eliminates power cable clutter during fast setups.
Order Patterns
- Distributors typically stock sets of 8 units as a base kit
- Rental companies order 20-50 units per refresh cycle
- High reorder frequency — working fixtures expand fleet capacity for peak season

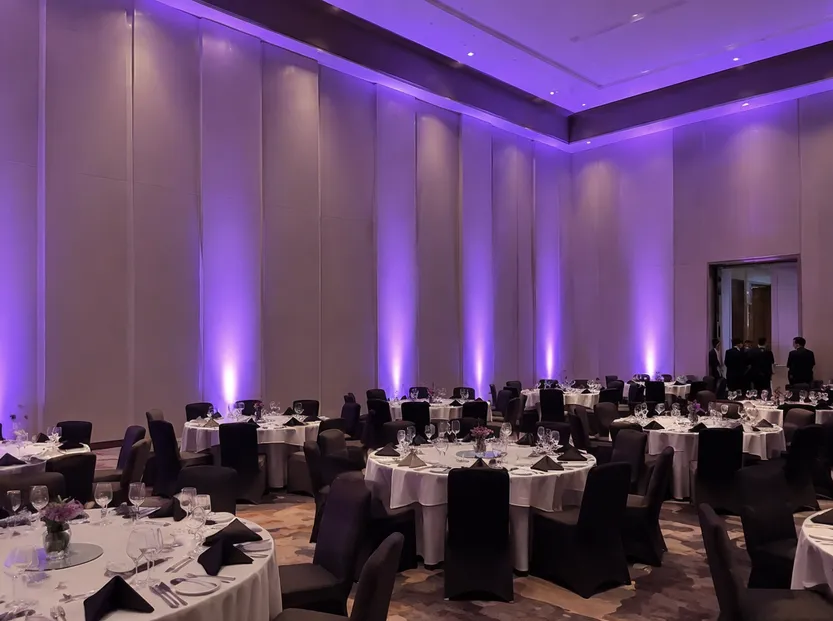

Hospitality & Venue Installation
Hotels, bars, clubs, event halls — permanent or semi-permanent LED DJ par light installations for ambient uplighting, architectural washes, and dance floor color. These buyers specify based on aesthetics (slim housing profile, silent fan mode for quiet rooms) and longevity (50,000-hour LED life means 10+ years in a 12-hour-per-day venue). Order volumes are 20-80 units per project, and you're typically bidding against competitors on total installed cost.
Silent Fan Mode Advantage
Temperature-activated fan stays off below 40°C ambient — makes these fixtures usable in quiet-room applications where competing units with always-on fans get rejected at the spec stage.

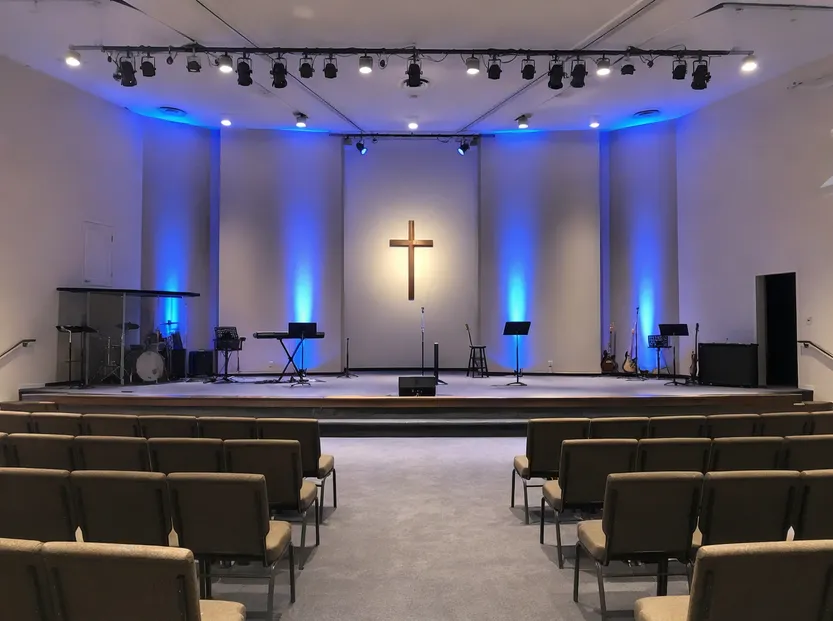

House of Worship & Community Venues
Churches, community theaters, and school auditoriums run limited lighting budgets but need flexible color for services and performances. They buy once and operate for 5-10 years. This segment values simplicity (sound-active mode, no DMX board required for basic use) plus low maintenance (LED source, no lamp changes). Typical orders: 12-24 units per venue. The 25° lens option covers typical 8-12 meter throw distances in these rooms.
~20% of par light volume over the last three years — steady orders, spec-driven purchasing, and strong word-of-mouth referral within denomination networks.

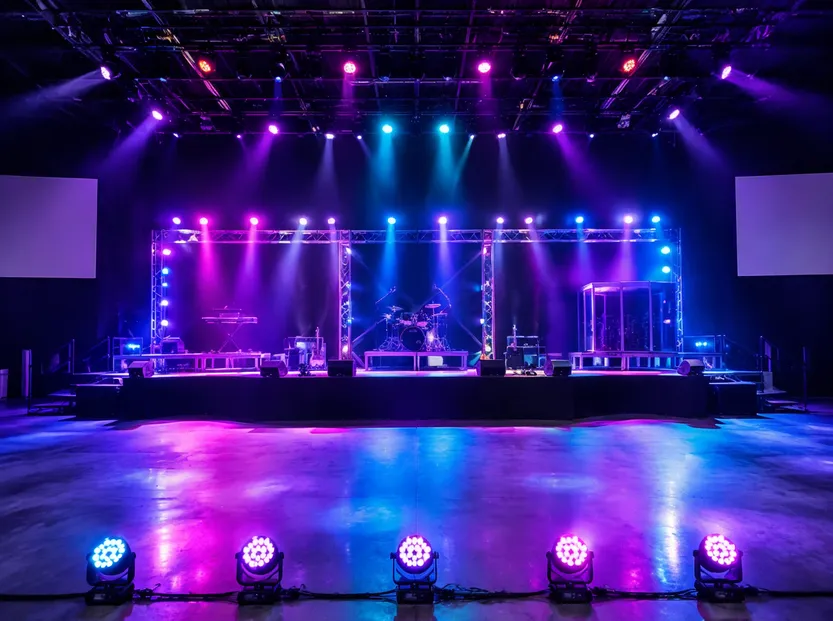

Event Production & Staging Companies
Large-scale event companies deploy par lights as workhorses for ground row, truss wash, and scenic color. They order 50-200+ units at a time, prioritize fixture-to-fixture consistency, and demand DMX reliability under dense addressing schemes.
10-channel DMX mode — individual control over each color element
4-channel DMX mode — streamlined when channel count is limited

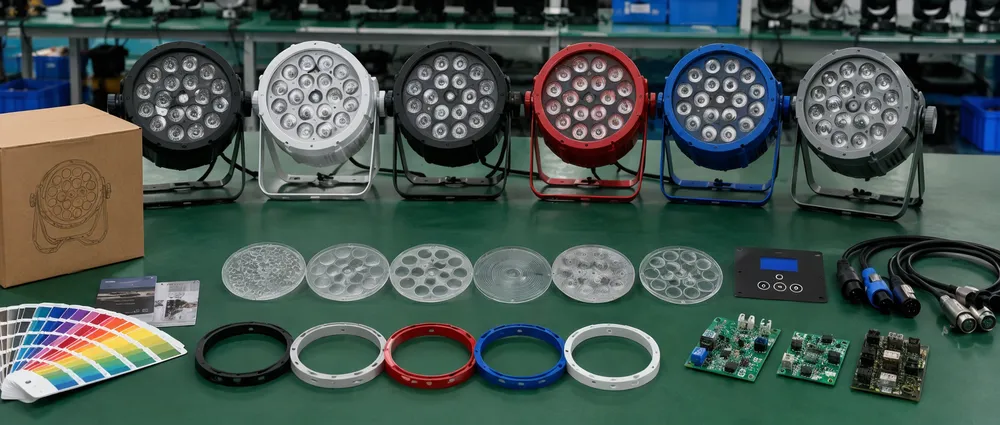

OEM/ODM Customization: What You Can Specify
We build LED DJ par lights to your brand requirements. Starting from existing proven platforms is faster and lower-risk than ground-up development, so most OEM buyers customize within our established tooling.
Branding & Visual Identity
- Your logo on the housing (laser engraved or pad-printed)
- Custom powder coat color (any RAL code, MOQ 100 units for custom colors)
- Custom packaging with your branding and design
- Firmware splash screen with your brand name on the LCD display
Optical Configuration
- LED chip count and wattage selection within existing housing platforms
- Color system selection (RGBW, RGBA, RGBWA+UV, or single-color white variations)
- Beam angle via lens swap (15°, 25°, 45° — or specify a custom angle and we'll source the lens)
- Interchangeable lens ring option for end-user adjustability
Electrical & Control
- Input voltage configured for destination market
- Wireless DMX receiver integration (standard 2.4GHz protocol, compatible with major wireless DMX systems)
- Bluetooth app-control module add-on for consumer/prosumer market positioning
- Custom DMX channel map and preset programs
Mechanical & Environmental
- IP65 upgrade for outdoor festival and architectural applications (sealed housing, conformal-coated PCB)
- Barn door or snoot accessory compatibility
- Alternative yoke/bracket designs for specific mounting requirements
What we can't customize within standard lead times
Housing form factor changes requiring new die-casting tooling — that's a 45–60 day tooling development on top of production lead time. If you need a completely new housing shape, talk to us about ODM development timelines.
Minimum Order Quantities
30 units
OEM-branded on existing platform
100 units
Custom color or hardware modifications
Project-based
Full ODM development — send us your brief
Manufacturing Process: What Happens to Your Order
We run LED DJ par light production across two of our six lines — one handles SMT and PCB assembly, the other handles housing, final integration, and test. Here's the sequence your order follows.
LED Array Assembly
Incoming LED chips are bin-sorted for forward voltage and chromaticity (3-step MacAdam), then mounted on aluminum-core PCBs via automated SMT. The aluminum substrate acts as the primary thermal path from junction to heatsink — we don't use standard FR4 boards for the LED array because the thermal resistance is too high for sustained full-output operation.
After reflow soldering, every PCB runs through automated optical inspection for solder joint quality.
Housing Production
Die-cast aluminum housings come from our casting line, then get CNC-machined for heatsink fin geometry and mounting interfaces. The heatsink fin pattern is specific to each wattage configuration — a 150W fixture needs more surface area than an 80W fixture, obviously, but the fin spacing also matters for convection efficiency in the orientation most users mount these (tilted 30–60° on a truss clamp).
After machining, housings go through chromate conversion coating and then automated powder coating at 60–80μm thickness.
Integration & Programming
PCBs mount into housings, lens assemblies get aligned, fans get installed and wired, and the control board gets its firmware flashed. DMX addressing is verified across all channel modes. We test each unit through every DMX mode and function before it moves to aging.

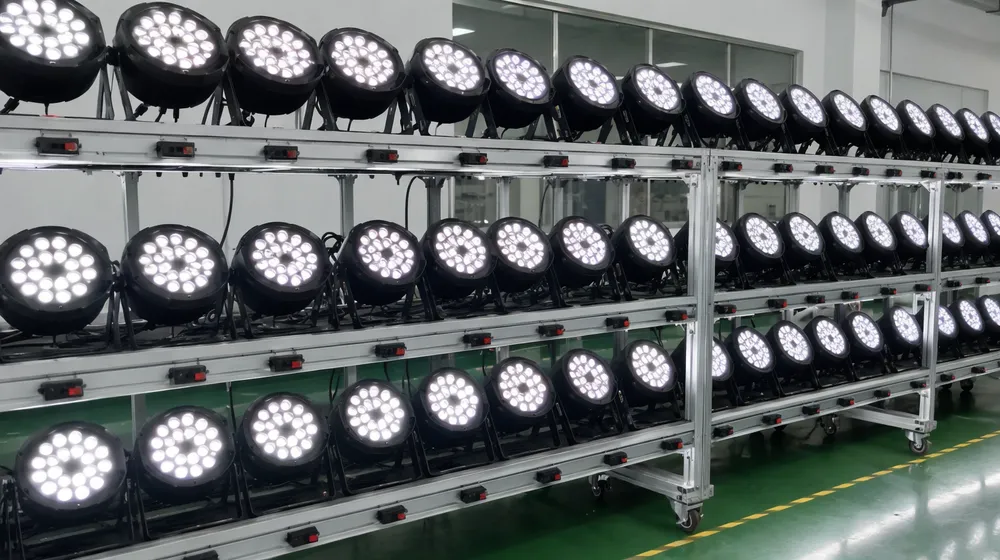

48-Hour Aging & Final Test
CriticalEvery unit — not a sample, every single fixture — runs at full output for 48 continuous hours in our aging racks. This catches infant mortality: capacitor failures, thermal throttling, LED degradation, fan bearing issues.
After aging, final QC confirms color output, dimming linearity, DMX response, and cosmetic condition. Then it ships.
Why the 48-hour aging test matters to your bottom line
The aging test is where we catch maybe 1–2% of production that would otherwise fail in the field within the first 100 hours. Those are the units that create warranty returns and damage your brand. We'd rather absorb the scrap cost here than have your customer call you about a dead fixture.
Compliance Documentation You'll Need for Import
| Certification | Coverage | What It Means for You |
|---|---|---|
| CE (EMC + LVD) | EU market | Import clearance into all EU/EEA countries without additional testing |
| FCC Part 15 | North America | No EMI compliance issues at US/Canadian customs |
| RoHS | EU, UK, various | Material composition declarations ready for your compliance file |
| IP65 | Outdoor models | Documented ingress protection for outdoor installation specifications |
| ISO 9001:2015 | Factory system | Your supply chain audit checklist covered — documentation available on request |
EU Market
Import clearance into all EU/EEA countries without additional testing
North America
No EMI compliance issues at US/Canadian customs
EU, UK, Various
Material composition declarations ready for your compliance file
Outdoor Models
Documented ingress protection for outdoor installation specifications
Factory System
Your supply chain audit checklist covered — documentation available on request
Full Test Reports Included
We provide full test reports and declarations of conformity with shipments. Your compliance file is ready the moment your goods clear customs — no chasing paperwork after the fact.
Need Market-Specific Certs?
If your market requires additional documentation — ETL/UL for US institutional projects, SAA for Australia, PSE for Japan — we can coordinate third-party testing and factor the timeline into your order.

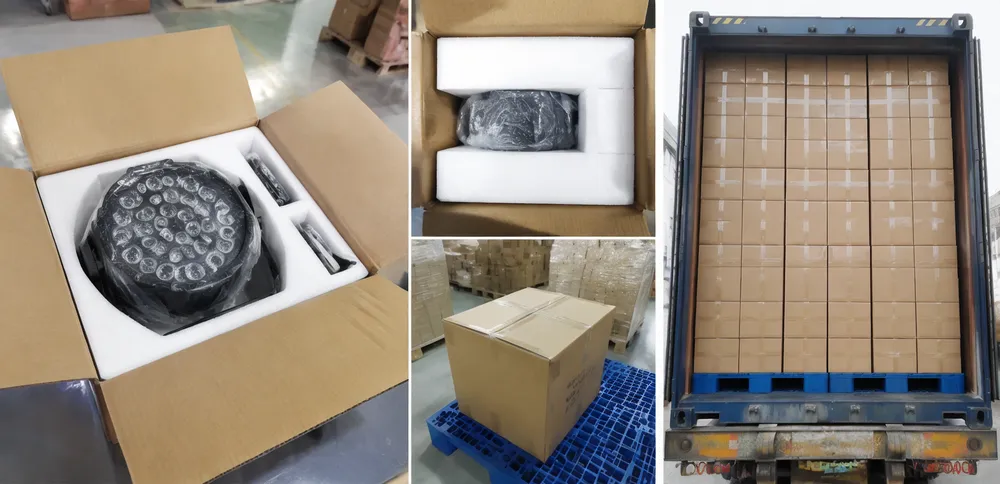

Packaging & Container Loading Efficiency
Standard Packaging
Each LED DJ par light ships in individual molded foam packaging inside a corrugated master carton. Master cartons are sized for optimal pallet stacking — 20 units per layer, stackable 4 layers high without compression damage.
Palletization is configured for your warehouse receiving format.
Container Loading Estimates
Standard 18×12W Model
20GP Container
Standard 20-foot
40HQ Container
High-cube 40-foot
Units per container
Retail-Ready Packaging
For buyers who sell through e-commerce or drop-ship, we configure retail-ready packaging:
- Full-color printed box
- Branded foam insert
- QC card & user manual (your specified languages)
FBA-Ready Labeling
FNSKU barcodes formatted for your Amazon marketplace. Tell us your marketplace and we'll format accordingly — units arrive ready for direct inbound to Amazon fulfillment centers.
Road Case Integration
For rental market distribution: we source and integrate flight cases (typically 4-unit or 8-unit cases) so your buyer receives a ready-to-deploy kit rather than individual boxes.
Why Packaging Design Matters More Than You Think
Packaging damage is where hidden margin loss lives in this product category. A single broken lens or scratched housing in a box of 8 doesn't just cost the replacement — it costs the return shipping, the customer service time, and the trust.
Our foam insert design has been through enough iterations that damage rates sit below 0.3% on ocean freight shipments.
LED DJ Par Lights vs. Other Fixtures in This Category
Not sure if par lights are the right fit for your market, or whether a different format works better? Here's how our LED DJ lighting products position against each other:
LED DJ Par Lights
This Page
If your buyers need: Broad color wash, uplighting, truss-mounted fills
Industry-standard form factor, universal rigging, best price-to-output ratio for wash.
LED DJ Pixel Bar
If your buyers need: Linear pixel-mapped effects, chase patterns
Individual pixel control for visual effects that par lights can't produce.
View Pixel BarLED DJ Spotlight
If your buyers need: Focused spot with tight beam for gobo or highlight
When you need a defined beam edge, not a wash.
View SpotlightLED DJ Tube Lights
If your buyers need: Kinetic décor accents, ambient installations
Battery-powered tubes for décor-heavy events and ambient visual design.
View Tube LightsLED DJ Moving Head
If your buyers need: Dynamic motion, sweeps, aerial effects
Pan/tilt automation for high-energy shows where static wash isn't enough.
View Moving HeadLED DJ Laser Lights
If your buyers need: Sharp aerial beams, tunnel effects, crowd scanning
Laser-specific effects that LED fixtures cannot replicate.
View Laser LightsBundling tip: Many of our wholesale partners stock par lights alongside moving heads and pixel bars as a complete DJ lighting package. Par lights handle the wash foundation while other fixtures add motion and effects on top. Ask about bundle pricing when you request a quote.
Bulk Ordering & Wholesale Pricing for LED DJ Par Lights
Our pricing structure rewards volume. Whether you're stocking a regional warehouse or fulfilling a single large project order, we offer tiered pricing designed for professional buyers.
Sample Order
1–9 units
Evaluation pricing for product testing and approval
Small Wholesale
10–49 units
First price break for initial inventory stocking
Volume Wholesale
50–199 units
Significant discount for established distribution partners
Container Load
200+ units
Best FOB pricing with custom packaging options
What's Included at Wholesale
- Tiered unit pricing with transparent cost breakdown
- Full QC inspection reports included with each shipment
- OEM/ODM customization available at 100+ MOQ
- Neutral packaging or private-label branding
- Dedicated account manager for repeat orders
- Flexible payment terms for verified businesses (T/T, L/C)
Shipping & Logistics
- FOB Shenzhen/Guangzhou or CIF to your port
- Air freight for urgent orders (3–5 day delivery)
- Sea freight for container loads (18–30 days typical)
- DDP service available for select destinations
- Export carton and flight-case packaging options
- All customs documentation and certificates provided
Ready to Get Wholesale Pricing?
Tell us your target quantity and we'll send a detailed quotation within 24 hours, including unit pricing, lead time, and shipping estimates for your region.
Source Your LED DJ Par Lights From a Factory That Gets It Right
Whether you need 20 units for a rental fleet refresh or 2,000 for distribution, we deliver consistent quality, competitive pricing, and reliable lead times. No middlemen, no guesswork.
Your Next Step
Most buyers in this category start one of two ways: a sample order of 2–4 units to verify build quality and color output against their standards, or a direct volume inquiry with their specific configuration requirements.
Option A: Sample Order
Order 2–4 units to verify build quality and color output against your standards before committing to volume.
Option B: Volume Inquiry
Send your specific configuration requirements directly and get unit pricing, timeline, and full photometric spec sheets.
What to Include in Your Inquiry
Either way works. Send us your target market, preferred LED configuration, and approximate volume — we'll come back with unit pricing, a sample timeline, and a spec sheet with full photometric data. If you have a competitor sample you want us to match or improve on, send that too — our engineering team will break it down and quote a production-ready equivalent.
