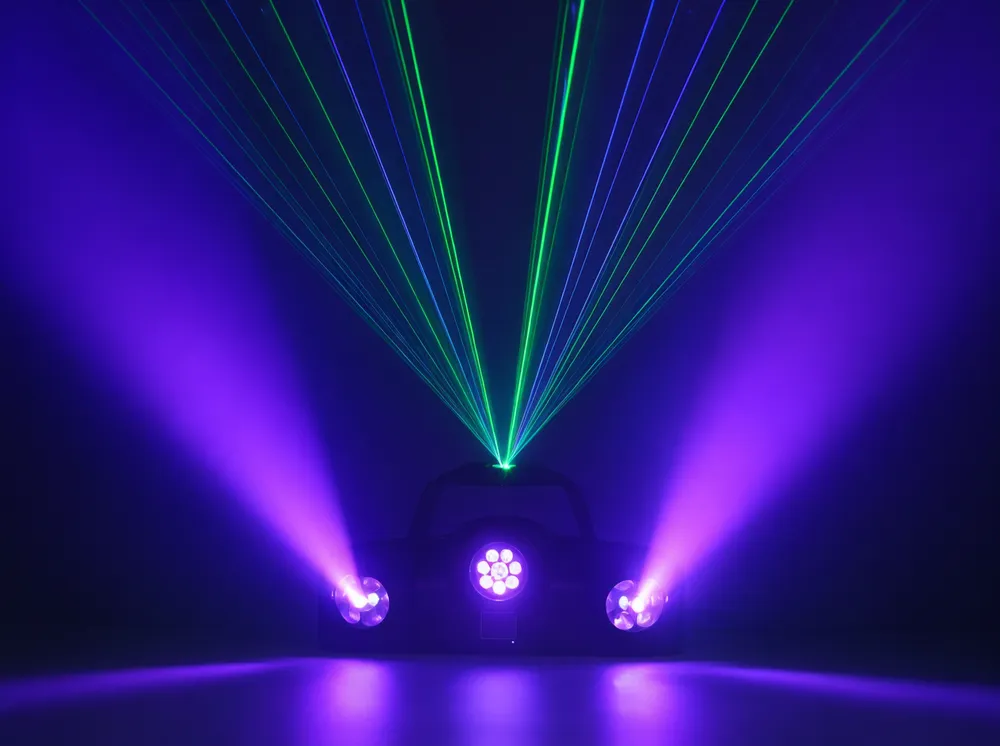

LED Laser DJ Lights Hybrid Fixtures Built for Dual-Effect Distribution
LED laser DJ lights that merge wash lighting and laser beam effects into a single fixture — manufactured in-house at our Guangdong facility.
One SKU replaces two in your buyer's rig. Reduced fixture count means faster setup, fewer cables, and a compelling upsell story for your distribution channel.
What This Fixture Is and Why It Exists in Your Catalog

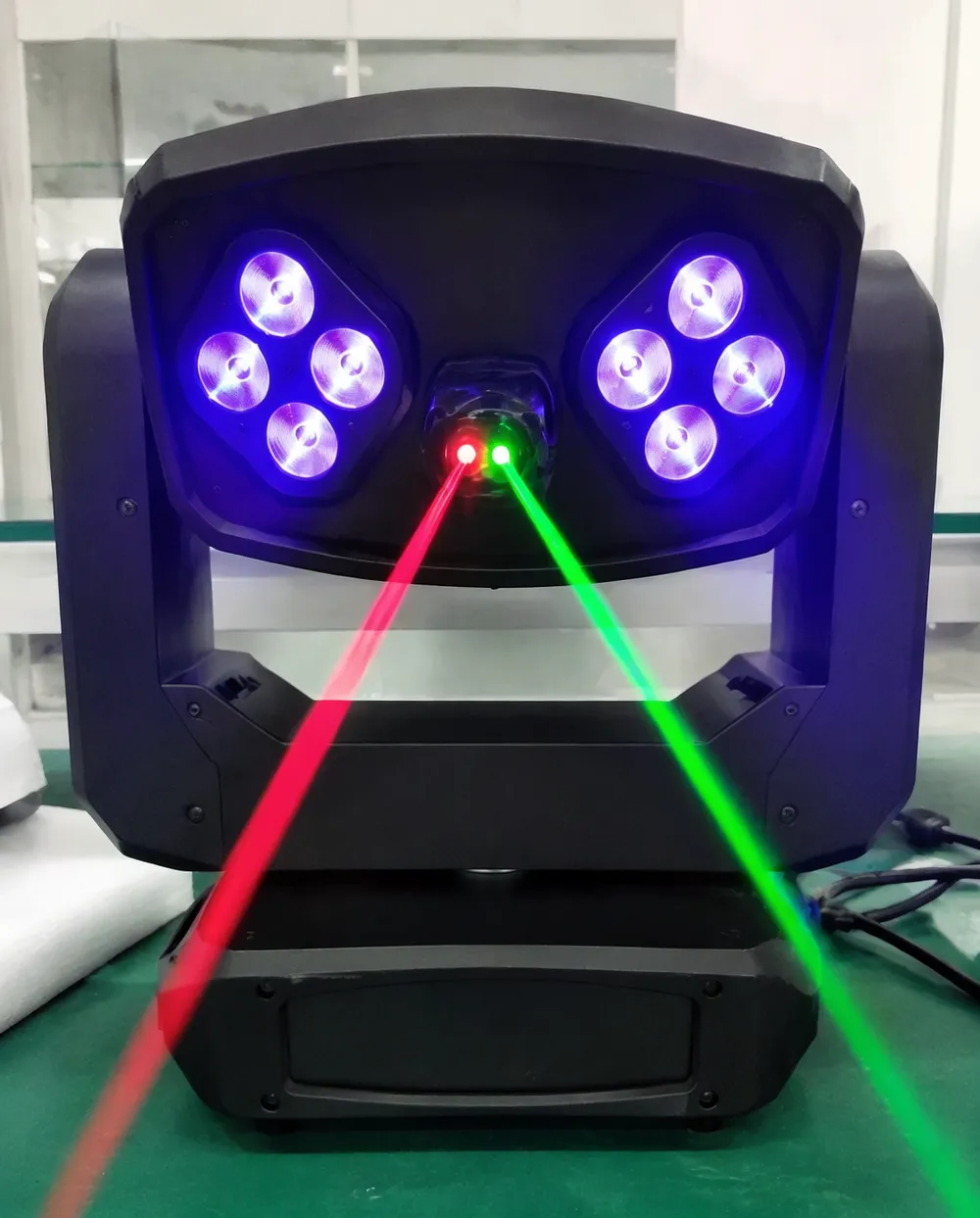

LED laser DJ lights are hybrid units housing both LED wash/effect diodes and laser diode modules inside a single enclosure. The LED section provides color wash, strobe, or moonflower effects. The laser section projects beam patterns — stars, grids, geometric animations — through a separate optical path. Both systems run independently or synchronized, controlled via DMX-512, sound-active, or auto mode.
The commercial logic is consolidation. Your mobile DJ buyer currently carries a laser unit plus a separate LED effect light — two fixtures, two power cables, two clamps, two DMX addresses. This hybrid cuts that in half. Fewer fixtures per gig means faster load-in, less gear weight, and a lower entry price for DJs building their first lighting rig. For you, it means one SKU that addresses two purchase motivations simultaneously.
Before: 2 fixtures
2 cables · 2 clamps · 2 DMX addresses
After: 1 hybrid fixture
1 cable · 1 clamp · 1 DMX address
We've manufactured these hybrid configurations since 2018, iterating through three housing generations. The current design places the laser module at the top with dedicated heatsinking separated from the LED array's thermal path below. Early versions shared a heatsink — the laser diode ran too hot when the LED section pulled full current. We fixed that with a thermal isolation bridge between the two modules.
This is the kind of detail that only matters when your customer runs both effects at full output for 4 hours straight — which is exactly what happens at a Saturday night wedding.
Housing Gen
3rd
Since
2018
Technical Specifications for LED Laser DJ Lights
Specifications shown are standard values for our LED laser DJ light range. Exact parameters vary by model configuration. Contact us for detailed spec sheets on specific SKUs.
| Parameter | Typical Value |
|---|---|
| LED Source | RGBW LEDs, 3W × 8–12 pcs (model dependent) |
| LED Output | 800–1,500 lumens total (wash/effect mode) |
| Laser Source | Red 650nm (100 mW) + Green 532nm (50 mW), or RGB combined |
| Laser Patterns | 12–48 patterns (geometric, star, grid, animation) |
| Laser Scan Type | Stepper motor, 8–12 KPPS |
| Control Modes | DMX-512, Sound-Active, Auto, Master/Slave |
| DMX Channels | 6–9 channels (mode selectable) |
| Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 25–50W (model dependent) |
| Housing | Extruded aluminum, black anodized |
| Dimensions | Approx. 200 × 180 × 120 mm (compact series) |
| Weight | 1.2–2.0 kg |
| Operating Temp | 0°C to 40°C |
| IP Rating | IP20 (indoor use) |
| Certifications | CE FCC RoHS |
Stepper vs. Galvo
These are stepper-motor laser units — not galvo-driven. The scan speed is appropriate for the price segment and buyer profile (mobile DJs, small venues, house of worship). If your market needs galvo-class animation quality, look at our RGB Laser Projector DJ Lights instead.
Target Buyer
- Mobile DJs building first rig
- Small venue installations
- House of worship lighting
- Distributors seeking consolidation SKUs
The Dual-Effect Margin Opportunity
Here's the straightforward commercial case: a standalone mini laser unit retails for $35–60. A standalone LED effect light retails for $25–45. An LED laser DJ hybrid retails for $50–80. Your buyer pays less than two separate units. You ship one SKU instead of two. Your per-order logistics cost drops. And the perceived value — "two effects in one" — gives you pricing power that a commodity mini laser doesn't.
We see this product gaining share fastest in three distribution contexts:
Unit Economics Snapshot
E-commerce & Retail Channels
The "2-in-1" positioning converts well in product listings. One product image shows two distinct effects. Reviews reference versatility. Return rates run lower than standalone lasers because the LED section delivers immediate visual gratification even if the buyer expected more from the laser alone.
Standalone cheap lasers get "too dim" complaints in small rooms. The LED wash fills the space while the laser handles the beam drama.
Mobile DJ Starter Kits
Distributors bundling gear packages for new DJs increasingly include LED laser hybrids as the entry-level effects fixture. One unit lets a beginner DJ offer both wash color and beam effects at their first gig.
You can position a 2-pack or 4-pack bundle at an attractive price point and capture the volume of new market entrants.

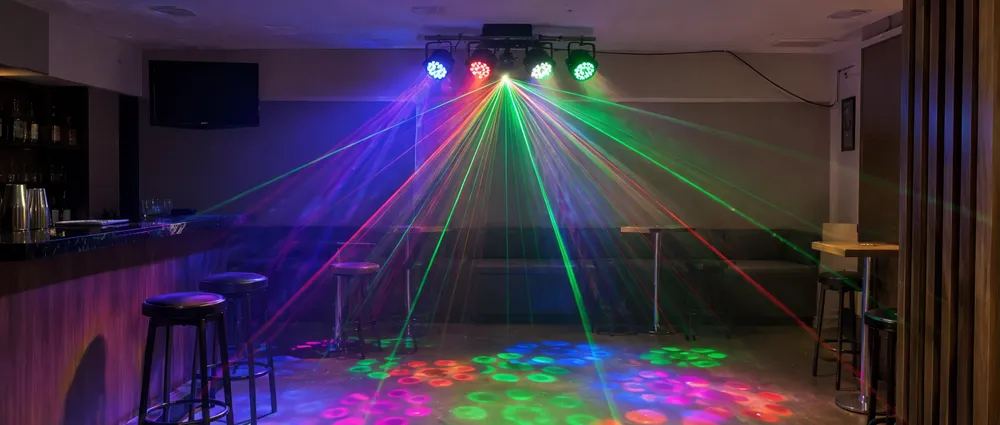

Small Venue Installations
Bars, KTV rooms, and party venues under 80 m² don't need high-power dedicated laser systems. An LED laser DJ hybrid mounted on a wall bracket covers both ambient color and beam effects for a room.
Installation contractors order 4–8 units per venue. Reorder pattern is strong because venues refresh their look every 2–3 years.
How We Build the Hybrid: Thermal Isolation and Optical Separation
The engineering challenge in any LED laser DJ light isn't putting two light sources in a box — it's keeping them from degrading each other. LED arrays generate broad-spectrum radiant heat. Laser diodes need stable junction temperatures to maintain output power and wavelength accuracy. Put them on the same heatsink and the laser diode pays the thermal penalty of the LED section's heat dump.

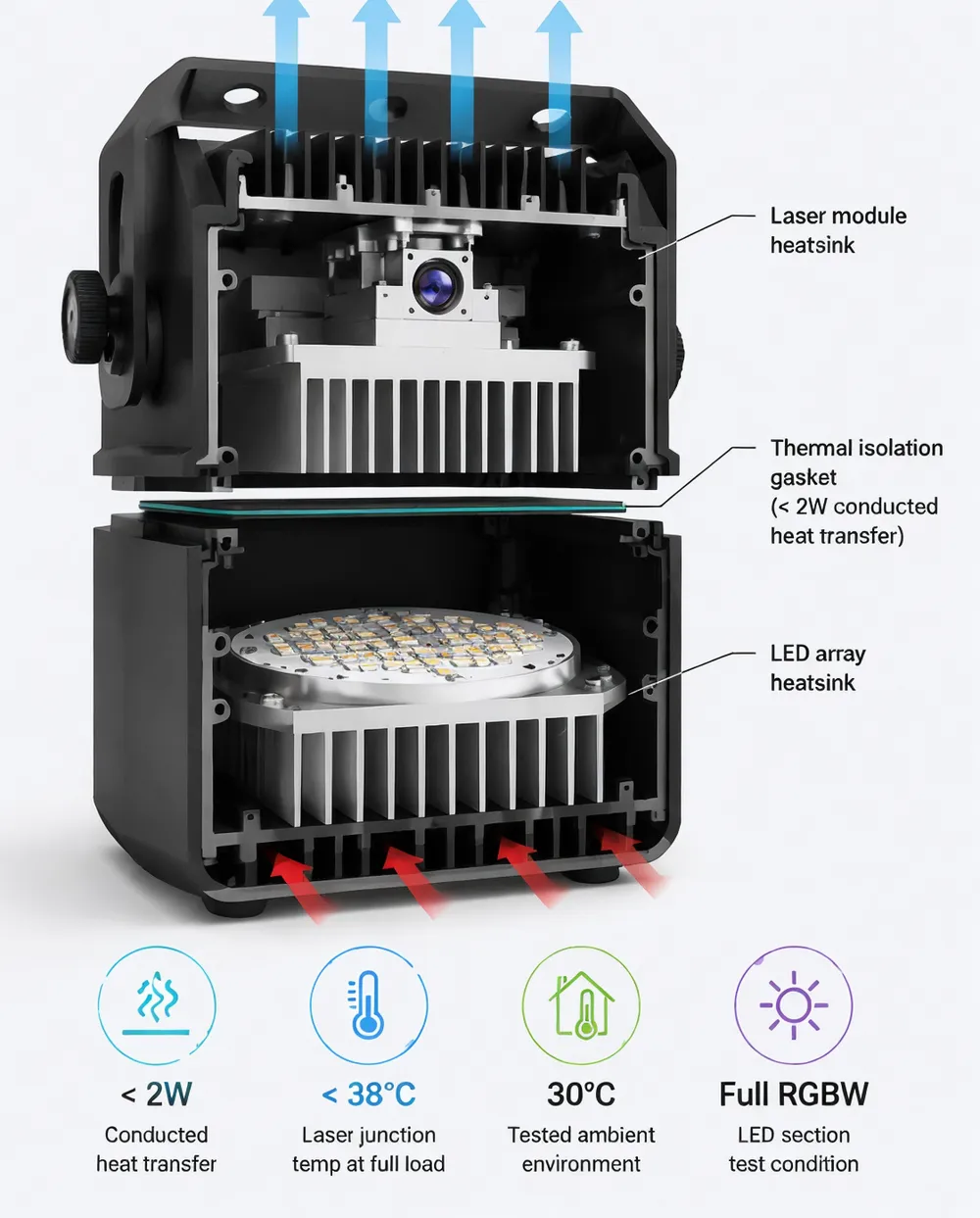

Divided Thermal Architecture
Our current-generation housing uses a divided thermal architecture. The laser module sits on its own aluminum heatsink block with dedicated convection fins at the top of the unit. The LED array mounts to a separate heatsink section in the lower housing with its own ventilation path.
A thermal isolation gasket between the two sections limits conducted heat transfer to under 2W. The result: laser diode junction temperature stays below 38°C even when the LED section runs at full RGBW output in a 30°C ambient environment.

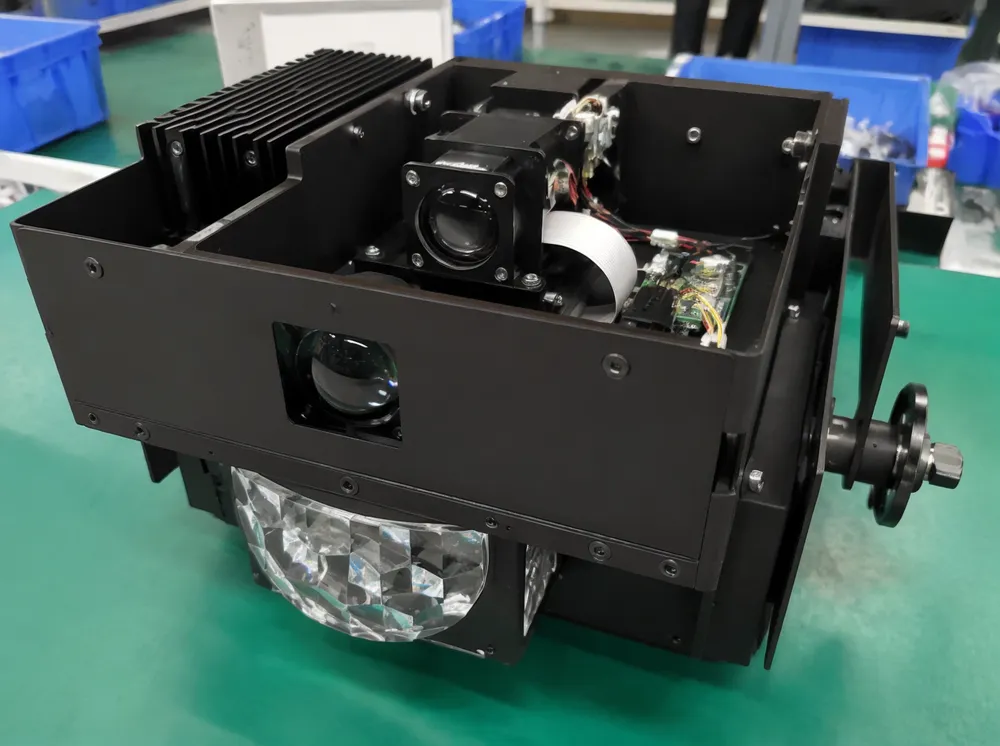

Physical Optical Separation
The optical paths are physically separated too. Laser output exits through a dedicated aperture with its own projection lens. LED output has a separate wide-angle lens or rotating effect plate below. No shared optical elements means no alignment drift between effects over the product's lifetime — and critically, no scenario where an LED lens element accidentally enters the laser beam path and creates a safety hazard.
Why We Killed the Shared-Aperture Design
We prototyped a shared-aperture version in 2019 that looked cleaner aesthetically. Killed it after testing because the acrylic LED diffuser scattered enough of the laser beam to push leakage above Class 3R limits at the combined exit aperture. Separate paths, separate apertures, problem solved.
Why This Manufacturing Detail Matters to You
Hybrid fixtures from competitors that share thermal and optical paths show faster laser depreciation. This translates directly into warranty returns and "the laser stopped working" complaints from your buyers' customers.
Fewer warranty returns. Fewer "the laser stopped working" complaints from your buyers' customers.
Customization Options and Constraints
What We Can Customize on LED Laser DJ Lights
Branding
Your logo on the housing, custom packaging artwork, firmware splash screen on power-up. Standard on orders above 30 units per SKU.
LED Color Configuration
Standard is RGBW. We can configure RGB-only, RGBA (amber), or single-color arrays for specific market needs. LED variant changes don't affect MOQ.
Laser Color Combination
Standard is red + green. RGB laser (add blue 450nm) available at slightly higher unit cost. Single-color laser (green only or red only) available for price-optimized SKUs.
Pattern Library
Standard 12–48 patterns depending on model. Custom pattern sets programmable — provide reference images or describe the effect and our optical engineer programs the stepper sequence.
Housing Color
Black anodized is standard. White housing available for venue installations where black fixtures look industrial. Custom RAL colors at MOQ 100 units.
Mounting Options
Standard floor stand or ceiling bracket. Custom bracket patterns for specific venue mounting systems available on request.
What We Cannot Customize (or constraints that apply)
Laser Power Above Rated Class
We won't put a 200 mW module in a housing designed for 100 mW — the thermal headroom isn't there and the product will fail early. If you need higher power, move to our Professional DJ Laser or RGB Laser Projector.
Outdoor IP Rating
The dual-aperture design with separate ventilation paths is inherently IP20. Sealing it would trap heat. For outdoor use, we manufacture IP54-rated single-function lasers instead.
Scan Type Upgrade
These units use stepper motors for laser scanning — the housing geometry and power supply don't accommodate galvo mechanisms. Galvo scanning lives in our higher-tier product lines.
Customization Lead Time Additions
| Customization Type | Additional Lead Time |
|---|---|
| Custom branding (logo, packaging, splash screen) | +3–5 days |
| Custom LED or laser configurations | +5–7 days |
| Custom housing color or mounting | +10–15 days (first article + standard production) |
Have specific customization requirements?
We'll confirm feasibility and timeline within 24 hours.

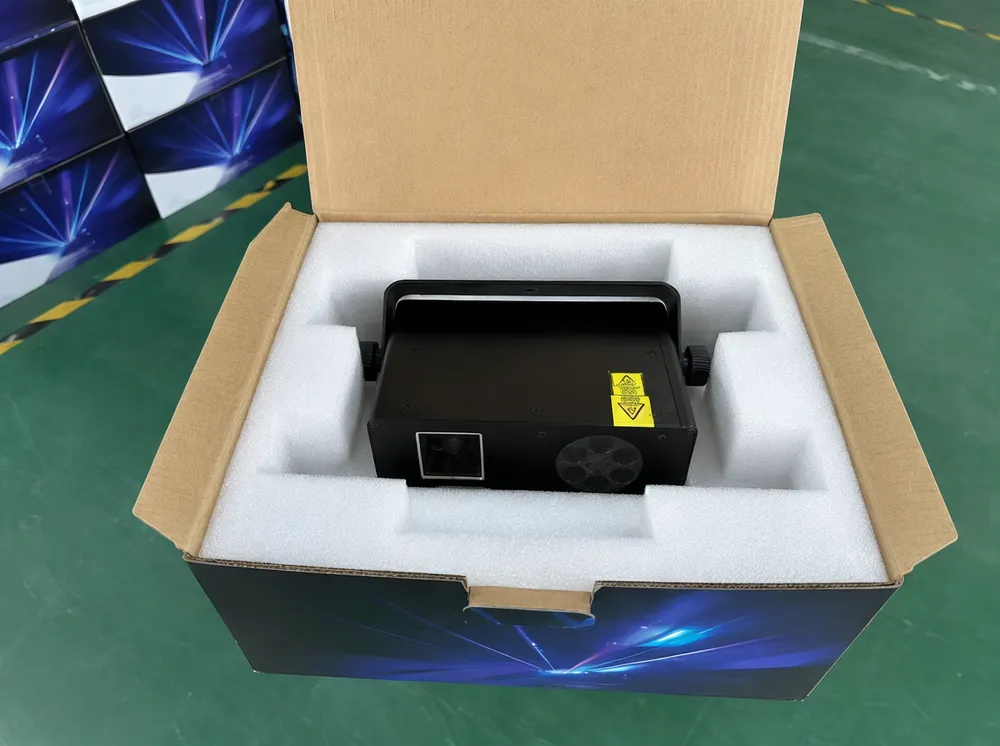

Packaging, Loading Efficiency, and Channel-Ready Shipping
Each LED laser DJ light ships in a printed color box with molded EPE foam insert — retail-ready packaging if you're selling through e-commerce or distribution channels.
The foam immobilizes both the laser aperture and LED lens section independently so neither takes impact from the other's mass during transit.
Container Loading Efficiency
20GP Container
~2,200
units
40HQ Container
~4,800
units
The compact form factor and light weight (under 2 kg per unit) make these one of the most container-efficient products in our DJ laser category. Per-unit freight cost from Shenzhen port to major destinations runs 30–40% lower than our full-size professional laser units.
E-Commerce Readiness
We support Amazon FBA labeling, FNSKU barcoding, and poly-bag overwrap for warehouse prep.
Tell us your labeling requirements and we ship cartons ready for direct intake — no repackaging at your warehouse. This saves you $0.50–1.00 per unit in prep fees, which matters at volume.
Blind Drop-Ship Capable
Neutral packaging available — no GDMonkey branding on outer carton or product manual. Your brand only.
Suitable for distributors who ship direct to end customers without revealing the supply source.
Production Lead Times
- ● Standard production: 20–25 days
- ● OEM configurations: 25–35 days
- ● Samples (stock models): 5–7 days
Compliance Documentation That Clears Your Import
LED laser DJ lights ship with full documentation for North American and European market entry.
CE Marking
Low Voltage Directive and EMC Directive compliance for European market entry.
FCC Part 15
Electromagnetic compatibility certification for the US market.
RoHS
Full restricted substance compliance for EU import. No mercury, cadmium within limits, halogen-free PCB substrate.
EN 60825-1
Laser safety classification and labeling — Class 3R standard on our hybrid models.
FDA/CDRH
Laser product reporting documentation for US market per 21 CFR 1040.
WEEE & Packaging
Technical documentation for country-specific WEEE registration and packaging waste directives provided on request.

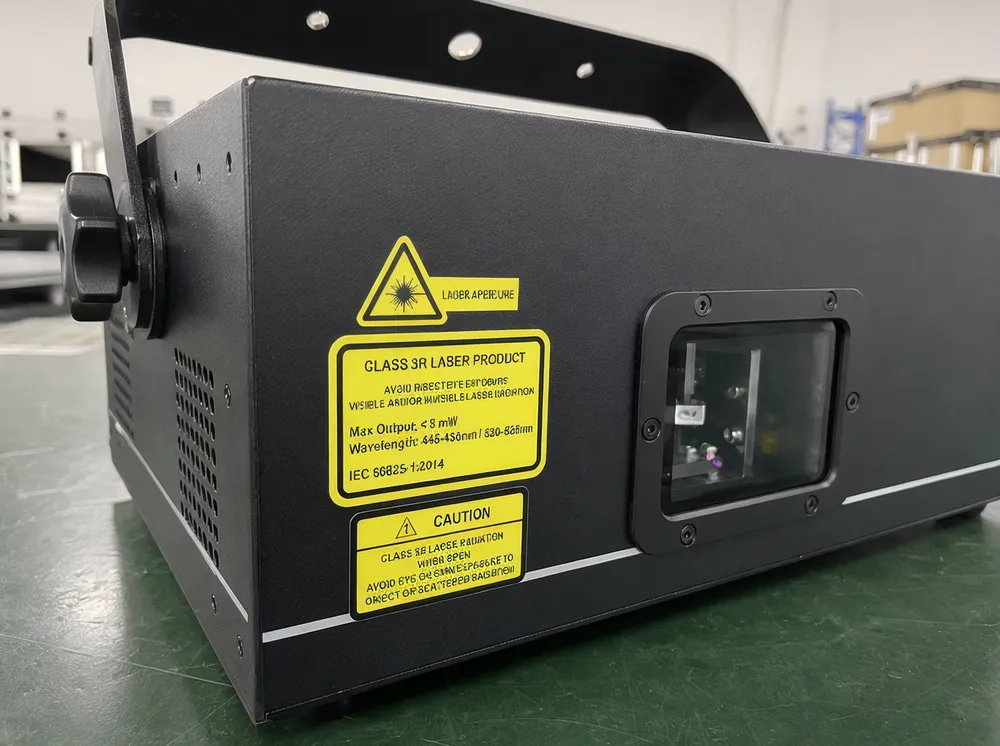

Why Class 3R Matters for Your Import License
The laser safety classification on these hybrid units is Class 3R — accessible power below 5 mW at the aperture in normal operation. This matters because some markets (Australia, certain EU countries) restrict commercial sale of Class 3B and above laser products. Our LED laser DJ lights fall below those thresholds, so your import and retail licensing requirements are simpler.
We specifically designed the hybrid range to stay within Class 3R limits because we know the regulatory pain of importing Class 3B products into strict markets. Our distributors in Australia and Scandinavia specifically asked for this — enough visual impact for the end user, zero licensing headaches for you.
Where LED Laser DJ Lights Fit Among Our DJ Laser Range
If you're evaluating which SKUs from our DJ laser category to stock, here's how the LED laser hybrid positions relative to siblings.
| If You Need… | Product | Why |
|---|---|---|
| Higher laser power + animation quality | RGB Laser Projector DJ Lights | Galvo scanning, 200–500 mW, ILDA compatible — for professional rental and large venues |
| Lowest price point for volume e-commerce | Mini DJ Laser Lights | Compact laser-only units at the impulse-buy price tier |
| Pure laser effects for club installations | Professional DJ Laser Lights | Dedicated high-output laser with DMX, built for nightly use |
| Maximum beam visibility on a budget | Green Laser DJ Lights | Single 532nm wavelength — brightest perceived output per milliwatt |
| Multi-head coverage for wide stages | DJ Laser Bar Lights | Linear array replacing 3–4 individual units per truss section |
| Dual-effect in one fixture (LED + laser) | LED Laser DJ Lights (this page) | Consolidation play — one SKU, two effects, broad market appeal |
If you need
Higher laser power + animation quality
RGB Laser Projector DJ LightsGalvo scanning, 200–500 mW, ILDA compatible — for professional rental and large venues
If you need
Lowest price point for volume e-commerce
Mini DJ Laser LightsCompact laser-only units at the impulse-buy price tier
If you need
Pure laser effects for club installations
Professional DJ Laser LightsDedicated high-output laser with DMX, built for nightly use
If you need
Maximum beam visibility on a budget
Green Laser DJ LightsSingle 532nm wavelength — brightest perceived output per milliwatt
If you need
Multi-head coverage for wide stages
DJ Laser Bar LightsLinear array replacing 3–4 individual units per truss section
If you need
Dual-effect in one fixture (LED + laser)
LED Laser DJ Lights (this page)Consolidation play — one SKU, two effects, broad market appeal
Stocking Strategy
The LED laser DJ hybrid isn't a replacement for dedicated high-power lasers in your lineup. It's a complementary SKU that captures the segment of buyers who want laser effects without committing to a laser-only unit — first-time DJs, small venue operators, e-commerce impulse buyers.
Most of our distribution partners stock LED laser hybrids alongside 2–3 dedicated laser models to cover the full price/performance spectrum.
Explore the DJ Laser Range
Frequently Asked Questions About LED Laser DJ Lights
Can the LED and laser sections operate independently via DMX?
Can the LED and laser sections operate independently via DMX?
Yes. The DMX channel map assigns separate channels to the LED section (color mixing, dimming, strobe) and the laser section (pattern selection, rotation speed, on/off). Your buyer can run only LEDs, only laser, or both simultaneously from their DMX controller. In sound-active and auto modes, both sections respond to audio input together — but DMX gives full independent control.
How does the laser output in a hybrid compare to a standalone laser unit at the same price?
How does the laser output in a hybrid compare to a standalone laser unit at the same price?
The laser module in our LED laser DJ hybrids is a 50–150 mW class — adequate for rooms under 100 m² with light haze. A standalone mini laser at a similar total product price typically runs 100–200 mW because the budget isn't split between two light sources.
The trade-off is clear: you sacrifice some laser power for the dual-effect convenience. For buyers who need maximum laser impact above all else, direct them to our dedicated laser models.
What's the typical failure mode and MTBF on these hybrid units?
What's the typical failure mode and MTBF on these hybrid units?
The most common failure on lower-quality hybrids is laser diode degradation due to shared thermal paths — laser output fades while LEDs continue working. Our thermal isolation design prevents this.
30,000+ hrs
LED section MTBF (70% lumen maintenance)
10,000+ hrs
Laser diode MTBF at rated output
15,000+ hrs
Stepper motor continuous operation
In practical terms: for a mobile DJ using the fixture 6–8 hours per weekend, you're looking at 3–5 years before any component reaches its service life threshold.
Do LED laser DJ lights require a separate laser safety interlock or key switch?
Do LED laser DJ lights require a separate laser safety interlock or key switch?
Class 3R laser products do not require a key switch interlock under EN 60825-1. Our units include a power switch and emission indicator LED as required, but no key lock — reducing end-user complexity.
For markets that require enhanced safety features on any laser product regardless of class, we can add a key switch mechanism on custom orders (MOQ 100 units, adds $0.80 per unit to BOM cost).
What's the minimum order to get OEM packaging on LED laser DJ lights?
What's the minimum order to get OEM packaging on LED laser DJ lights?
30 units per SKU. That includes your logo on the product housing (printed or laser-engraved), custom retail packaging with your artwork, and branded user manual.
We provide packaging design templates in AI/PDF format — send us your brand assets and we handle the layout. First-article sample of custom packaging ships in 7–10 days for your approval before production run.
Start with Samples or Go Straight to Volume
Adding LED Laser DJ Lights to Your Catalog for the First Time?
The proven path: order 2–5 sample units of the configurations you're considering. Test beam quality, build feel, and packaging presentation against your market expectations.
Most new buyers confirm within a week and place a production order.
Samples ship within 5–7 days.
Established Account Expanding Into This Segment?
Send us your target retail price point and monthly volume estimate. We'll recommend the specific model configuration that hits your margin target and confirm pricing at your quantity tier.
Production orders typically deliver in 20–25 days to port.
If you're working against a product launch deadline, let us know the date — we'll confirm whether we can hit it before you commit.
