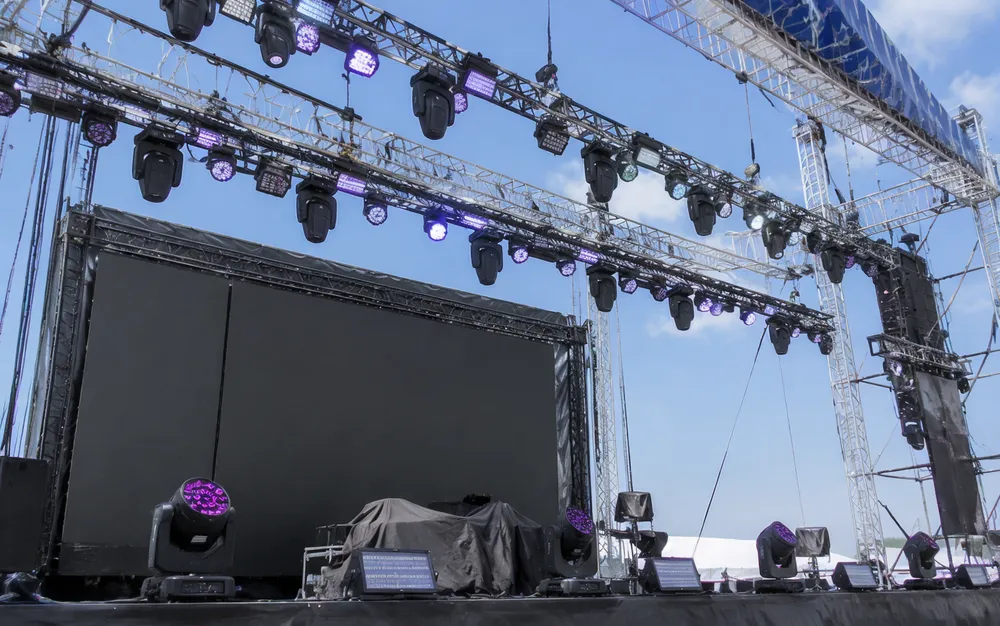

Concert Stage Lighting Engineered for the Road
Moving heads, wash fixtures, and beam lights built to survive 300+ show-days per year — direct from our Guangdong production floor to your inventory.
48-hour burn-in on every fixture before shipping. High-output touring rigs and permanent venue installs.
What Concert Stage Lighting Covers — and Where It Sits in Your Product Line
Concert stage lighting is the category where output, reliability, and rigging compatibility converge under the harshest conditions. We're talking about fixtures that hang on truss at 12 meters, run at full output for 4–6 hours straight, get torn down at 2 AM, trucked 400 kilometers, and re-rigged the next morning. The thermal load, the mechanical vibration from transport, the rapid ambient temperature swings between a climate-controlled arena and an outdoor festival field in August — this is the environment we design for.
What makes concert stage lighting different from general stage lighting? Three things: sustained thermal performance at maximum output, robust mechanical construction that tolerates repetitive rigging cycles, and optical systems designed to cut through haze and long throw distances. Your LED PAR for a hotel banquet doesn't need to survive 200 truck loads per year. Your concert moving head does.
For your business, this category commands the highest per-unit margin in stage lighting. Concert-grade fixtures justify premium pricing because the buyer's downstream customer — rental companies, production houses, touring crews — cannot afford fixture failure mid-show. They pay for reliability insurance built into the hardware. That pricing headroom is your margin opportunity.
Three Design Differentiators
Sustained Thermal Performance
Full output for 4–6 hours continuous without thermal throttling or early LED degradation.

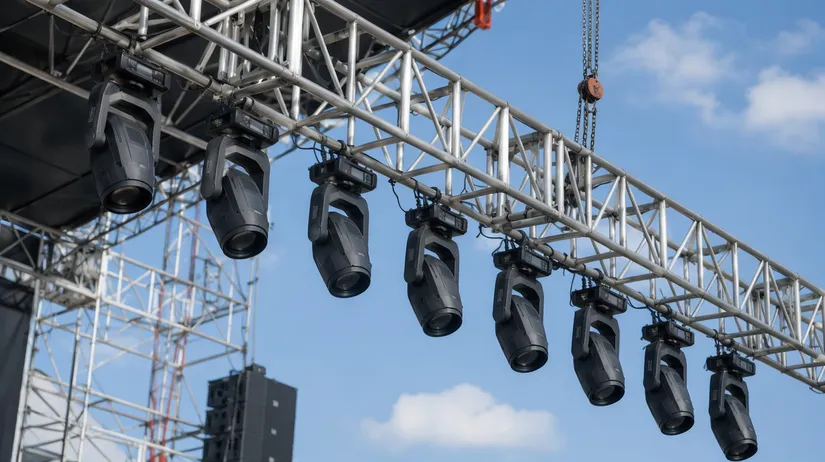

Robust Mechanical Construction
Tolerates repetitive rigging cycles — 200+ truck loads per year without housing fatigue or motor drift.
Long-Throw Optical Systems
Designed to cut through haze at distance — tight beam control from 12+ meter rigging heights.
Highest per-unit margin in stage lighting
Concert-grade fixtures justify premium pricing because your downstream customers — rental companies and production houses — cannot afford mid-show failure. They pay for reliability insurance built into the hardware. That pricing headroom is your opportunity.
Dramatic Stage Lighting: Optical Performance That Sells Itself
Concert lighting is dramatic stage lighting by definition — high-contrast beam work, saturated color washes, rapid movement, and tight beam angles that punch through atmospheric effects. The dramatic impact comes from optical precision, not from cranking wattage.

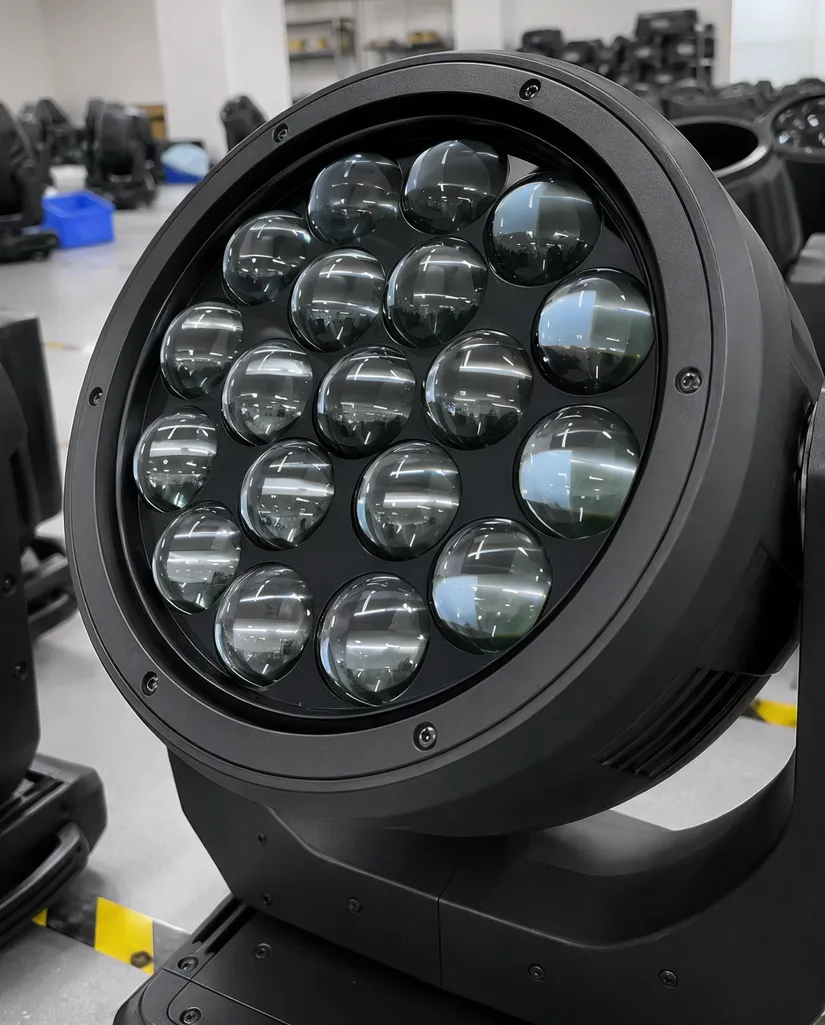

Multi-Element Glass Lens Arrays
Our concert fixtures use multi-element glass lens arrays rather than single-piece plastic optics. Glass holds its optical clarity after years of thermal cycling — plastic lenses develop micro-crazing from UV and heat exposure within 18–24 months of heavy use, which softens the beam edge and reduces throw distance.
We switched fully to glass on concert-grade optics in 2018 after seeing too many plastic-lens returns from Middle Eastern rental fleets operating in extreme heat.
Beam Angles
2.5° spot — 45° wash
Motorized zoom on moving head models
Color Rendering
CRI 90+ wash
Full CMY color mixing on beam/spot units
Protocol Support
DMX512 + RDM
Integrates into any console ecosystem — no protocol adapters needed
Optic Material
Glass (since 2018)
No micro-crazing under sustained thermal cycling
The Commercial Point
Dramatic stage lighting capability is the feature set your rental customers use to justify premium day-rates to their clients. Fixtures that produce clean, punchy, dramatic output earn their keep on the truck. Fixtures that look dull on stage get replaced — and the replacement order goes to whoever can ship faster.
Technical Specifications — What Goes on Your Comparison Sheet
| Parameter | Moving Head Beam/Spot | Moving Head Wash | LED Blinder/Strobe |
|---|---|---|---|
| LED Source | 380W–480W white LED or equivalent lamp | 19×40W / 37×20W RGBW LEDs | 2×100W–4×100W COB LEDs |
| Beam Angle | 2.5°–8° (spot), zoom to 18° | 6°–60° motorized zoom | 15°×60° asymmetric |
| Color System | CMY + CTO + color wheel (13 dichroic filters) | RGBW per-pixel mixing | RGBW or tunable white |
| Pan/Tilt | 540° / 270°, 16-bit resolution | 540° / 270°, 16-bit resolution | N/A (static mount) |
| Control | DMX512 / RDM / Art-Net (optional) | DMX512 / RDM / Art-Net (optional) | DMX512 / stand-alone |
| IP Rating | IP20 (indoor), IP65 (outdoor variant) | IP20 (indoor), IP65 (outdoor variant) | IP65 standard |
| Housing | Die-cast aluminum, powder coated | Die-cast aluminum, powder coated | Extruded aluminum body |
| Weight (typical) | 21–28 kg | 12–18 kg | 5–9 kg |
| Cooling | Forced-air, variable-speed fans with temperature feedback | Forced-air, variable-speed fans | Passive + convection |
| Operating Temp | -20°C to +45°C | -20°C to +45°C | -20°C to +45°C |
| Certifications | CE, FCC, RoHS, IP65 (outdoor models) | CE, FCC, RoHS, IP65 (outdoor models) | CE, FCC, RoHS, IP65 |
Specifications shown are standard configurations for this product range. Actual parameters vary by model and customization. Contact us for complete data sheets with photometric charts.

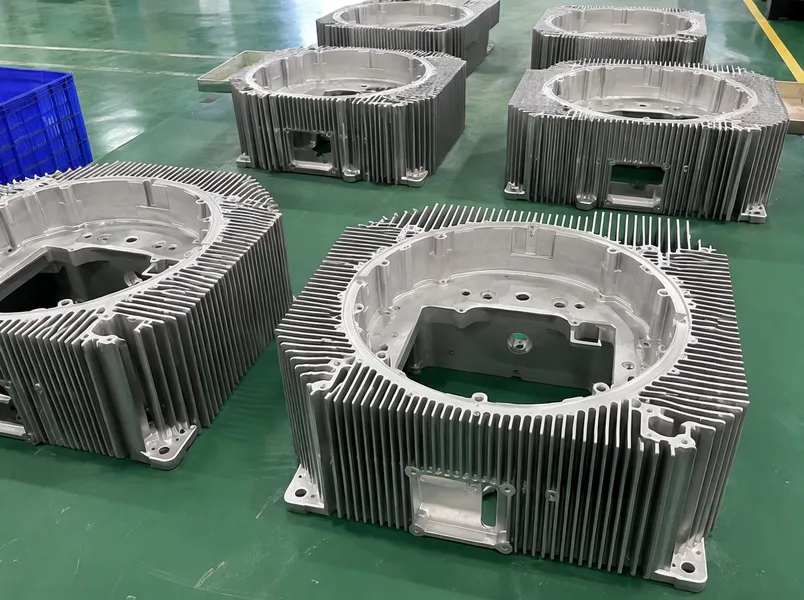

In-House Thermal Engineering
Our die-cast aluminum housings come off our own CNC and die-casting lines — we machine the heatsink fin geometry per fixture model to match its specific thermal load. A 480W moving head generates substantially more heat than a 200W unit, and the fin density, spacing, and surface area need to reflect that. Generic housings don't cut it at concert output levels.
Get Detailed Specs & CAD Rigging Data
Market Segments Where Concert Stage Lighting Generates Repeat Business

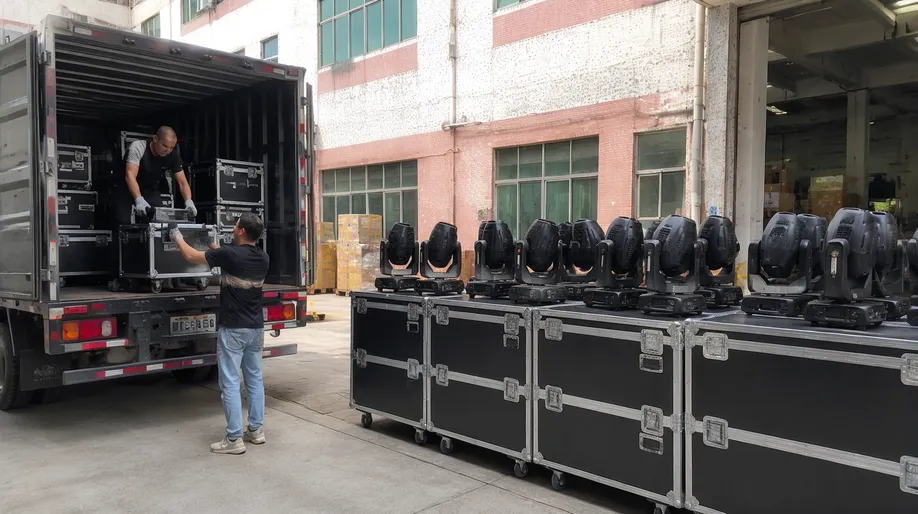

Touring Production Companies
Bread-and-Butter SegmentProduction companies running 80–200 shows per year need fixture fleets that survive constant load-in/load-out cycles. They buy in batches of 24–96 units per fixture type, reorder when they add trucks or replace end-of-life stock. Your value proposition: consistent supply, fast replacement fulfillment, and fixtures that don't rack up repair hours between shows.
Typical order pattern: Initial fleet purchase of 48–100 units, then rolling replacements of 12–24 units annually as rigs expand or fixtures reach 3–4 year service life.

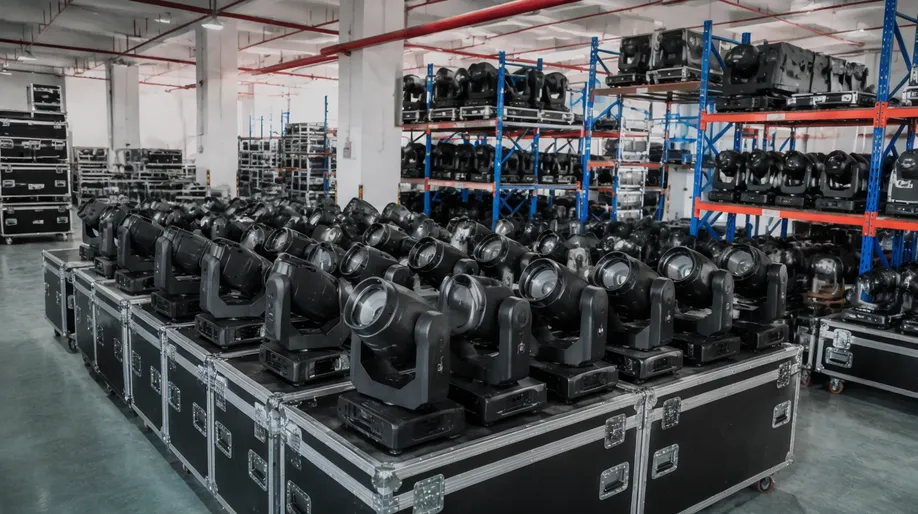

Festival & Event Rental Inventories
High ROI CategoryRental houses serving festival circuits carry concert-grade fixtures because the hire rate per fixture per day justifies the upfront cost within a single festival season. A moving head that rents at $50–80/day and works 60+ days per summer pays for itself in one season — the next four years are pure margin. Rental companies buy concert-grade because it's the most profitable inventory category per square meter of warehouse space.

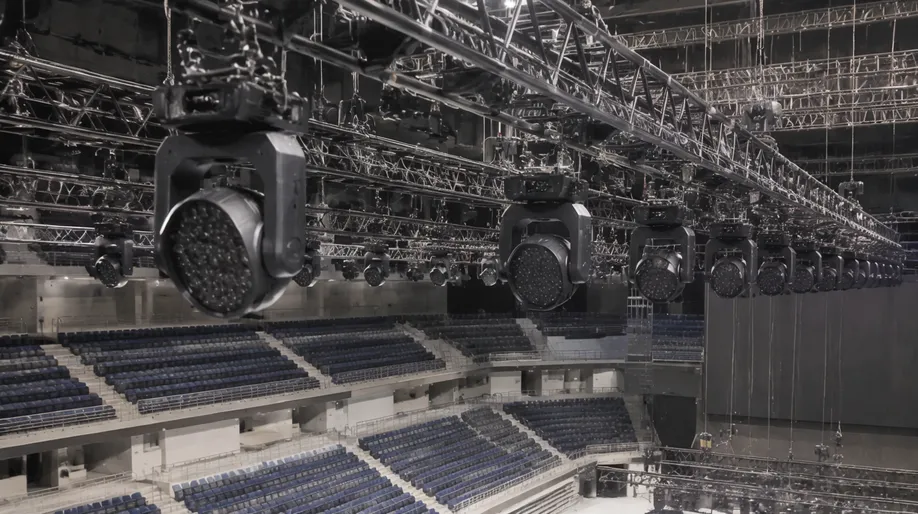

Permanent Venue Installations
Arenas & Concert HallsVenues purchasing for permanent install need the same optical performance but prioritize longevity over portability. They're buying 50,000-hour LED life expectancy and low-maintenance mechanical assemblies over lightweight construction. Installation contractors spec these fixtures into capital projects and need technical documentation, rigging load calculations, and compliance certifications for building permits.
This segment moves slower — 6–12 month project cycles — but the order values are substantial. We've supplied complete venue rigs of 200+ fixtures for arena projects in Southeast Asia and the Middle East.

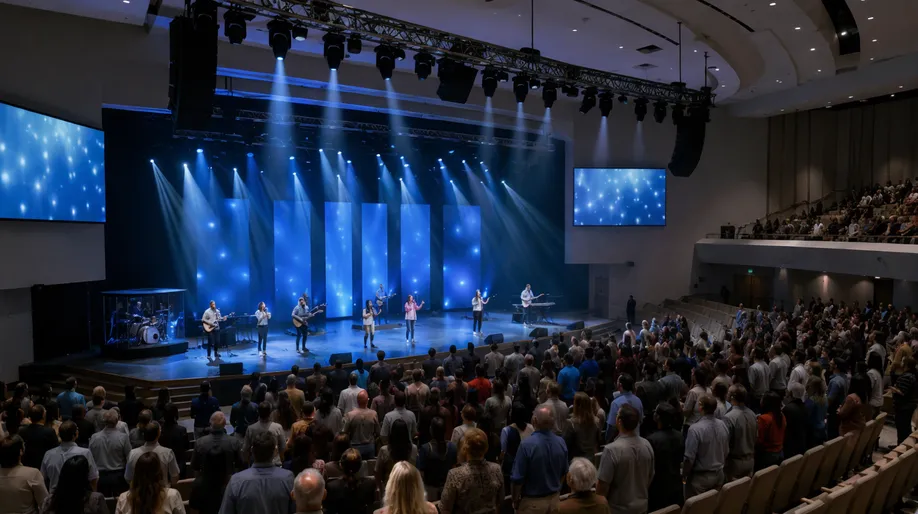

Houses of Worship
Large-Format ServicesMega-churches and large worship facilities increasingly spec concert-grade fixtures for their broadcast-quality production. The requirement profile mirrors arenas: long throw, clean beam optics, quiet operation for the audience proximity, and DMX integration with media servers. This segment buys in quantities of 30–80 fixtures and upgrades on 5–7 year cycles.
How Concert Fixtures Come Off Our Line Process Details That Affect Your Warranty Rate
Concert-grade production starts with tighter incoming material controls than our entertainment-grade lines. LED chip binning is narrower — we hold forward voltage within ±0.1V and color temperature within ±100K across a production batch. This matters when your customer hangs 36 identical wash fixtures side by side on a truss: visible color inconsistency between units is the fastest way to generate a complaint.

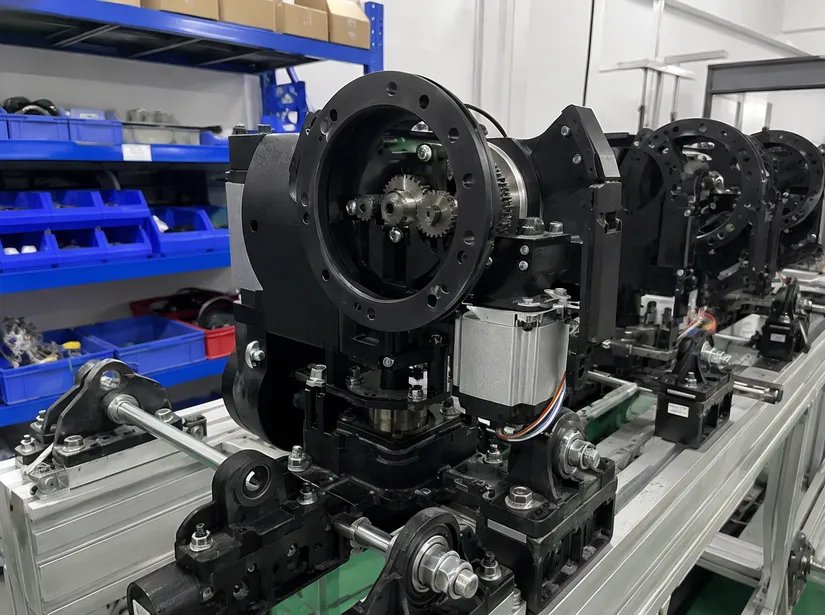

The pan/tilt motor assemblies on our concert moving heads use precision stepper motors with steel-gear reduction rather than the plastic gearboxes common in economy fixtures. Plastic gears wear and develop backlash after 6–8 months of daily touring use — the fixture starts overshooting positions, which the lighting designer notices immediately. Our steel-gear assemblies maintain positioning accuracy through 10,000+ operating hours.
We test pan/tilt assemblies on a dedicated endurance rig — continuous movement cycling for 72 hours before the assembly gets cleared for fixture integration.
Vibration-Proof Wiring Harnesses
Wiring harnesses inside concert fixtures are strain-relieved at every connection point and use locking connectors. A fixture that travels in a truck experiences constant vibration — any connection that relies on friction fit alone will eventually work loose.
We've added locking clips to every internal connector since 2020 after root-cause analysis on a batch of field returns traced back to vibration-loosened signal cables.
48-Hour Full-Output Burn-In
We run concert fixtures at full output — maximum brightness, maximum motor speed, continuous operation. A fixture that's going to develop a capacitor fault or a thermal management issue shows symptoms within this window.
We catch approximately 1.5–2% of units during burn-in that would otherwise fail within the first 200 operating hours in the field. Those units get diagnosed, repaired, and re-tested before they ever reach your warehouse.
Your Bottom Line on Warranty
Warranty return rates on our concert-grade fixtures run below 0.8% in the first year. For a rental company working fixtures hard on 200+ show-days, that translates directly into fleet uptime and your reputation for supplying reliable hardware.
OEM/ODM Customization for Concert Stage Lighting
Concert fixtures carry the most customization demand in our range — your customers have opinions about housing color, connector placement, firmware features, and optical configurations.
What We Customize
| Dimension | Options | MOQ Impact |
|---|---|---|
| Housing color | Standard black/white, any RAL color on request | RAL colors: 100-unit minimum per color |
| Logo and branding | Laser-engraved or silk-screened, your logo on housing and boot screen | From 30 units |
| Connector type | Neutrik powerCON/XLR (standard), Seetronic, or Chinese-equivalent connectors | No MOQ impact for stocked connectors |
| Lens angle options | Custom beam angle selection from available lens sets | No MOQ impact |
| Firmware customization | Custom DMX channel layouts, preset programs, boot logo, lockout features | 50-unit minimum |
| Wireless DMX module | Factory-integrated CRMX, W-DMX, or Chinese wireless module | 30-unit minimum |
| IP rating upgrade | IP65 sealed housing with marine-grade connectors for outdoor variants | 50-unit minimum |
| Packaging/case | Flight case, foam-insert carton, or road case with your branding | 30-unit minimum |
What We Don't Customize
For production-line efficiency reasons, we do not modify:
- Core optical path geometry on existing tooling
- LED chip brand substitution mid-batch
- Fundamental housing shape changes without tooling investment
If you need a fully new housing design, that's an ODM project — we've done it, but it requires tooling commitment and a 4–6 month development cycle.
Branding Only
Existing model + your branding
20–25 days
Modified Config
Connector/lens/wireless swap
25–30 days
New Firmware
Programming + validation
+7–10 days
Full ODM
Concept to mass production
4–6 months
We'll confirm feasibility within 48 hours
Regulatory & Market Access
Compliance and Import Documentation
Concert stage lighting has specific compliance requirements depending on your import market. We handle documentation and testing upfront so your shipments clear customs without delay.
Certifications on File for This Product Range
EN 60598-2-17 for luminaires, EMC directive EN 55015/EN 61547 — required for EU market entry.
Required for US/Canada market. Covers radiated and conducted emissions from DMX and wireless modules.
Directive 2011/65/EU — lead-free solder, halogen-free substrates, full material declarations available.
Independently tested per IEC 60529 on applicable outdoor models. Test reports available for your end-customer's installation contractor.
Quality management system covering our full production process — from incoming component inspection through final optical calibration and packing.
Additional Market Certifications
For markets requiring additional certifications (ETL/UL for North America, SAA for Australia, KC for Korea), we support testing submissions through our accredited lab partners.
Full Documentation Package With Every Shipment
Test reports, certificates of conformity, material safety data sheets, and declaration of origin for preferential tariff treatment under applicable trade agreements.
Logistics & Freight
Packaging and Container Loading — Your Landed Cost Calculation
Concert fixtures ship in individual molded-foam cartons with a reinforced outer master carton. Moving heads include a molded foam insert that cradles the fixture at the yoke and base — the same insert doubles as the storage position for the fixture's safety cable and power connector.

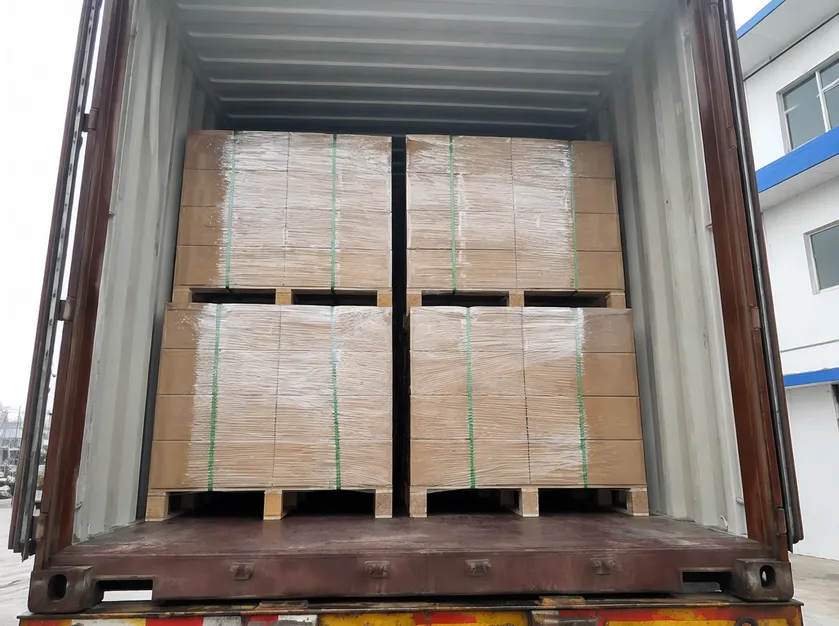

Container Loading — Typical Configurations
| Fixture Type | Units per 20GP | Units per 40HQ |
|---|---|---|
| Moving Head Beam (medium frame) | 80–96 | 180–210 |
| Moving Head Wash (compact frame) | 120–140 | 260–300 |
| LED Blinder/Strobe | 200–240 | 450–520 |
| Mixed load (common order split) | Calculated per order | Calculated per order |
Stacking & Compression Rated
We palletize for container transport with stacking tested to 4-high for ocean shipping. Carton compression strength rated for the bottom pallet in a full container stack. We switched carton suppliers in 2021 specifically for better compression ratings after seeing crush damage on bottom-layer cartons on a shipment to Brazil that hit rough seas.
Shipping Options
-
FOB Shenzhen/Guangzhou — you arrange freight
-
CIF to your port — we handle freight booking and insurance
-
Door-to-door DDP — full delivery including customs clearance (available for most markets)
Flight-Case Packaging
We offer branded road cases as an add-on or as the primary packaging for buyers who sell directly to rental companies. The case becomes part of the product value proposition for your downstream customer.
Get a Container Loading Plan & Freight Quote
Tell us your order size and destination port — we'll calculate the optimal loading configuration and provide a landed cost estimate.
Frequently Asked Questions Concert Stage Lighting
What IP rating do I need for outdoor concert stage lighting?
What IP rating do I need for outdoor concert stage lighting?
IP65 minimum for fixtures exposed to rain, dust, and fog-machine residue at outdoor festivals. IP65 means full protection against dust ingress and water jets from any direction — enough for open-air stages with typical weather exposure.
For fixtures permanently mounted in coastal environments or venues with washdown cleaning requirements, IP67 provides additional immersion protection. We offer both ratings across our concert range.
Our IP65 outdoor housings use marine-grade cable glands and silicone gasket sealing on all optical apertures.
How does LED concert stage lighting compare to lamp-based fixtures for beam effects?
How does LED concert stage lighting compare to lamp-based fixtures for beam effects?
LED concert fixtures have overtaken discharge lamps in most applications. The practical comparison:
LED Advantage
- •Full output instantly — no lamp strike warm-up
- •50,000-hour life expectancy
- •No lamp replacement costs ($150–400 per change eliminated)
Discharge Lamp
- •2,000-hour lamp life
- •Single-point optical character for ultra-tight beams
- •$150–400 per lamp change cost
For your rental business, that's the difference between a fixture that generates revenue every day versus one that sits in the repair bay waiting for a new lamp. The one remaining advantage of discharge sources is the single-point optical character for ultra-tight beam effects — our 380W and 480W LED engines now match this with collimated LED arrays that produce clean, gobo-projectable spots down to 2.5° beam angle.
What's the minimum order quantity for custom-branded concert stage lighting?
What's the minimum order quantity for custom-branded concert stage lighting?
30 units per model — that's our standard OEM threshold.
At 30 units, you get:
- ✓Your logo on the housing
- ✓Your branding on the firmware boot screen
- ✓Your packaging artwork on the carton
No container-load commitment required. Most buyers testing a new product line or entering a new market segment start at 30–50 units to validate customer acceptance before scaling.
How long do concert stage lighting fixtures last in a heavy-use touring environment?
How long do concert stage lighting fixtures last in a heavy-use touring environment?
Expect 3–5 years of frontline touring service (200+ shows/year) before fixtures move to less demanding applications like installs or B-stock inventory.
LED source life is rated at 50,000 hours, which is rarely the limiting factor — mechanical wear on pan/tilt assemblies and connector fatigue from repeated rigging cycles determine practical service life.
Our steel-gear motor assemblies and strain-relieved wiring harnesses are designed to push that toward the upper end of the range.
The 48-hour burn-in test we run on every unit specifically accelerates early-life failure modes so they don't surface during your customer's first touring season.
What DMX channel modes are available on GDMonkey concert fixtures?
What DMX channel modes are available on GDMonkey concert fixtures?
Standard configurations include:
Simplified mode — straightforward console programming for quick deployment
Extended mode — per-pixel LED control, fine positioning, and macro functions
Touring mode — optimized for busking-style operation
Custom DMX channel layouts are available on orders of 50+ units — if your customer base works with a specific console brand or programming workflow, we configure channel assignments to match their expectations out of the box.

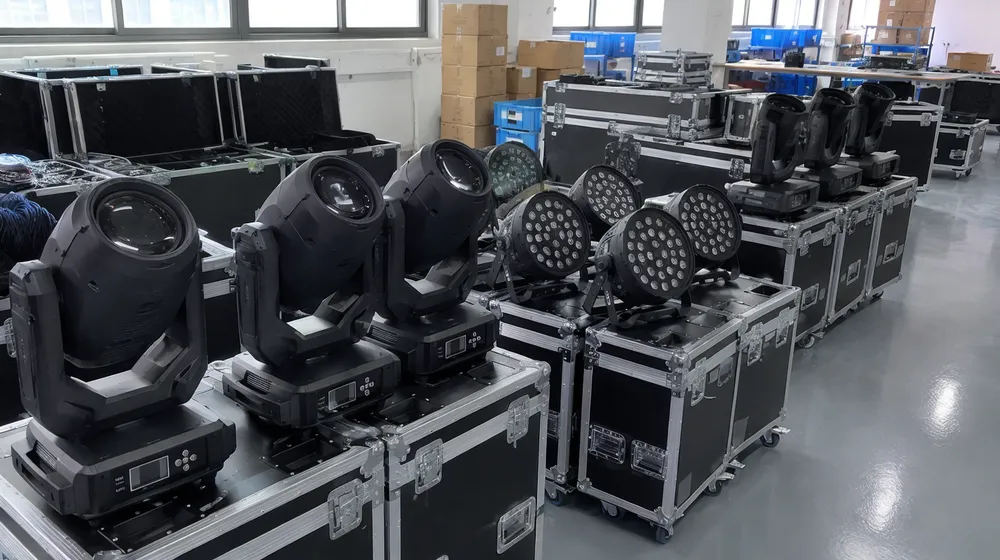

Start With a Sample Order
Most buyers evaluating concert stage lighting for their inventory begin with 2–5 sample units to confirm build quality, optical output, and DMX behavior firsthand. We ship samples within 3–7 days of order confirmation.
Send us your requirements — target fixture types, quantities, customization needs, destination market — and our team will respond with a spec recommendation and quotation within 48 hours.
Competitive benchmarking: If you have a competitor product you're currently sourcing and want us to match or improve on it, ship us a sample unit or send photos and specs. We'll reverse-engineer the cost structure and show you where we can improve performance or reduce your landed cost.
